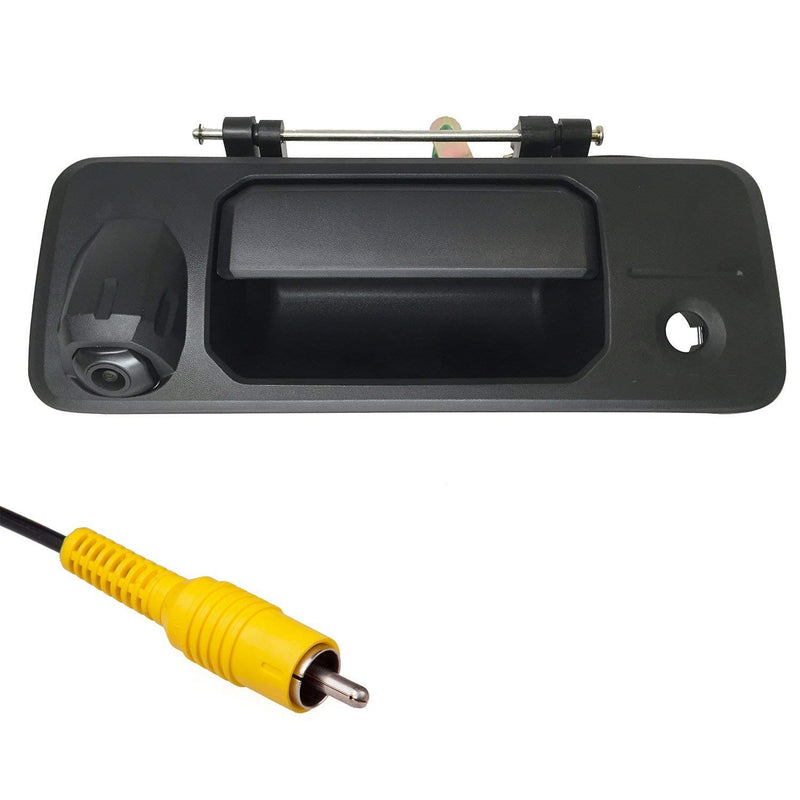

Toyota Tundra Black Tailgate Handle with Backup Camera 2014+
Tundra Tailgate with Backup Camera
For use with:
- Toyota Tundra (Years 2014+)
This is an aftermarket tailgate and camera, not OEM. If you plan to install this in a factory radio you most likely will need another connector( not provided).
This camera connects to any 12V power source. For example, if you wanted the camera to always be on, you can connect it to a 12v source that is on all the time, or if you only want it when you reverse you can connect it to the reverse tail lights.
Comes with video and power extension cable, 24 feet.

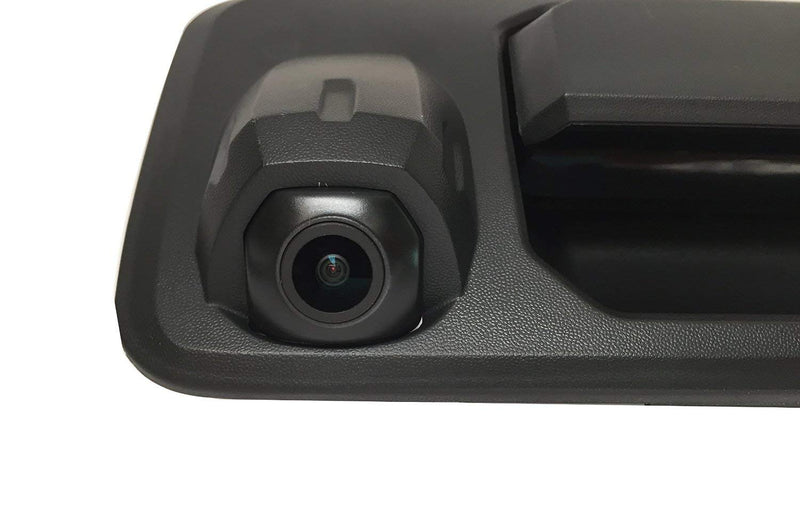

- Image sensor : 1/3" Sony CCD Chip
- Signal System : NTSC/PAL
- Effective Pixel : 728 x 582
- Minimum Illumination : 0.5 Lux
- Electronic Shutter : 1/50 to 1/100,000 seconds
- Resolution : 600 TV lines
- Angle : 170 Degree

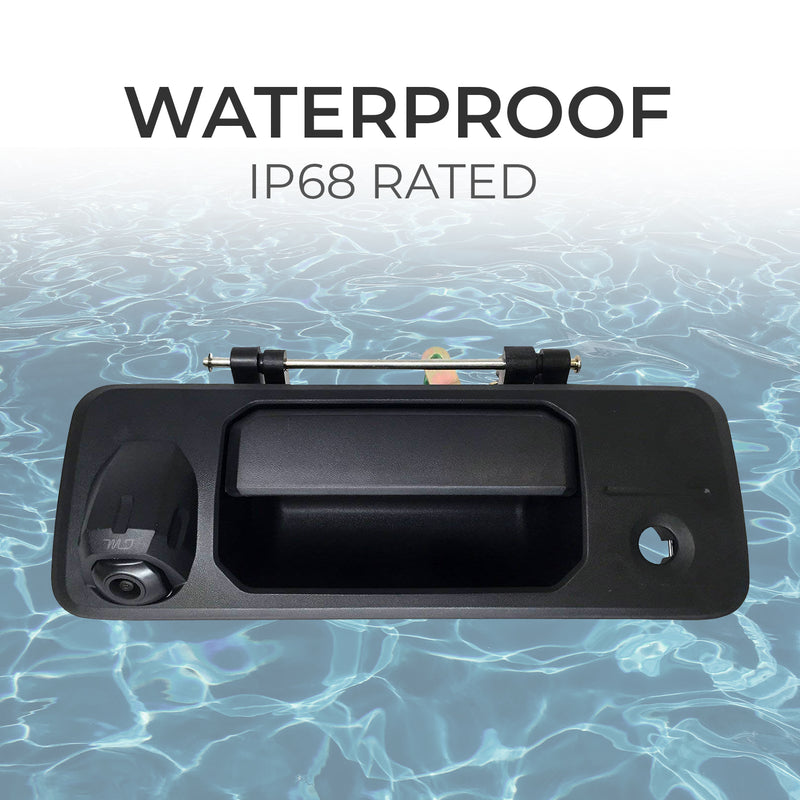

- Waterproof Rate : IP68
- Power : DC 12V
- Video Cable: 8 Meters ( 24 feet)
-Before purchasing check the back of your Monitor/Screen that you have a Yellow RCA input for easy installation.
-Installation is still possible without the Yellow RCA, however it is much more difficult and will require a professional to splice in the Video In signal.
