Master Tailgaters  |  SKU: MT-FF09C

Ford Flex (2009-2012) Replacement Ford Emblem with Backup Camera

$149.99 $210.99

Description

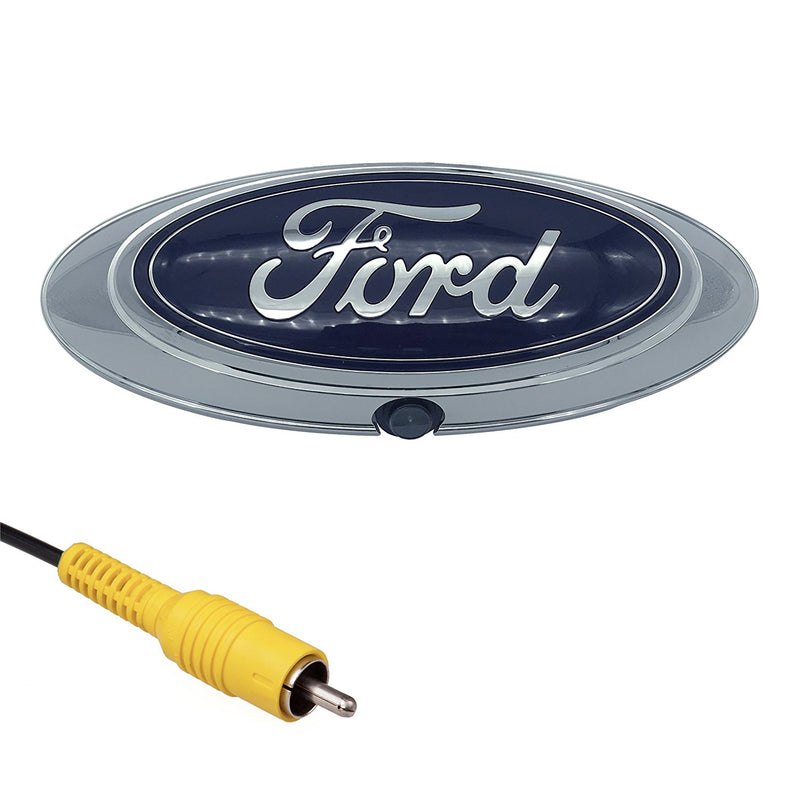

Master Tailgaters Ford Flex 2009-2012 Ford Emblem WITH Backup Reverse Camera (Full Color Camera)

COLOR: Chrome

For use with:

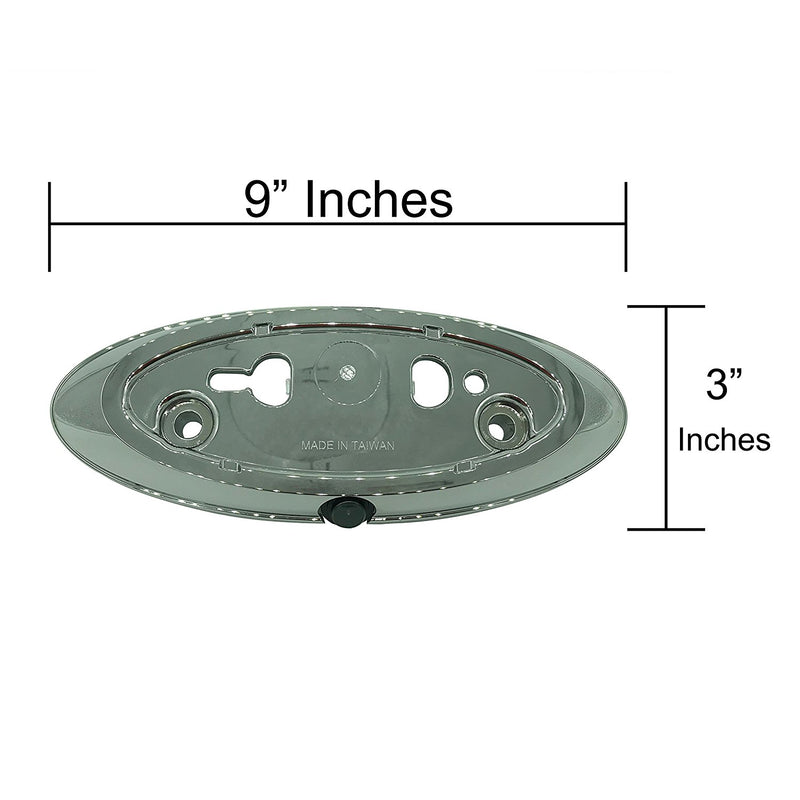

Ford Flex 2009-2012 with 9 inch blue oval in the center of the tailgate (measure oval before purchasing)

Description:

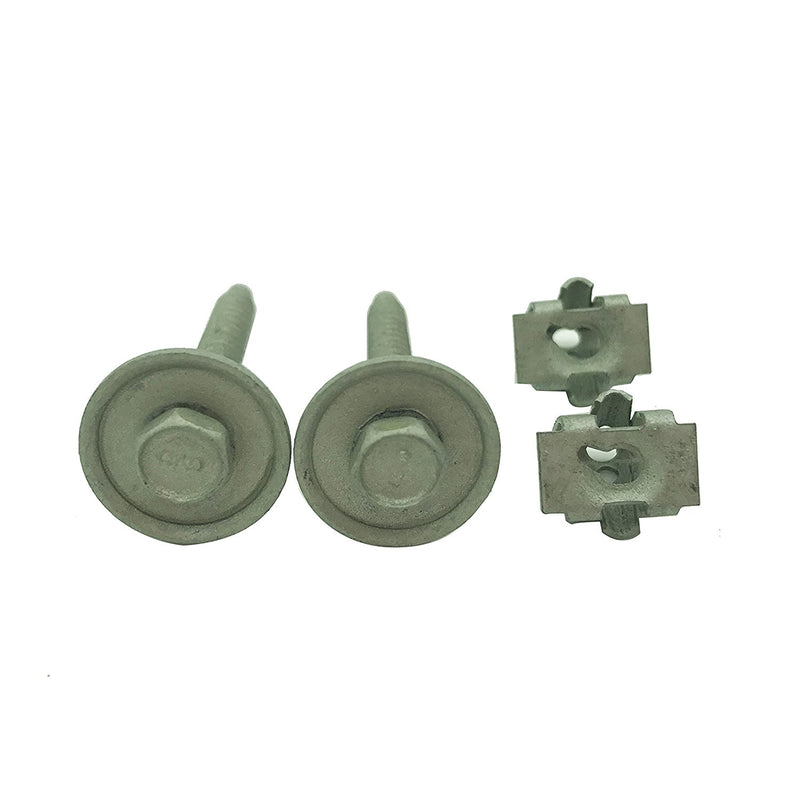

This is an aftermarket emblem and camera, not OEM. For the power supply, you can connect it to any 12V power source. For example, if you wanted the camera to always be on, you can connect it to a 12v source that is on all the time, or if you only want it when you reverse you can connect it to the reverse taillights. Includes video and power extension cable, 8 Meters. Includes genuine Ford Mounting Screws and Clips.

Camera Specs:

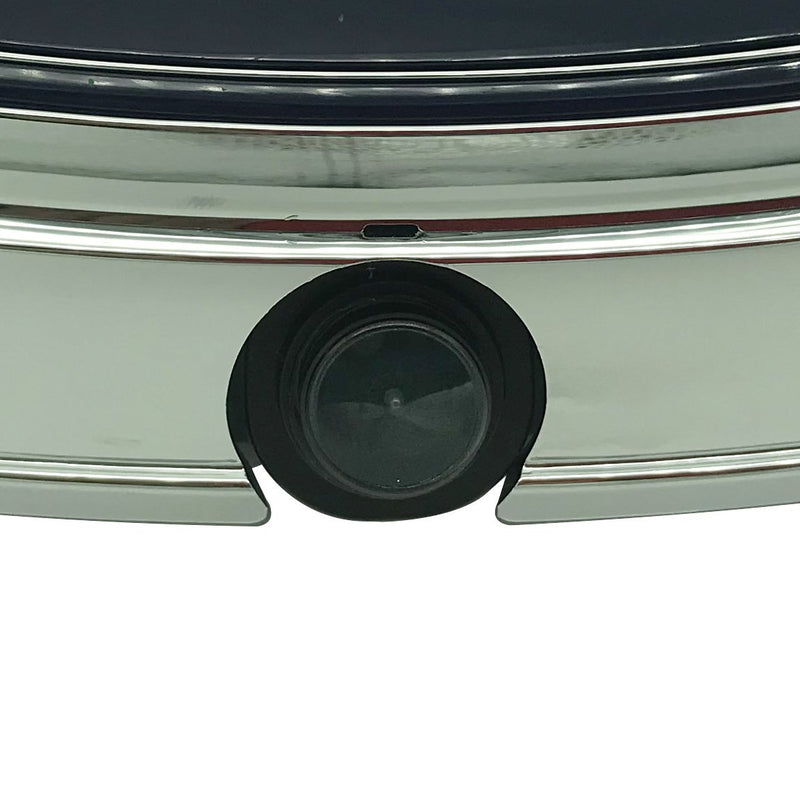

  • Sensor: ¼” On-Semi (USA) CMOS Active Pixel Array, Lens: Nidec (Japan) (Glass + Plastic)
  • Minimum Illumination : .1 Lux light sensitivity
  • Signal System : NTSC/PAL
  • Effective Pixel : NTSC: 728 x 582, PAL: 728 x 512
  • Video Output : 1.1Vp-p 75 Ohm
  • Electronic Shutter : 1/50 to 1/100,000 seconds
  • Resolution : 600 TV lines
  • Angle : 170 Degree
  • Waterproof Rate : IP68
  • Current Consumption : 120mA Max.
  • Power : DC 12V
  • Cable Length : Video Cable: 8M

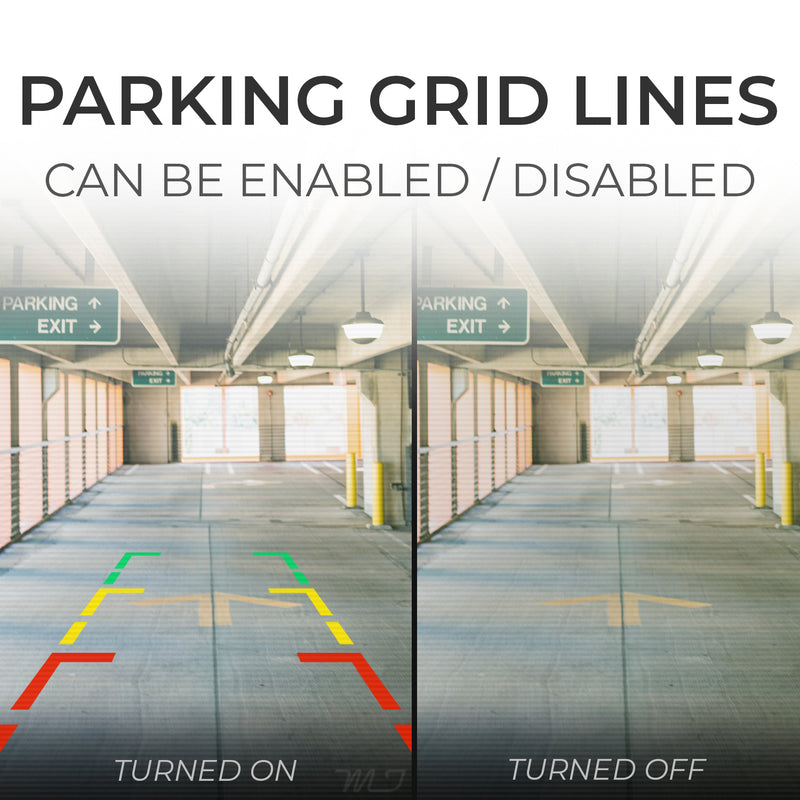

  • Parking Grid Lines: Included with option to disable

Attention!!!:
-Before purchasing check the back of your Monitor/Screen that you have a Yellow RCA input for easy installation.


This tailgate handle is not recommended to be installed with Factory Navigation/Monitor units. It is possible but requires professional installation.



BACKED BY A 2 YEAR NO QUESTIONS ASKED WARRANTY!!!

Installation Instructions
