Chevrolet C/K 1500 (1988-2000) Chrome Replacement Tailgate Bezel with Backup Camera


SALE $147.99 MSRP $167.99

local_shipping  FREE SHIPPING      verified_user 2 YEAR WARRANTY

Customer Reviews

Based on 3 reviews Write a review

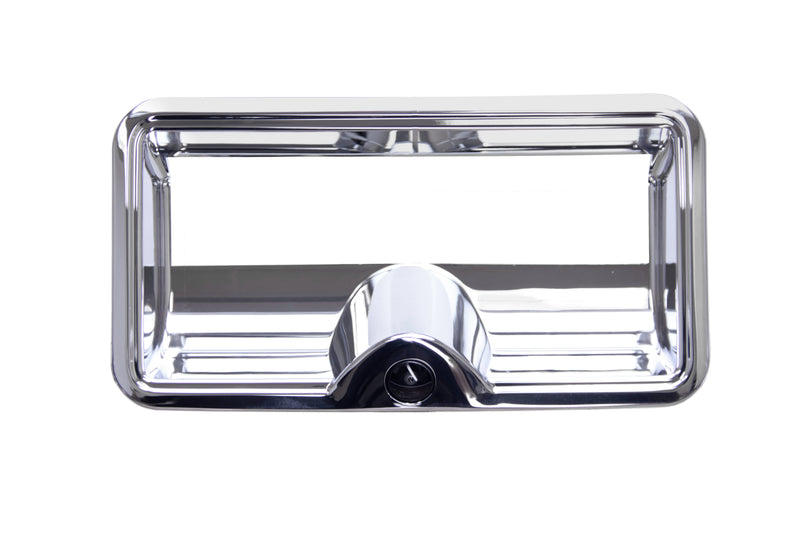

Master Tailgaters Replacement for Chevrolet C/K 1500 (1988-2000) Chrome Tailgate Bezel with Camera

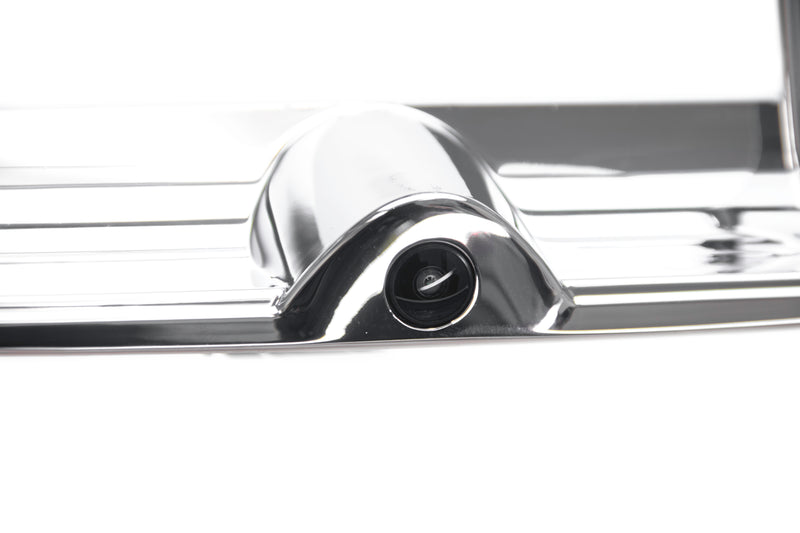

Tailgate WITH Backup Reverse Camera (Full Color Camera)

COLOR: Chrome

For use with:
Chevrolet C/K 1500 (1988-2000)

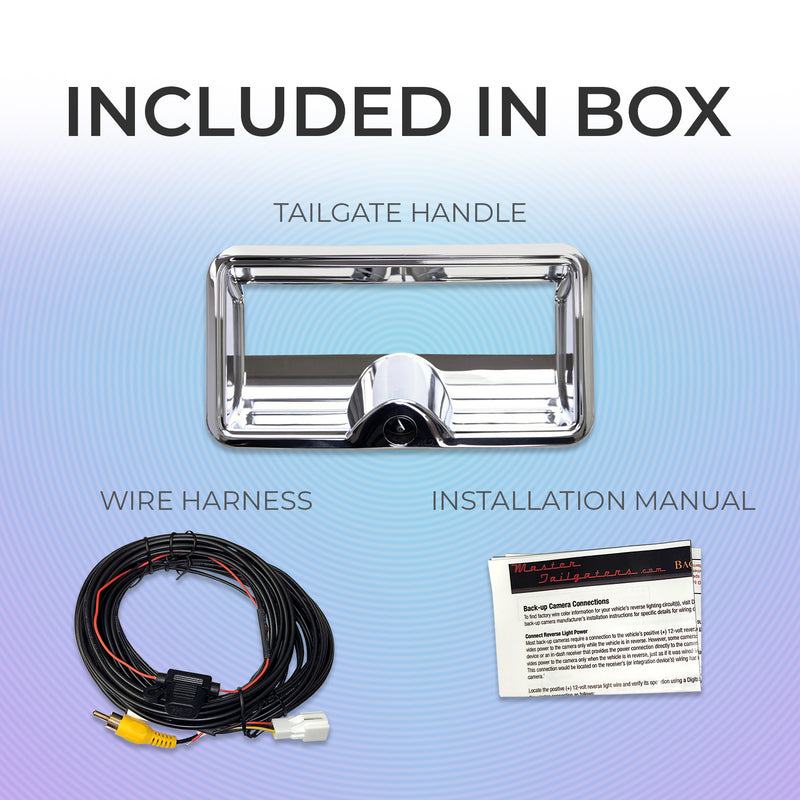

This is an aftermarket tailgate and camera, not OEM. For the power supply, you can connect it to any 12V power source. For example, if you wanted the camera to always be on, you can connect it to a 12v source that is on all the time, or if you only want it when you reverse you can connect it to the reverse taillights. Includes video and power extension cable, 8 Meters.

Note: This is for the Tailgate Bezel only. Please use your existing handle with this Tailgate Bezel.

Camera Specs:

  • Sensor: ¼” On-Semi (USA) CMOS Active Pixel Array, Lens: Nidec (Japan) (Glass + Plastic)
  • Minimum Illumination : .1 Lux light sensitivity
  • Signal System : NTSC/PAL
  • Effective Pixel : NTSC: 728 x 582, PAL: 728 x 512
  • Video Output : 1.1Vp-p 75 Ohm
  • Electronic Shutter : 1/50 to 1/100,000 seconds
  • Resolution : 600 TV line

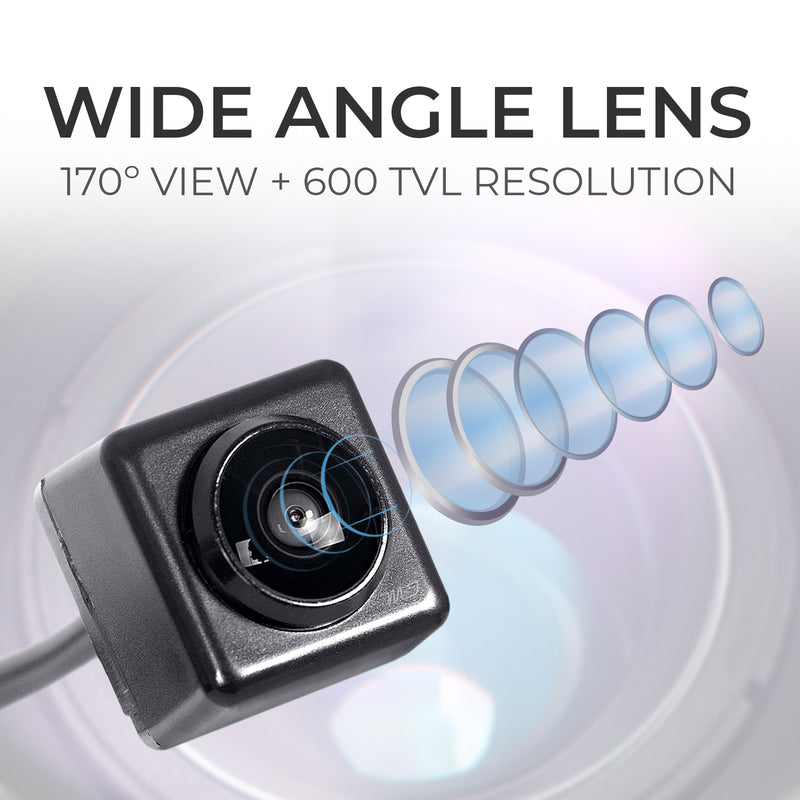

  • Angle : 170 Degree

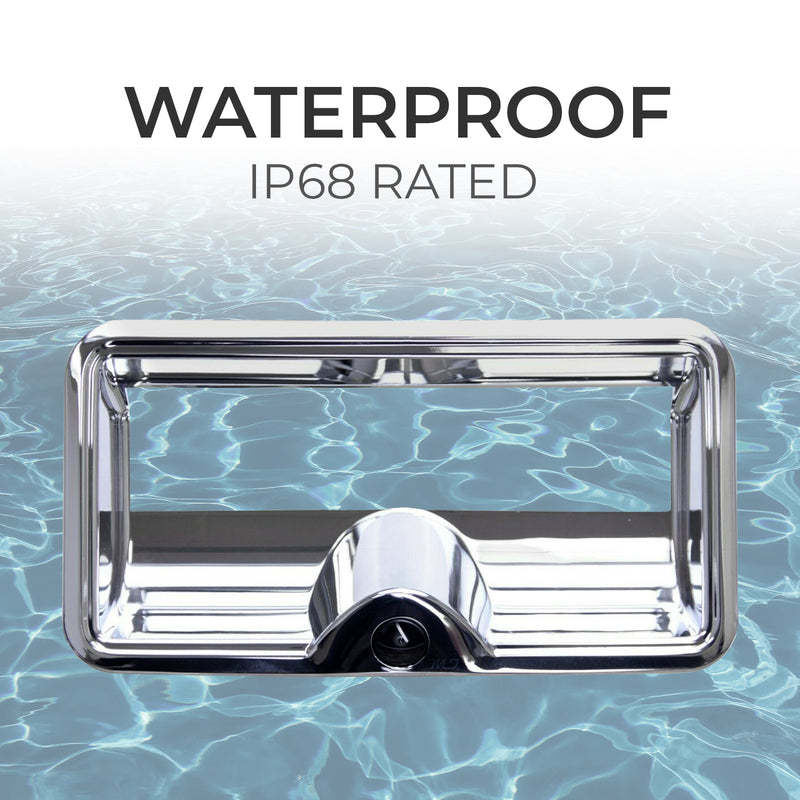

  • Waterproof Rate : IP68
  • Current Consumption : 120mA Max.
  • Power : DC 12V

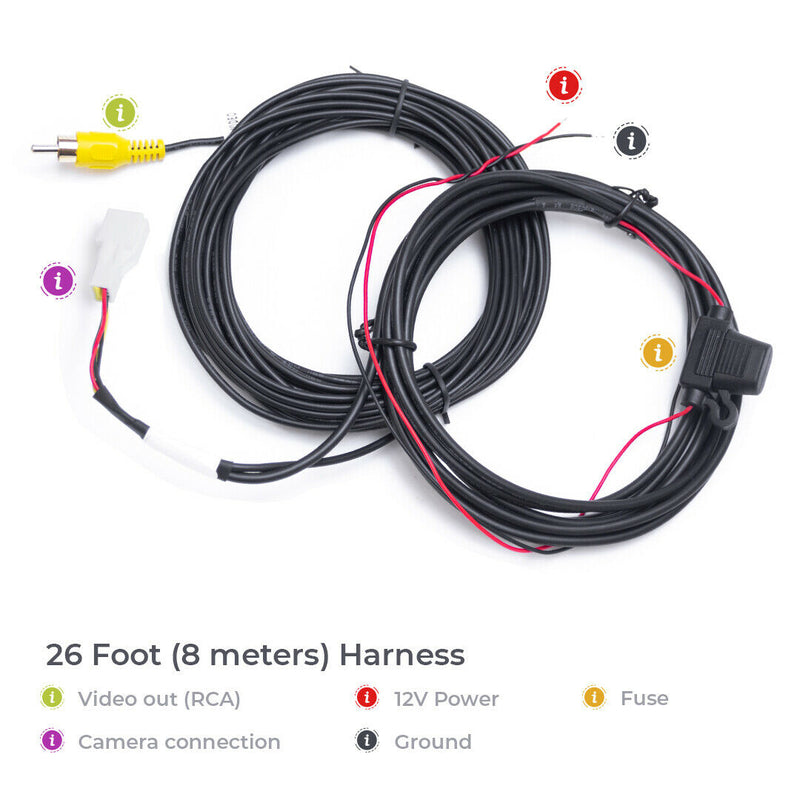

  • Cable Length : Video Cable: 8M

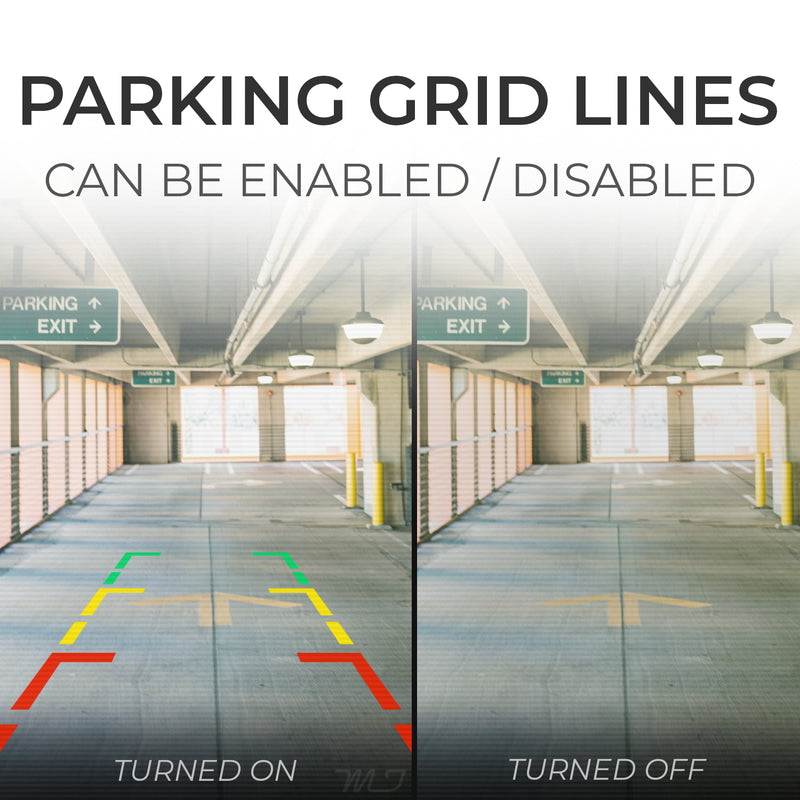

  • Parking Grid Lines: Included with option to disable

-Before purchasing check the back of your Monitor/Screen that you have a Yellow RCA input for easy installation.
This tailgate handle is not recommended to be installed with Factory Navigation/Monitor units. It is possible but requires professional installation.



[FITS]: Chevrolet C/K 1500 (1988-2000)
[RESOLUTION]: 600 TV Lines
[IMAGE SENSOR]: ¼” On-Semi (USA) CMOS Active Pixel Array, Lens: Nidec (Japan) (Glass + Plastic), Lux: .1 Lux light sensitivity
[ANGLE]: Wide View 170 Degrees - Clearly see your Trailer Hitch!
[Warranty]: This item is backed by a 2 year manufacturer warranty
