Black Metal Tailgate Handle with Backup Camera Replacement for Ford F150, F250, F350, F450, F550 2005-2016

SKU: MT-F05B-M

$99.99

local_shipping  FREE SHIPPING      verified_user 3 YEAR WARRANTY

Master Tailgaters Black Metal Tailgate Handle with Backup Camera Replacement for Ford F150, F250, F350, F450, F550 2005-2016

COLOR:

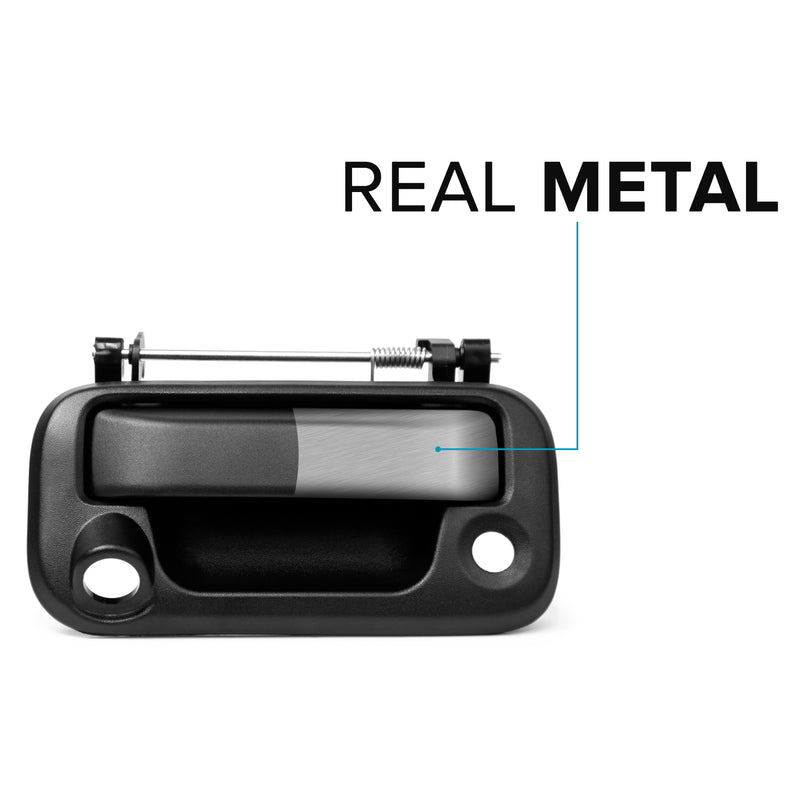

  • Black, Solid METAL Handle

For use with:

  • Ford F150 (2005-2014), F250 (2008-2016), F350 (2008-2016), F450 (2008-2016), F550 (2008-2016)

What's Included:

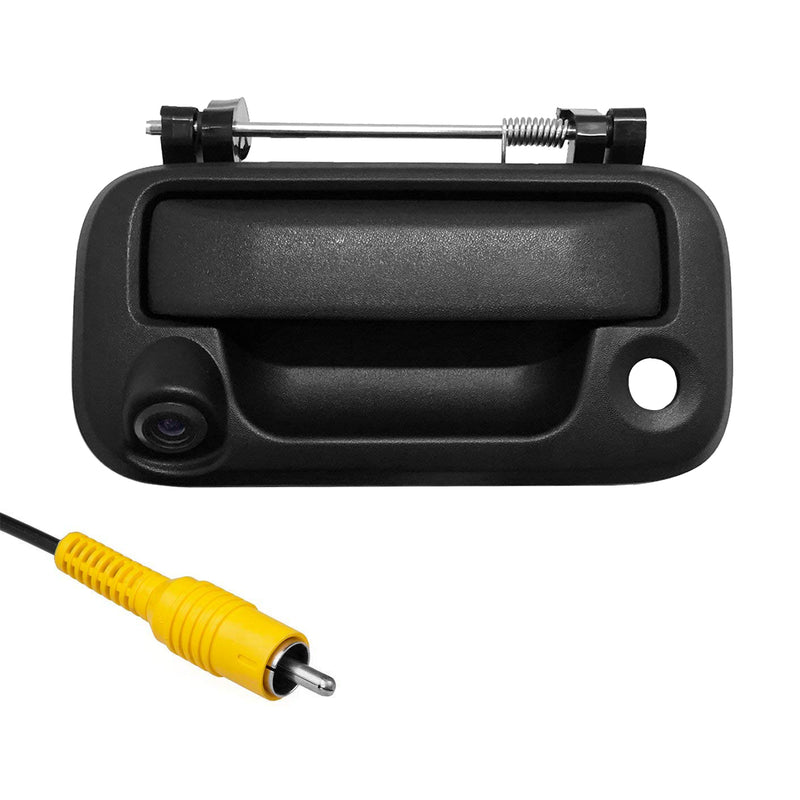

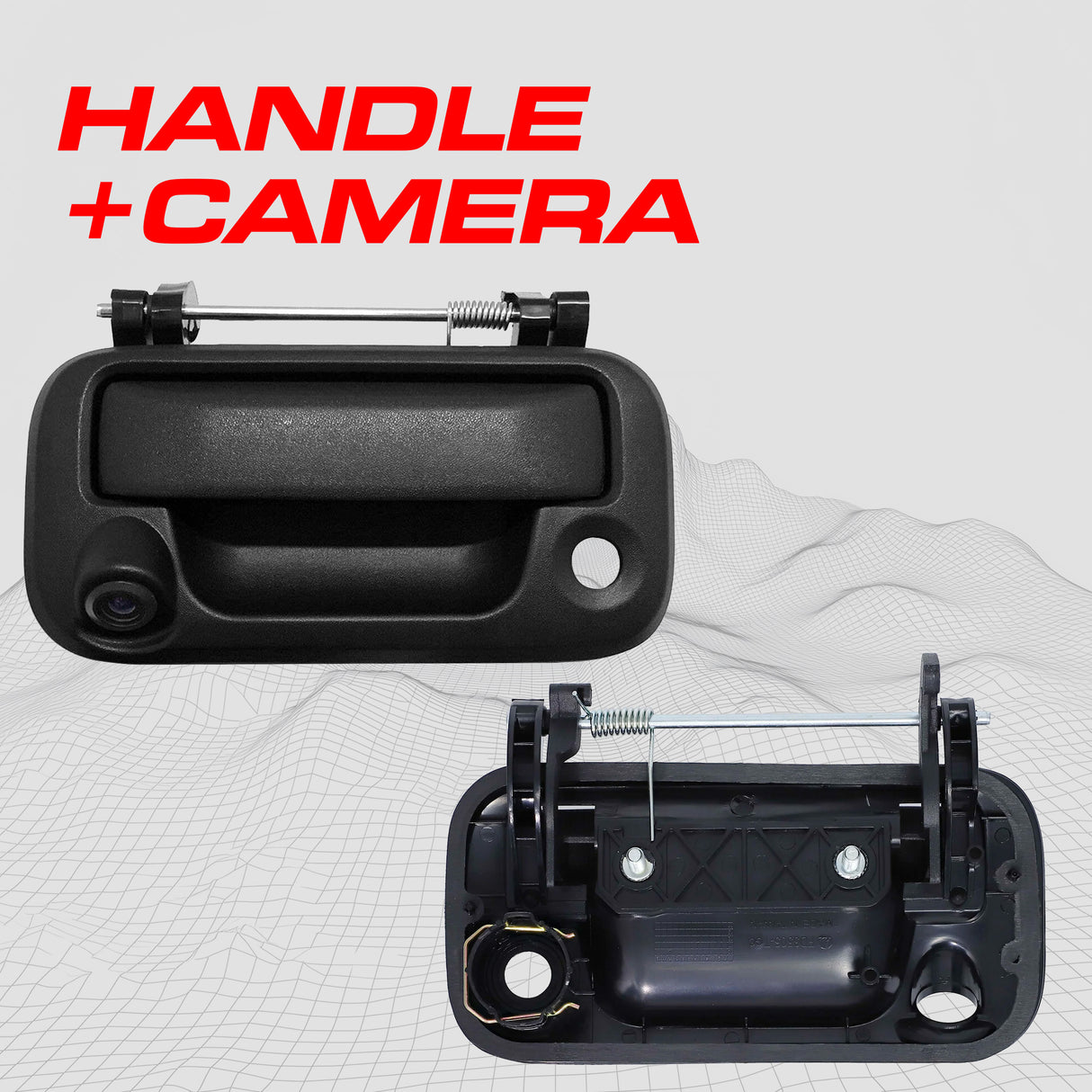

  • Metal Tailgate Handle with Backup Reverse Camera
  • 26 Foot Video and Power Cable
  • Installation Instructions
  • LIFETIME WARRANTY for Metal Handle

Description:
This is an aftermarket tailgate and camera, not OEM. For the power supply, you can connect it to any 12V power source. For example, if you wanted the camera to always be on, you can connect it to a 12v source that is on all the time, or if you only want it when you reverse you can connect it to the reverse taillights. Includes video and power extension cable, 8 Meters.

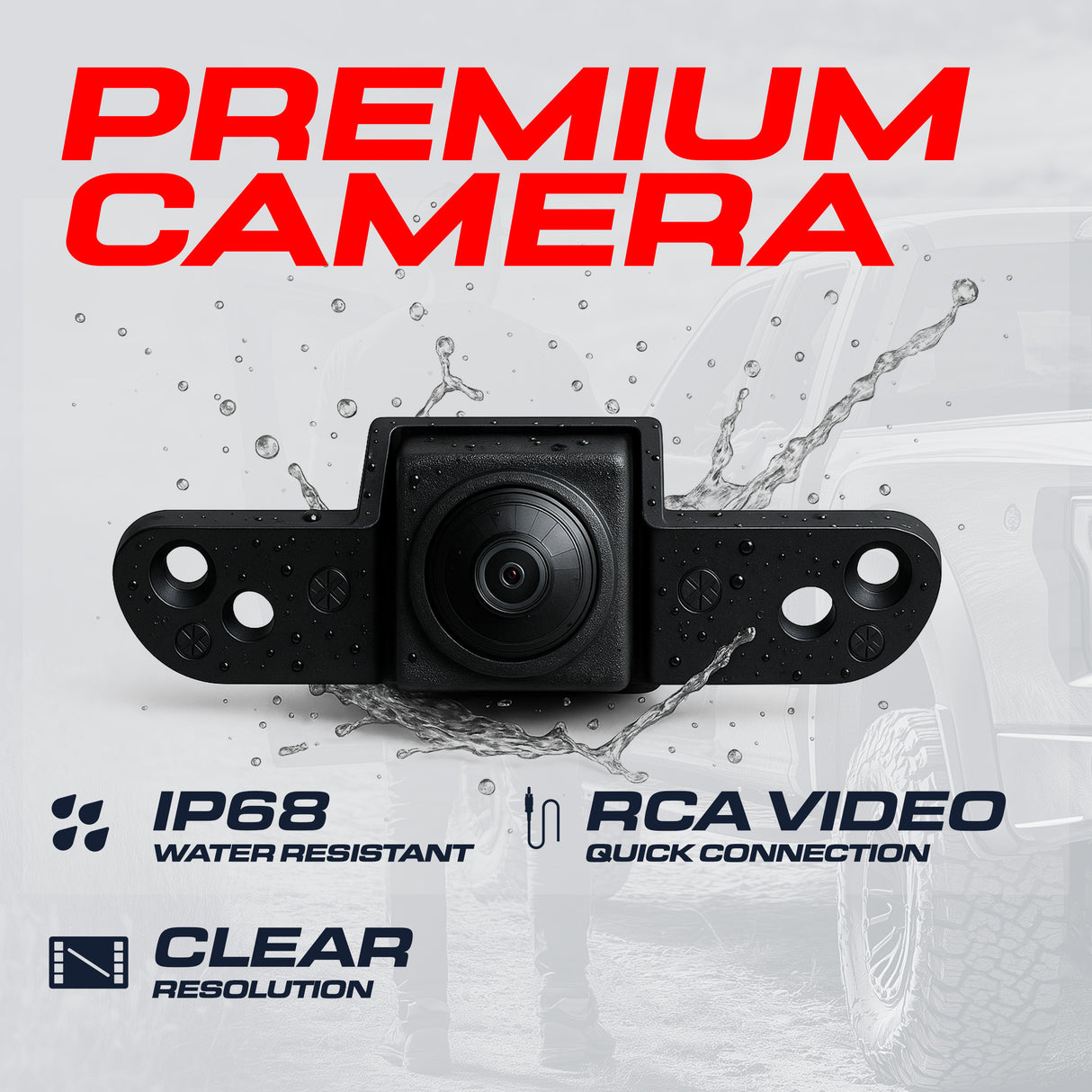

The Camera:

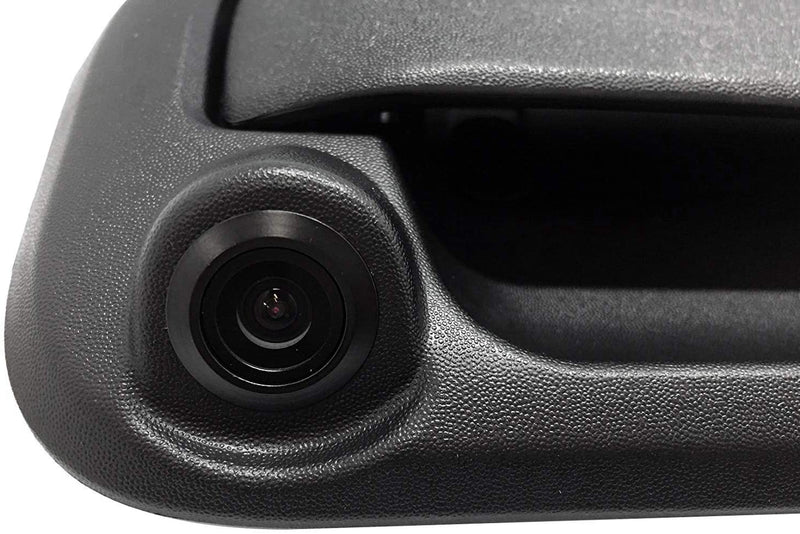

The most important feature of this Tailgate Handle is the camera. Master Tailgaters is dedicated to providing the best camera: clarity, dependability and longevity.
Each Camera is manufactured to provide a clear image. Not all cameras are made the same and we know that which is why Master Tailgaters never cuts any corners. In order to ensure a quality product, our cameras are double checked prior to shipping.
Our cameras are designed to work in low light settings. We know that backing up at night deserves a clear and safe picture of your surroundings.

Parking Lines:

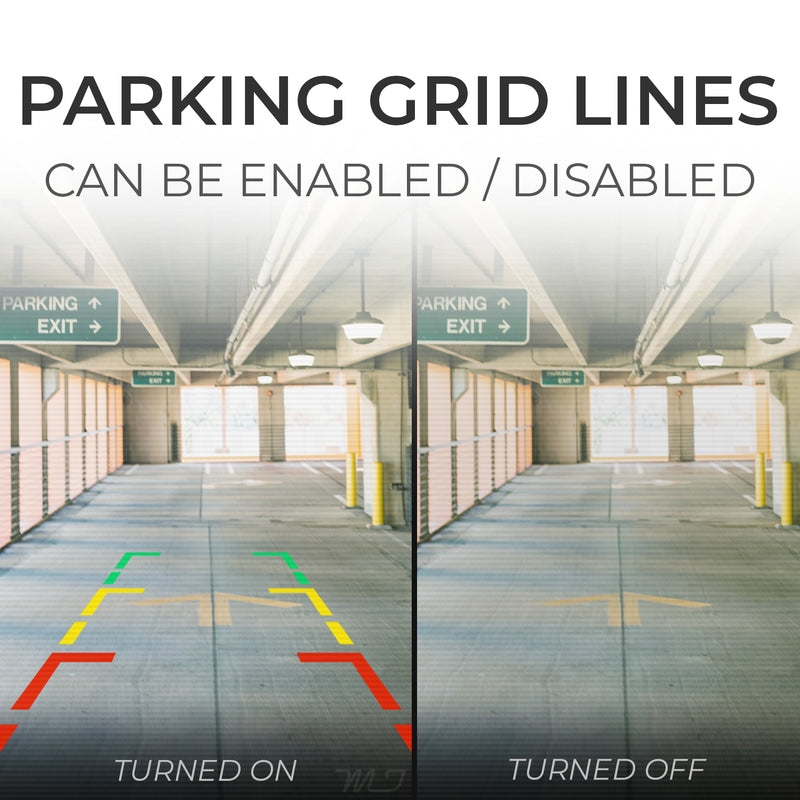

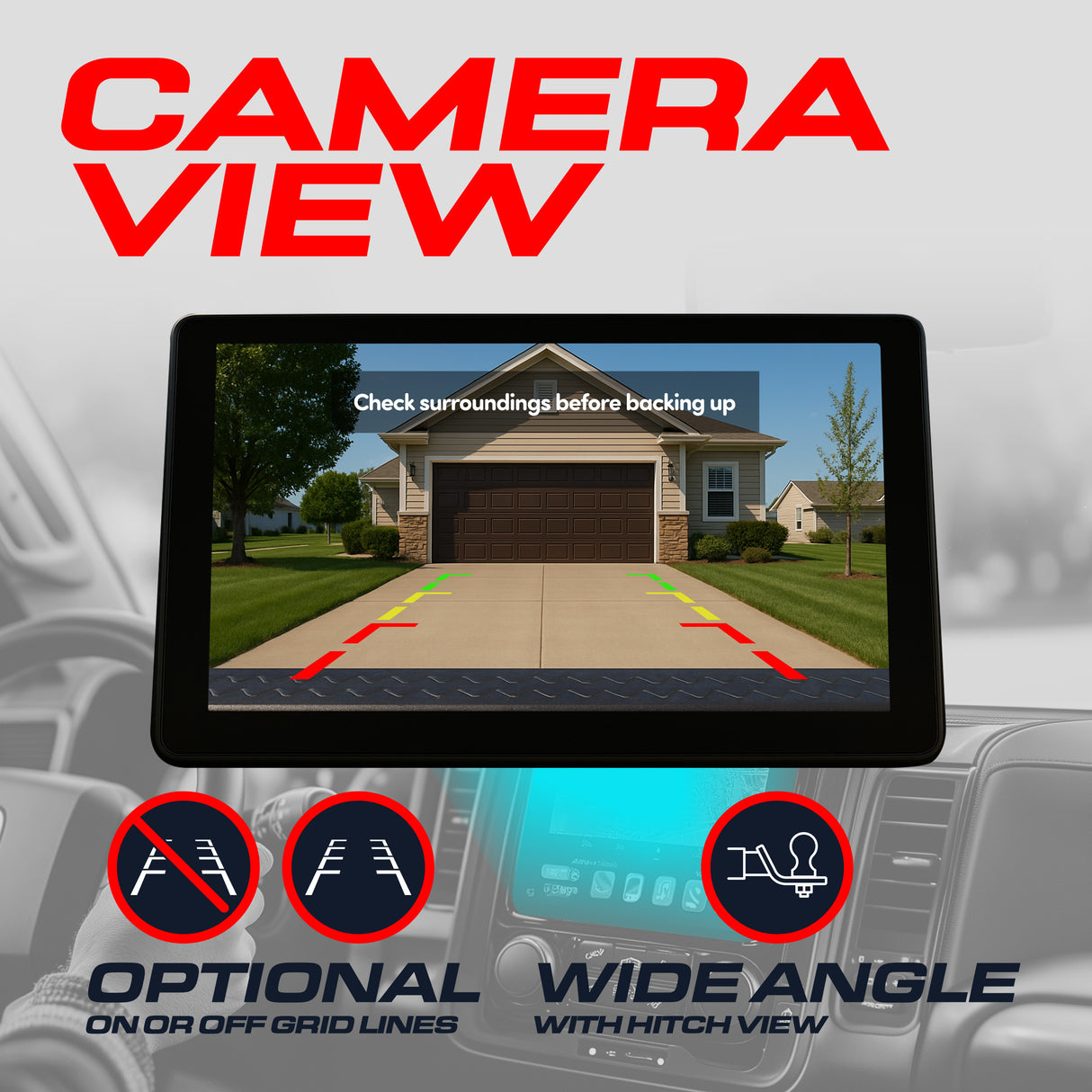

If you don't need the parking lines, the camera's parking grid lines can be turned off by cutting the white loop wire. To enable PAL mode, just cut the blue loop wire.



Camera Specifications:

  • Image sensor : 1/4" OV136 CCD Chip
  • Signal System: NTSC/PAL
  • Effective Pixels: 728 x 582
  • Minimum Illumination: 0.5 Lux
  • Electronic Shutter : 1/50 to 1/100,000 seconds
  • Resolution : 600 TV Line

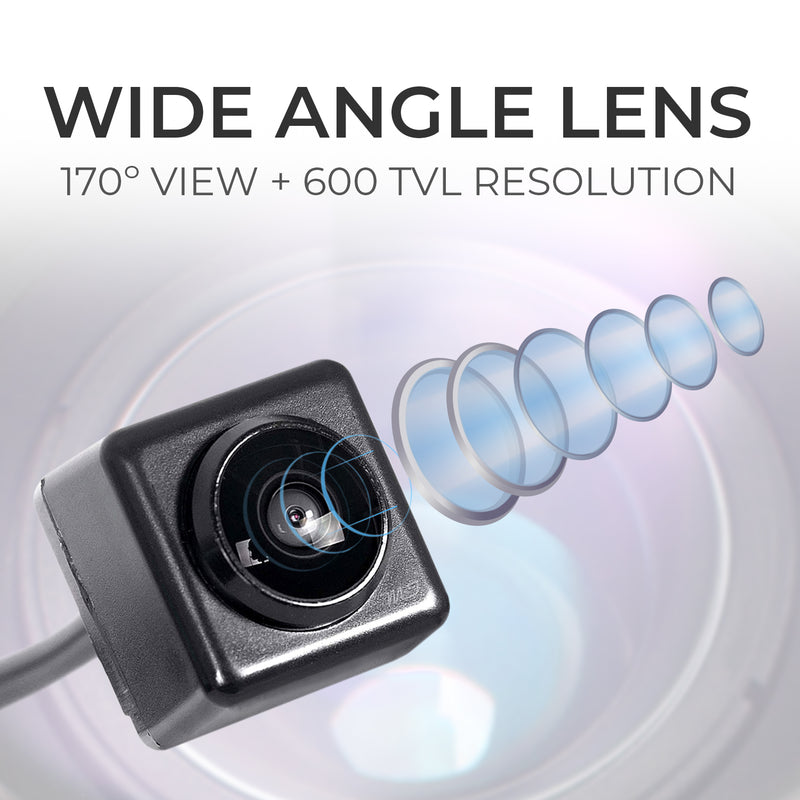

  • Angle : 170 Degree

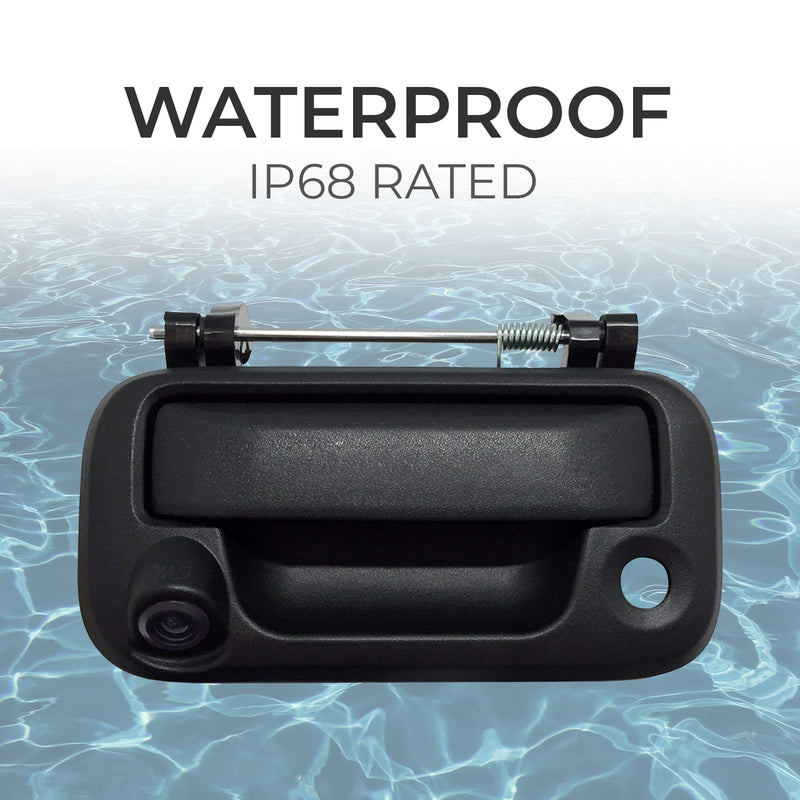

  • Waterproof Rate : IP68
  • Power : DC 12V
  • Video Cable: 26 Feet (8 Meters)

Attention!!!:
-Before purchasing check the back of your Monitor/Screen that you have a Yellow RCA input for easy installation.
-Installation is still possible without the Yellow RCA, however it is much more difficult and will require a professional to splice in the Video In signal.

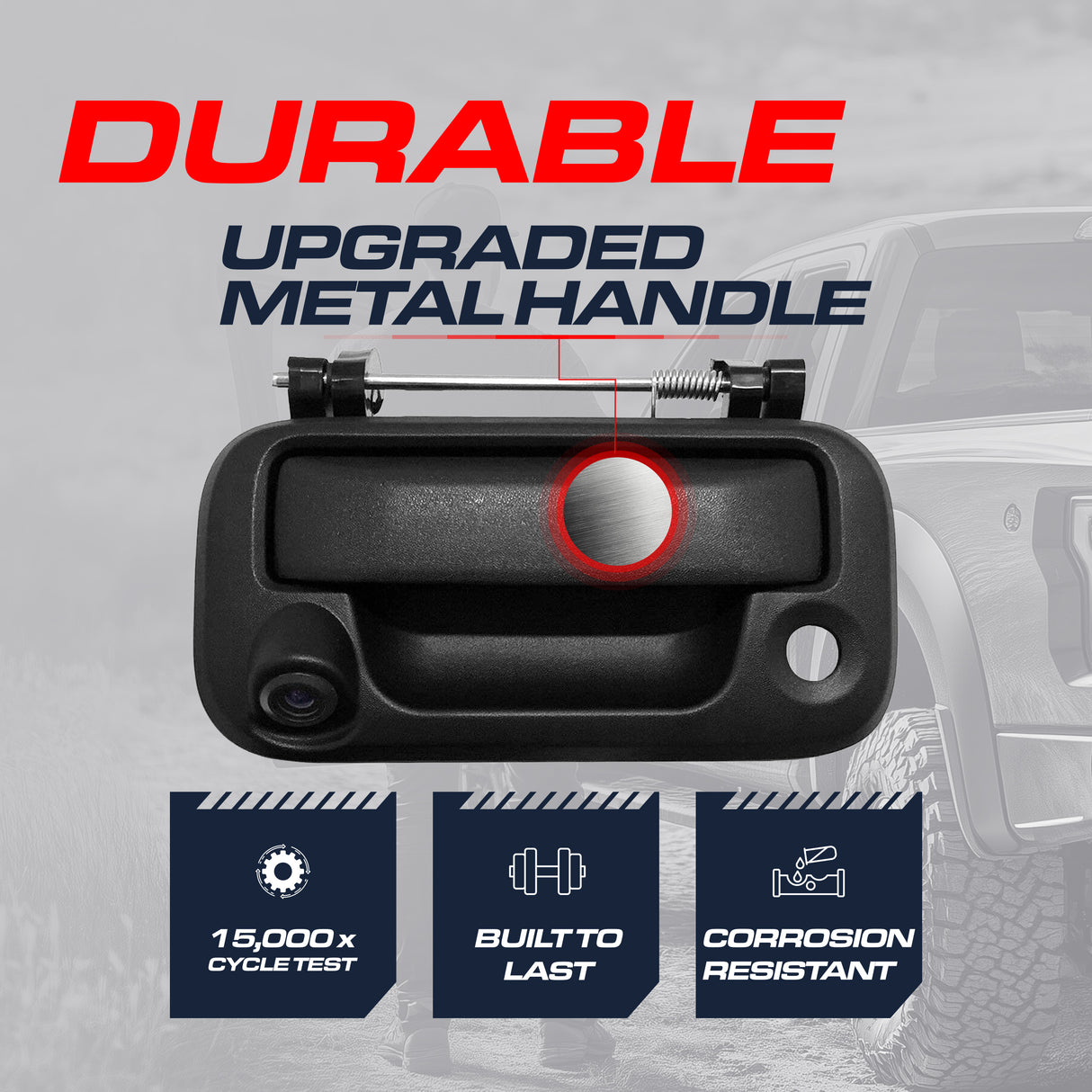

METAL HANDLE BACKED BY A LIFETIME WARRANTY - Guaranteed to Never Break!!!




[Fits]: Ford F150 (2005-2014), F250 (2008-2016), F350 (2008-2016), F450 (2008-2016), F550 (2008-2016)
[Resolution]: 600 TV Lines
[Image Sensor]: 1/4" OV136 CCD Chip, .5 lux light sensitivity
[Angle]: Wide View 170 Degrees - Clearly see your Trailer Hitch!
[NOTE***]: There are many knock offs of this product that use inferior parts which we do not endorse. Although the handle, camera and images may look similar, they are not the same and not a Master Tailgaters product.
