2013-2016 Nissan Frontier Tailgate with Backup Camera
Product type: Rear View Monitors/Cams & Kits

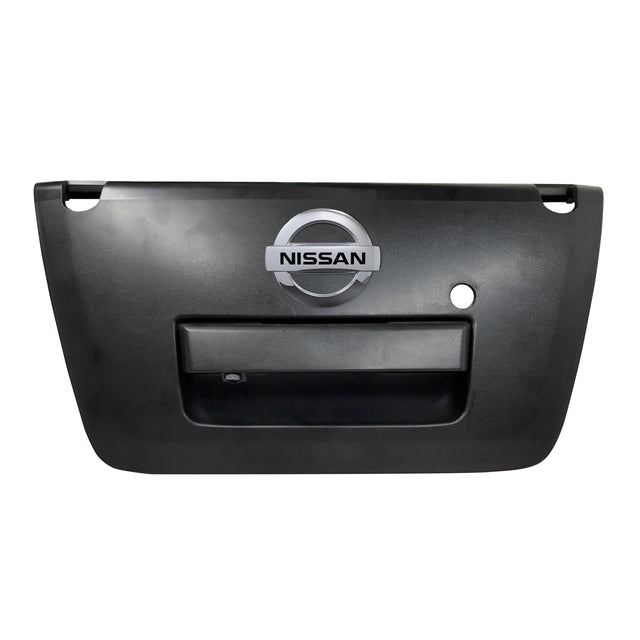

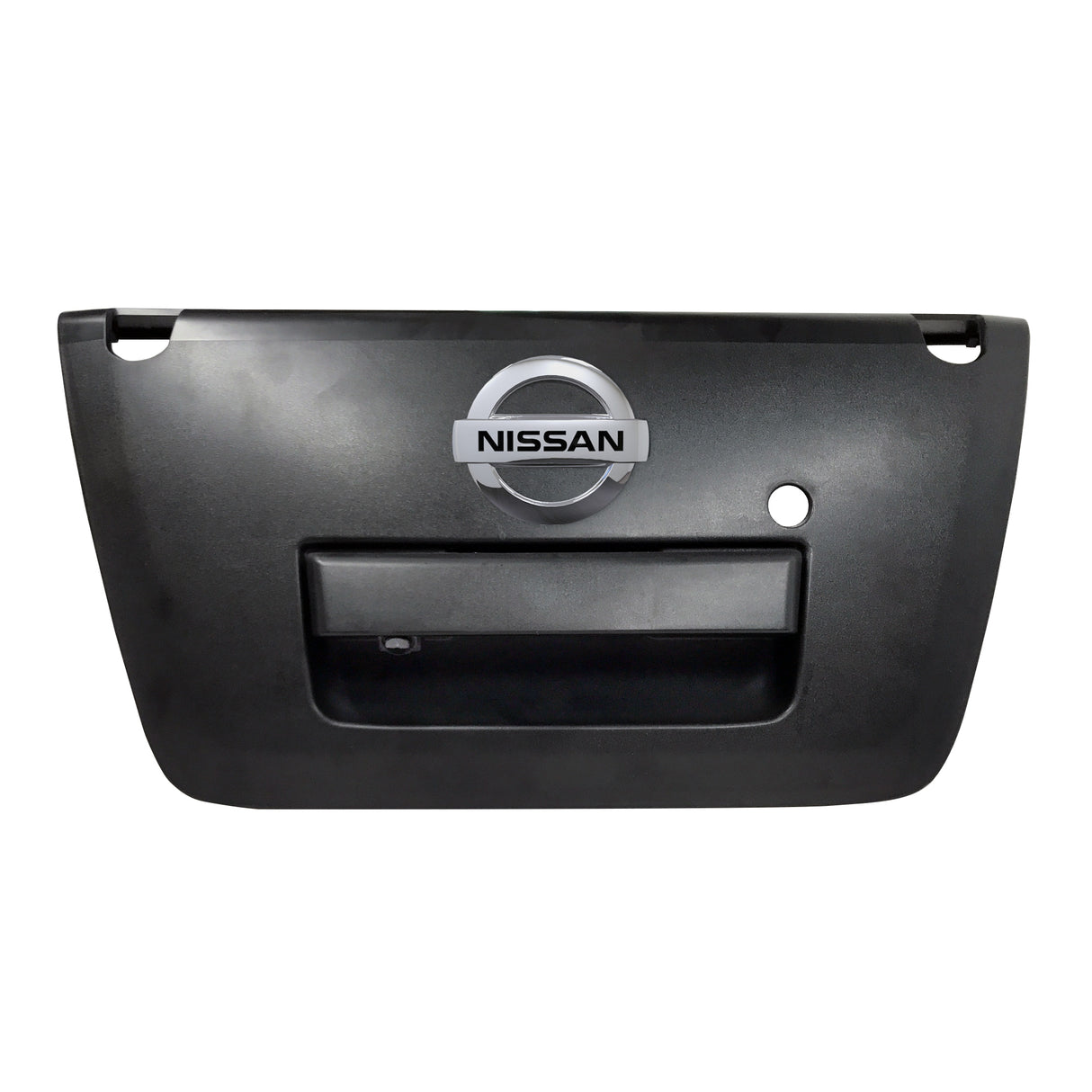

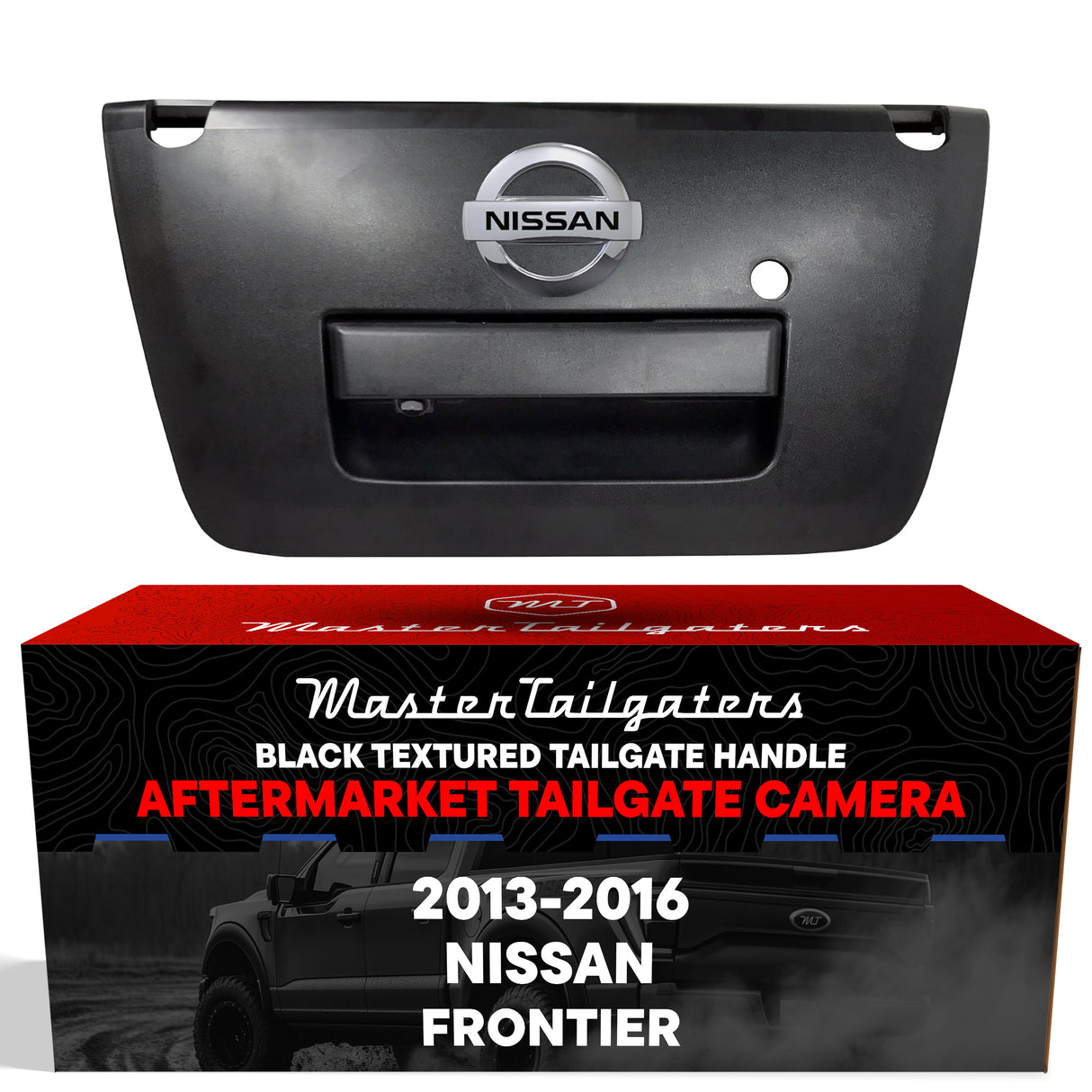

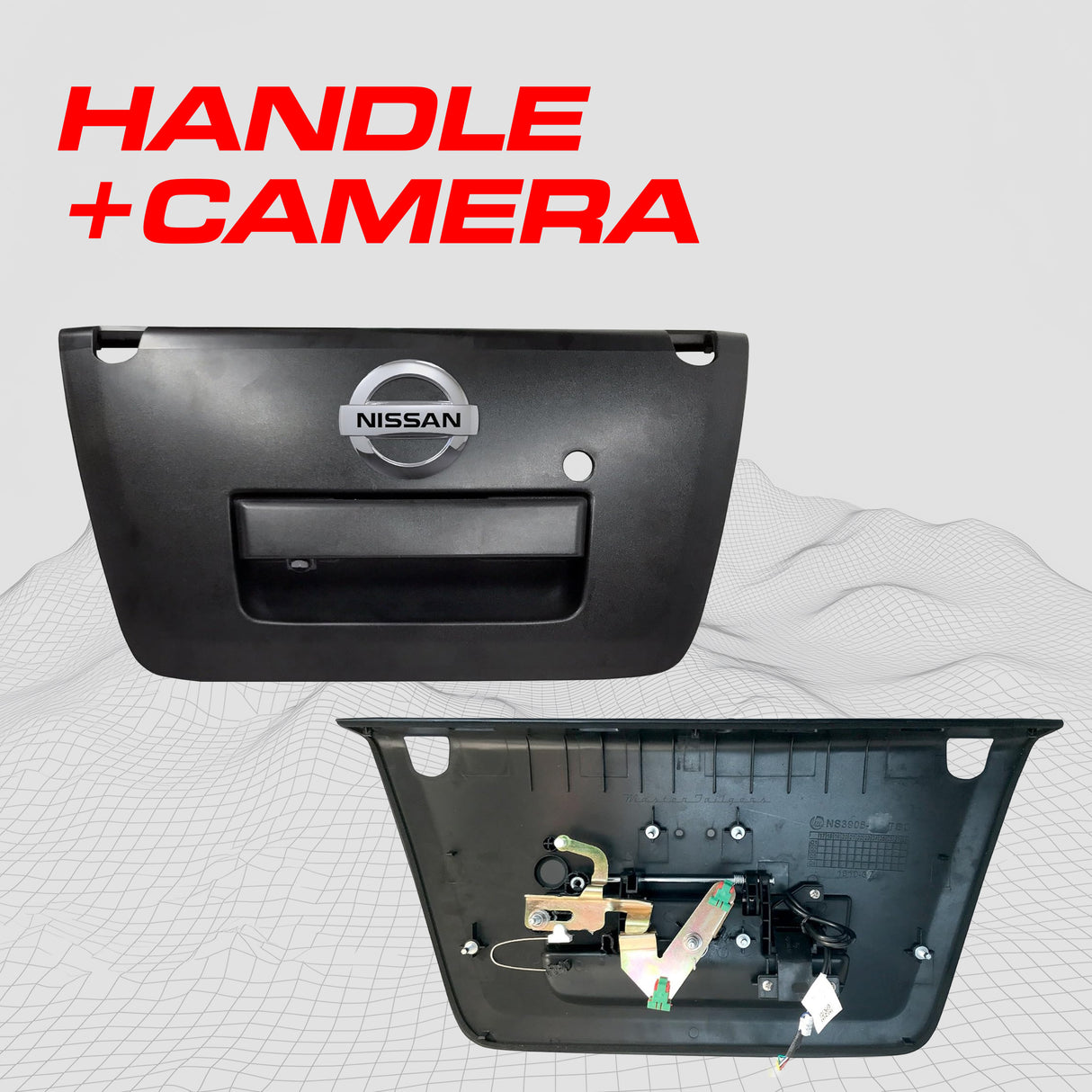

Master Tailgaters Nissan Frontier 2013-2016 Tailgate WITH Backup Reverse Camera ( Full Color Camera)
For use with:
Nissan Frontier 2013-2016
*NOTE: NISSAN EMBLEM NOT INCLUDED, picture is for reference purposes. Use your existing emblem or replace with Nissan Part # 90890-9BF0A

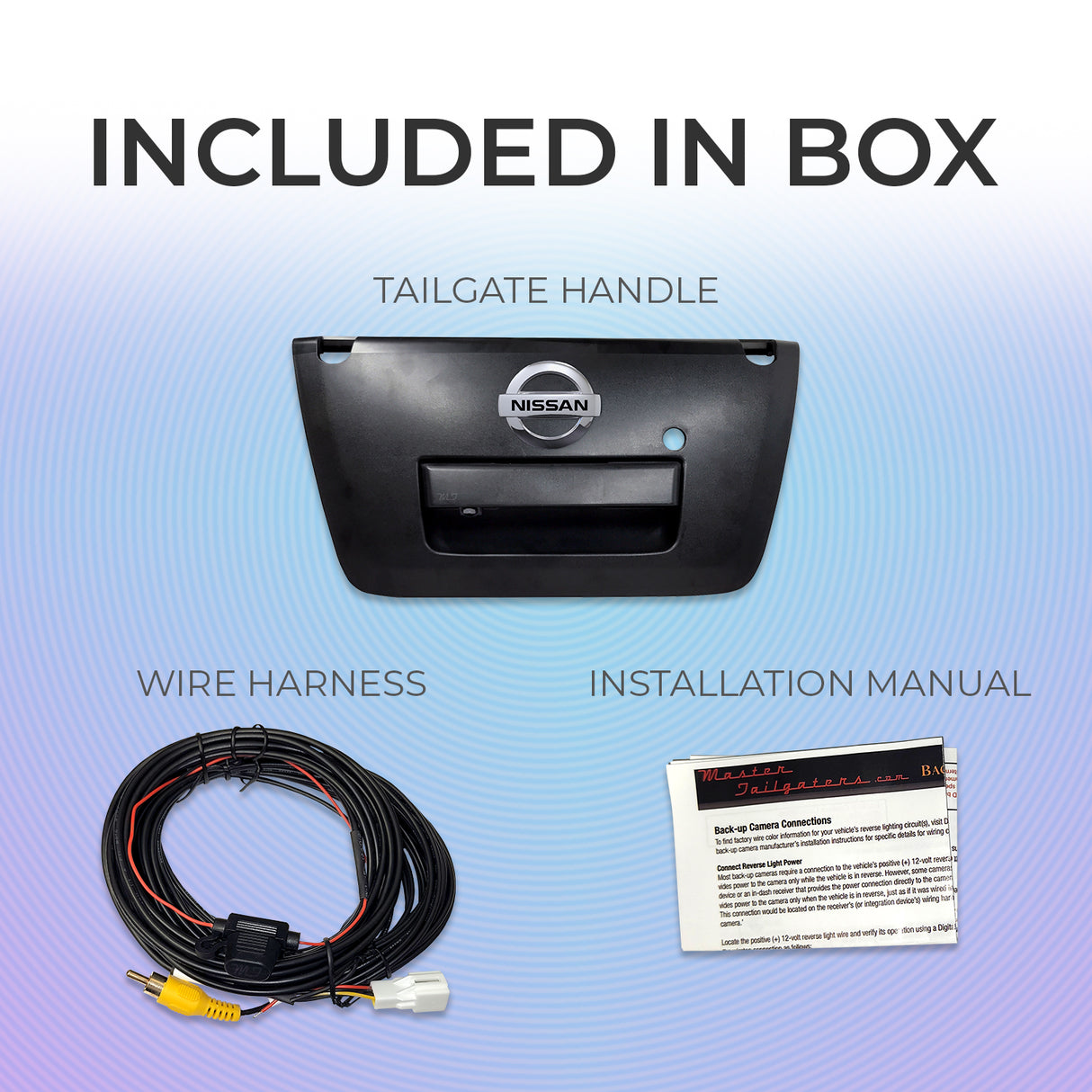

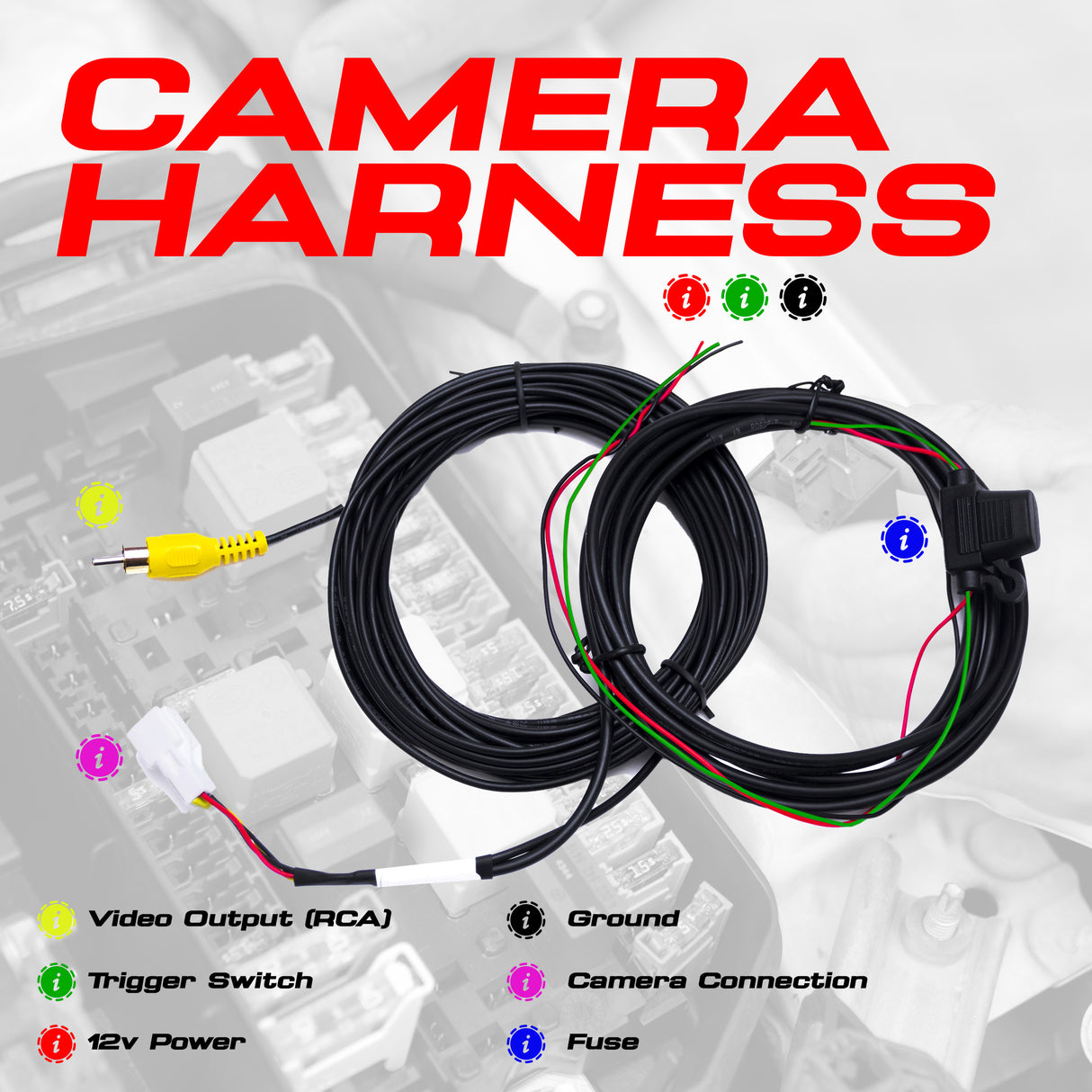

This is an aftermarket tailgate and camera, not OEM. For the power supply, you can connect it to any 12V power source. For example, if you wanted the camera to always be on, you can connect it to a 12v source that is on all the time, or if you only want it when you reverse you can connect it to the reverse taillights. Includes video and power extension cable, 8 Meters.

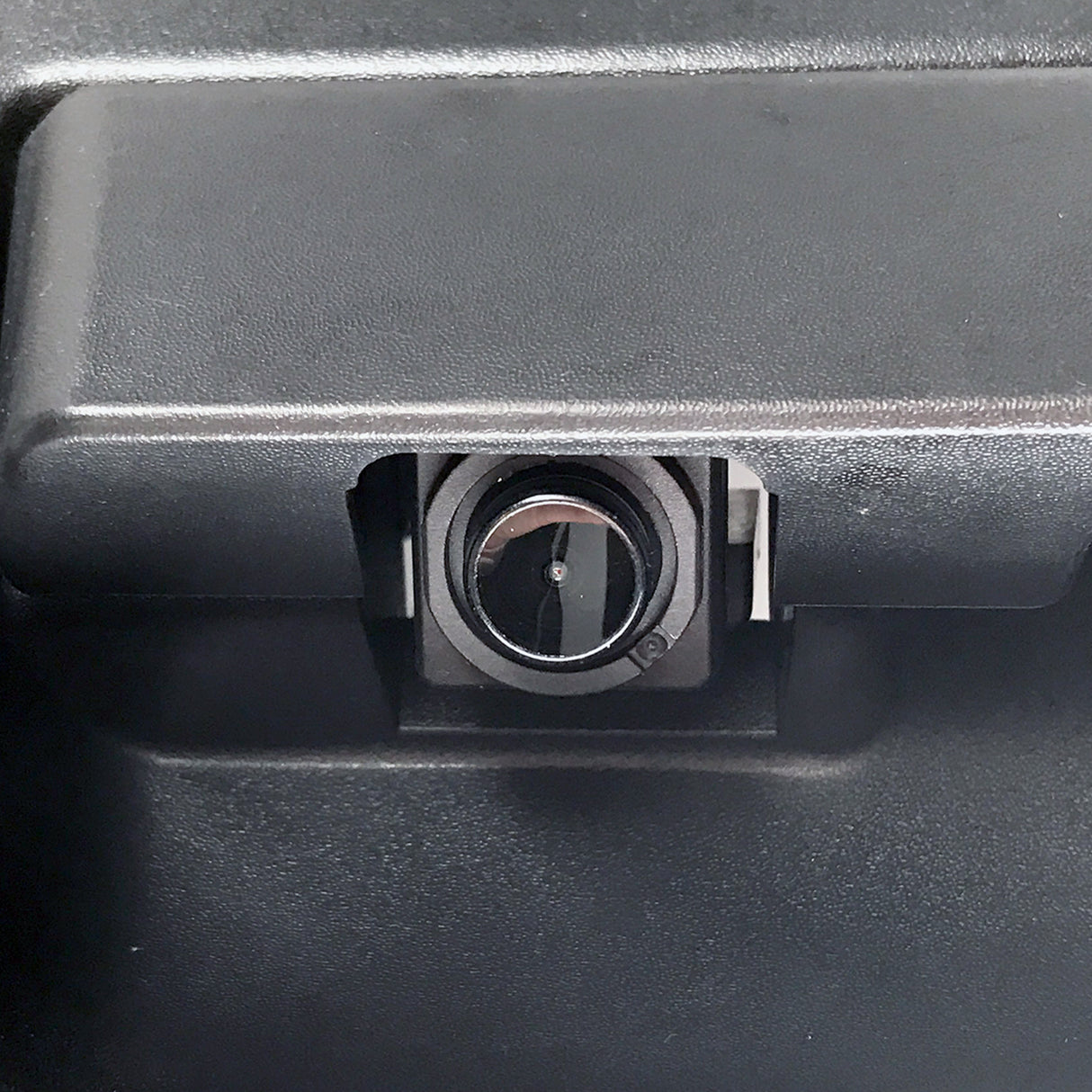

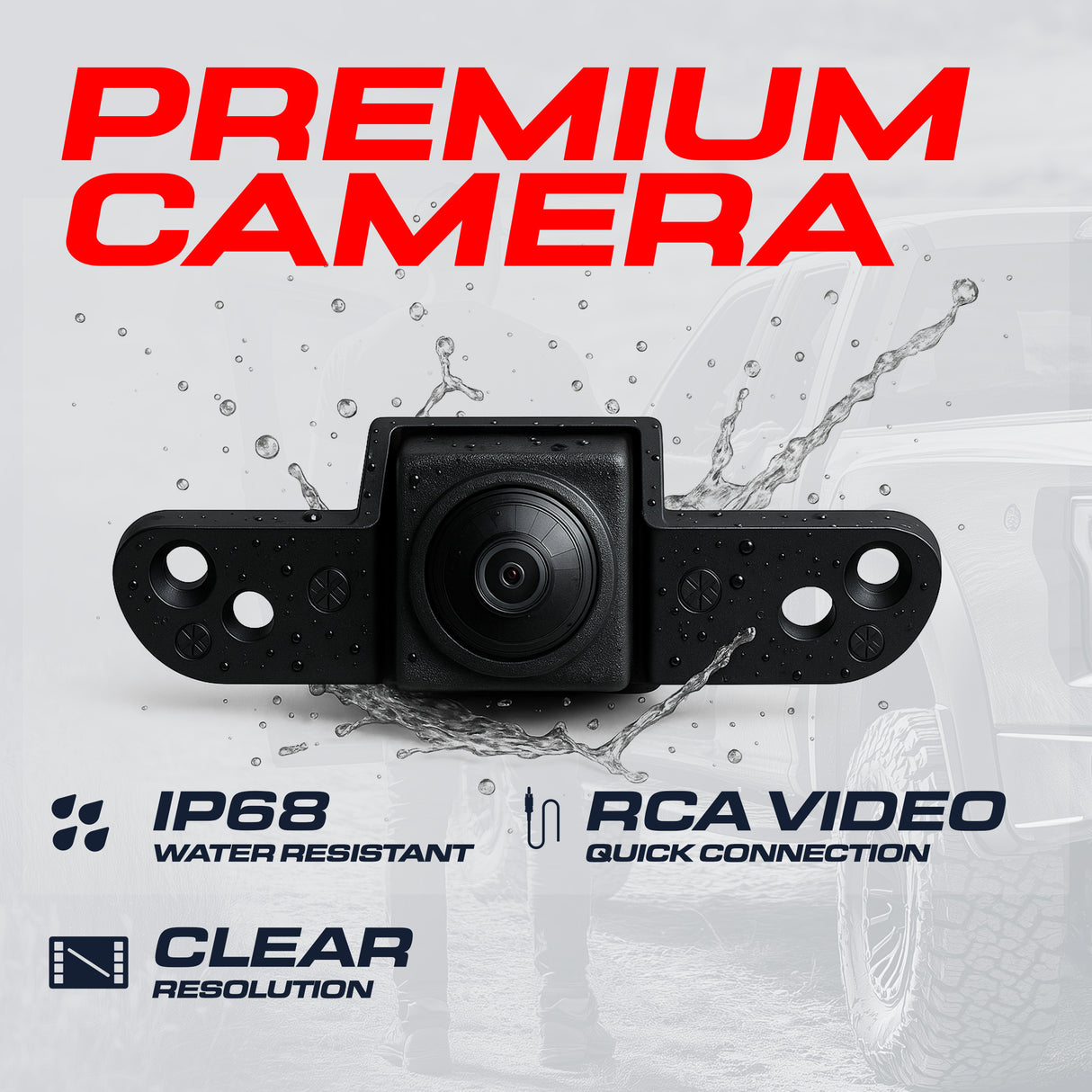

Image sensor : 1/4" OV136 CCD Chip
Signal System : NTSC/PAL
Effective Pixel : NTSC: 728 x 582, PAL: 728 x 512
Minimum Illumination : 0.5 Lux
Video Output : 1.1Vp-p 75 Ohm
Electronic Shutter : 1/50 to 1/100,000 seconds
Resolution : 600 TV line

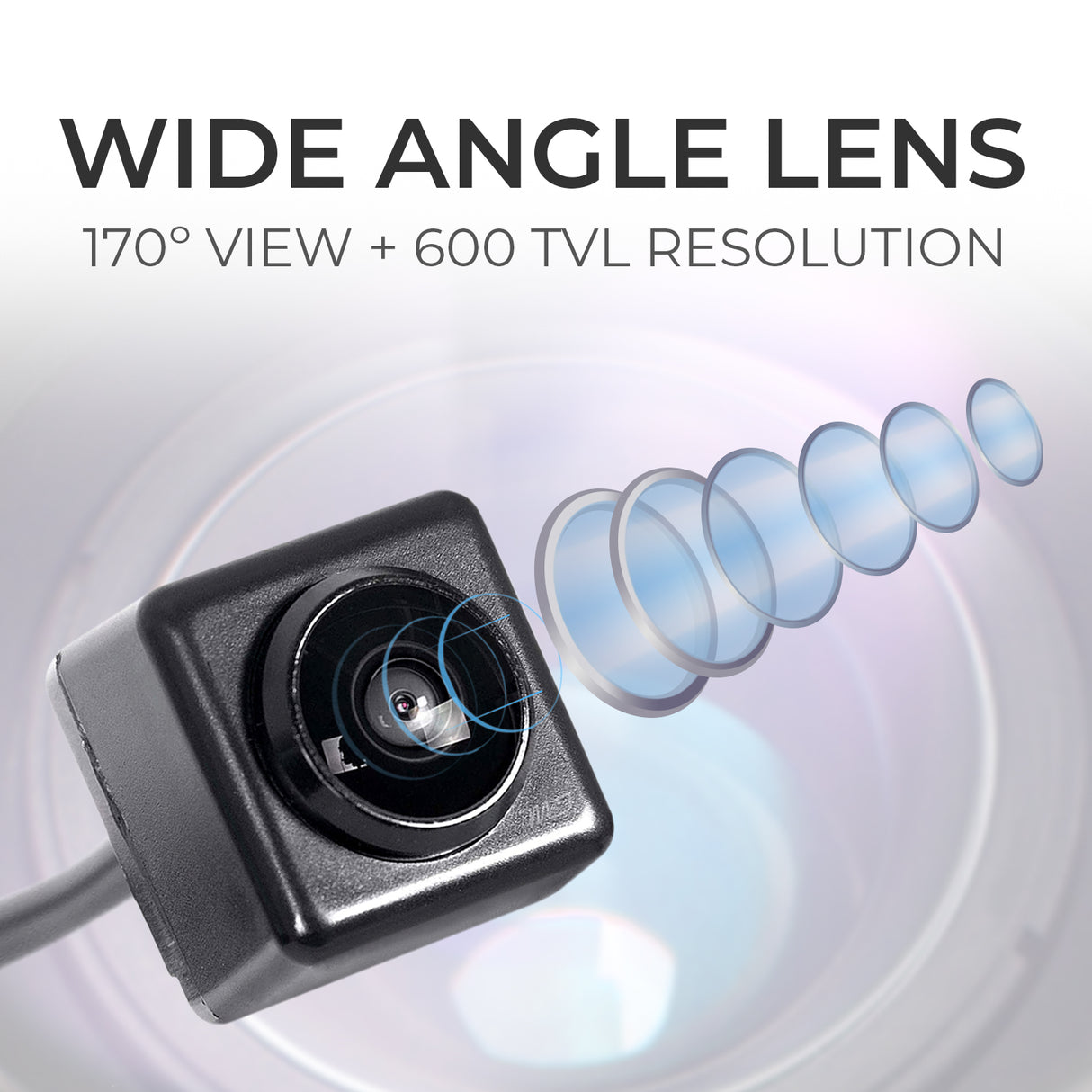

Angle : 170 Degree

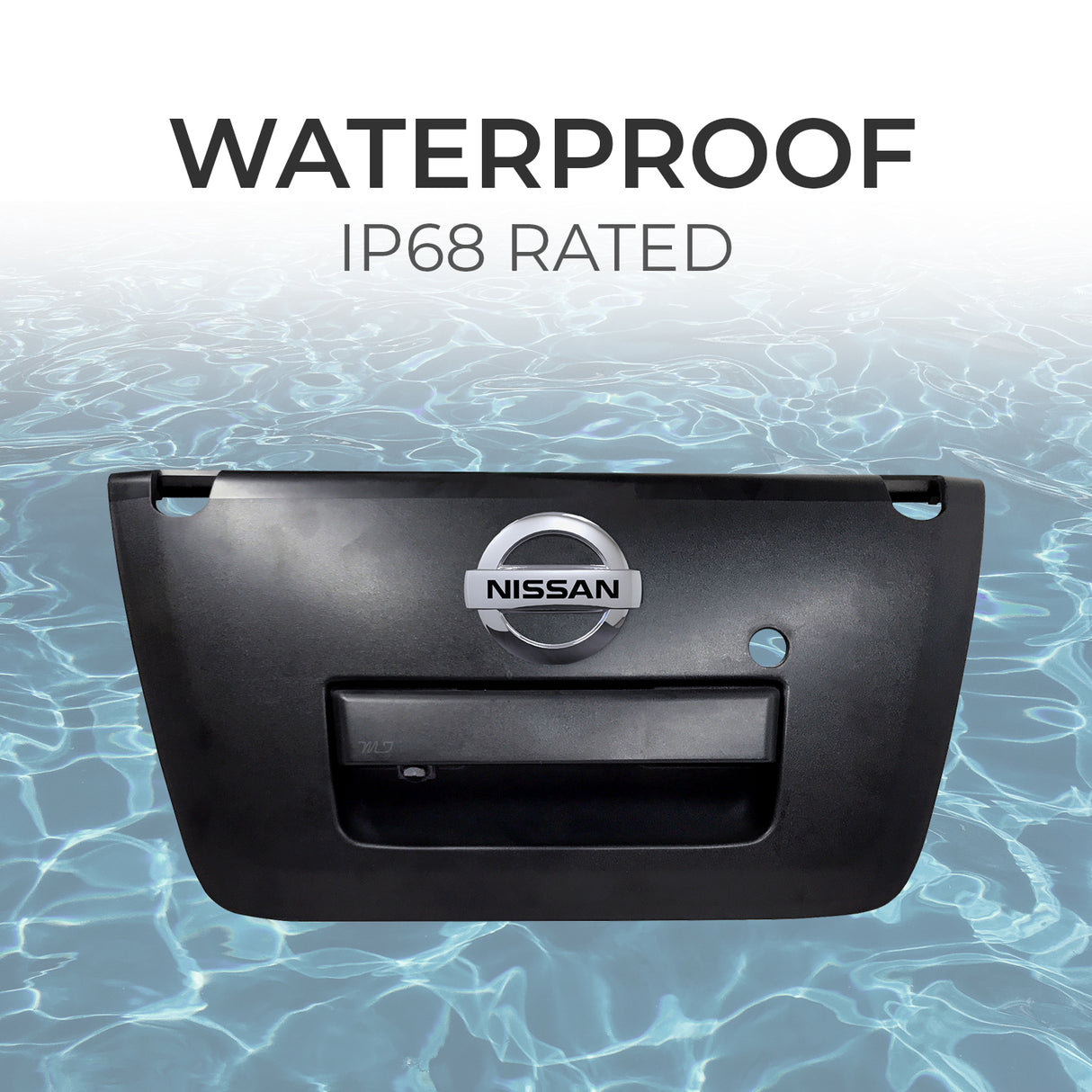

Waterproof Rate : IP68
Current Consumption : 120mA Max.
Power : DC 12V

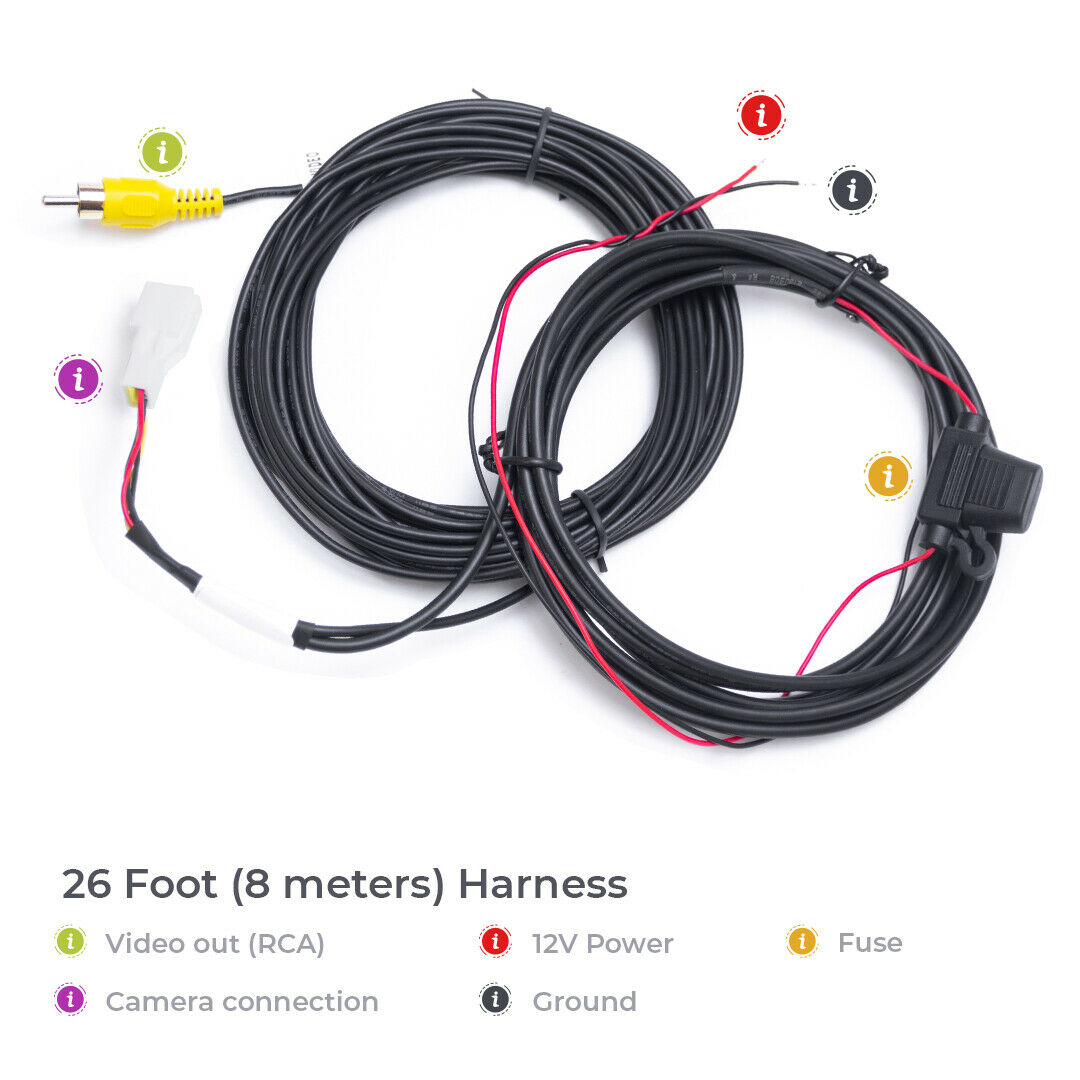

Cable Length : Video Cable: 8M

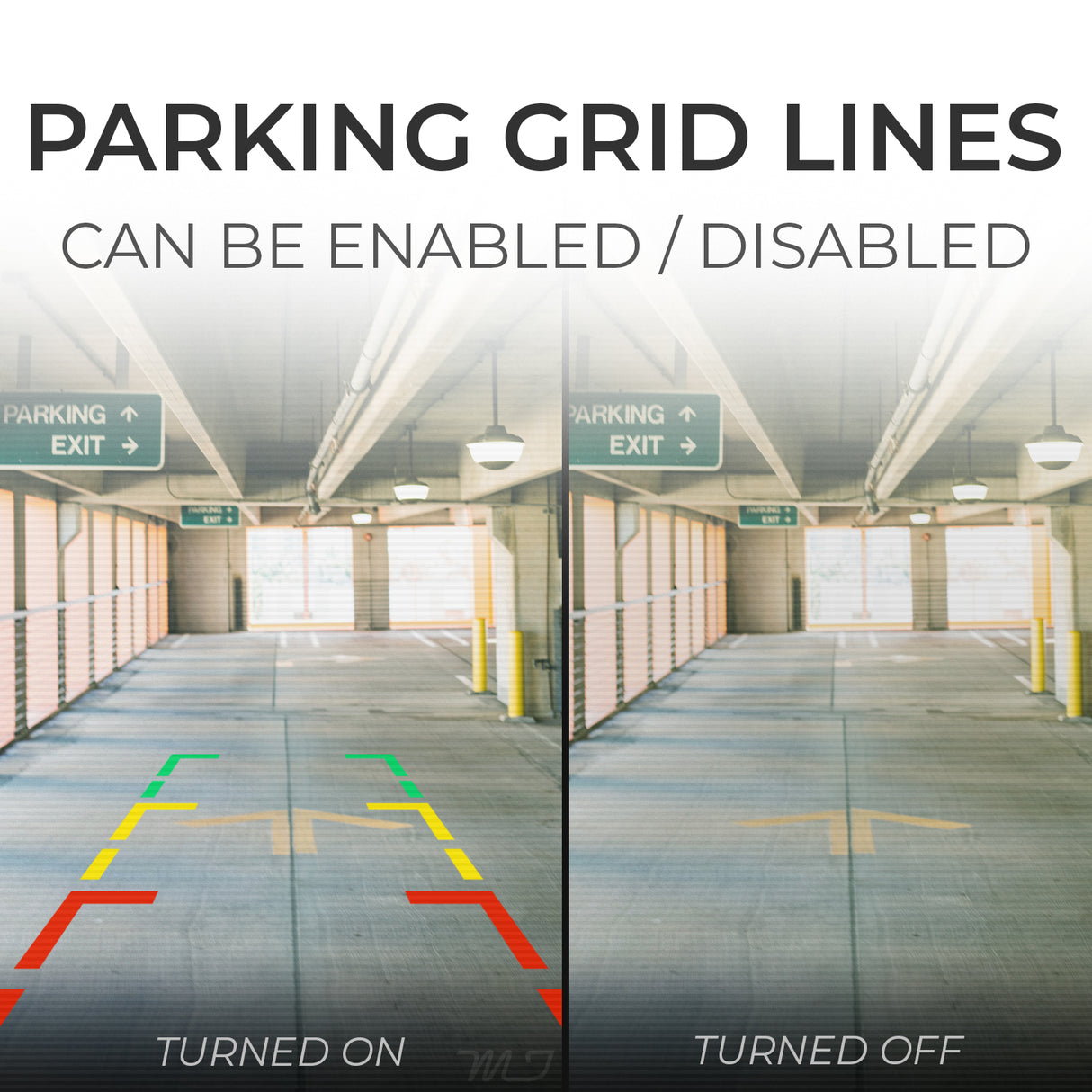

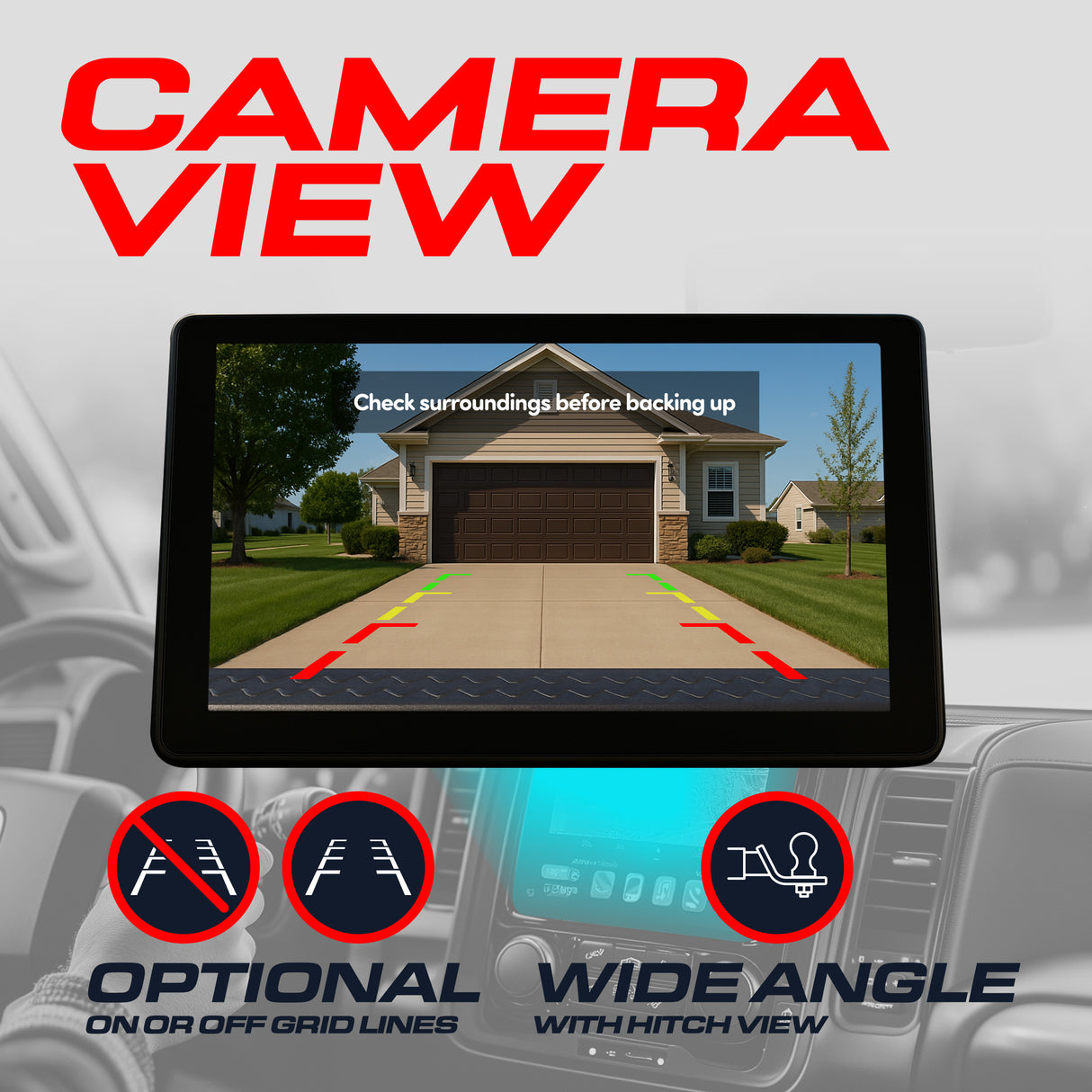

Parking Grid Lines: Included with option to disable
-Before purchasing check the back of your Monitor/Screen that you have a Yellow RCA input for easy installation.
This tailgate handle is not recommended to be installed with Factory Navigation/Monitor units. It is possible but requires professional installation.
BACKED BY A 5 YEAR NO QUESTIONS ASKED WARRANTY!!!
