Chevrolet Express Van / GMC Savana (2010-2018) Replacement Cargo Van Door Handle with Backup Camera
local_shipping FREE SHIPPING verified_user 2 YEAR WARRANTY
Master Tailgaters Chevrolet Express Van / GMC Savana
Cargo Door Van Handle WITH Backup Reverse Camera (Full Color Camera)

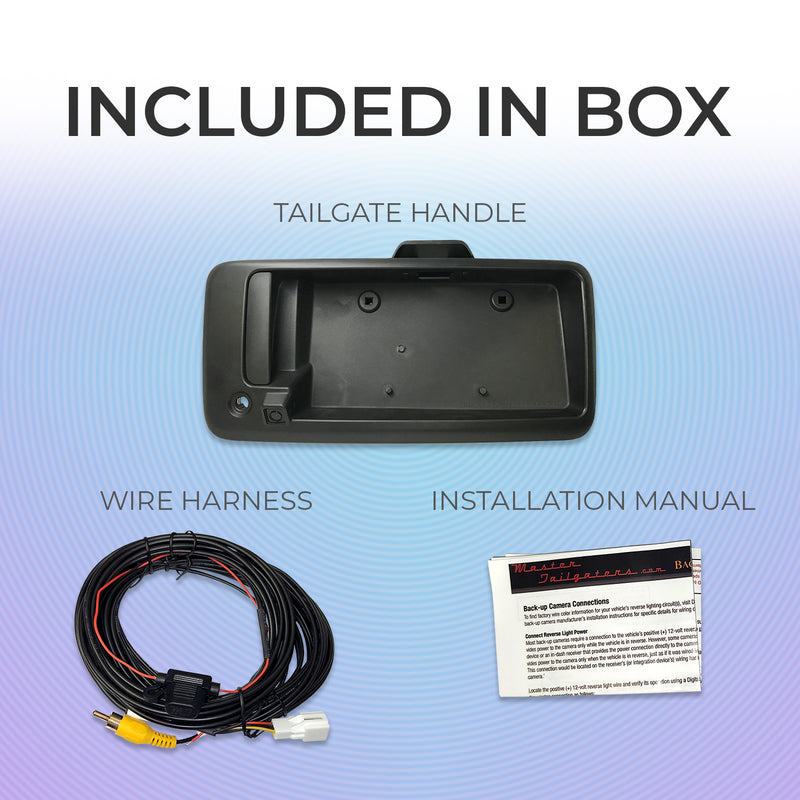

- Chevrolet Express Van / GMC Savana (2010-2018)

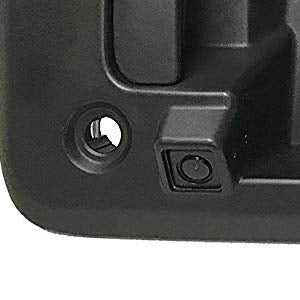

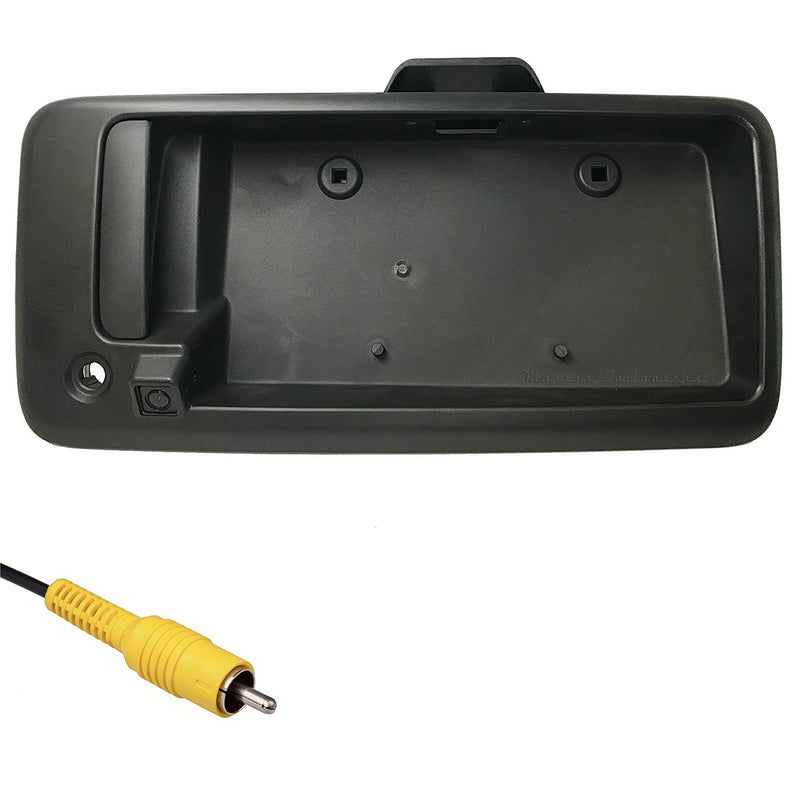

- Tailgate Handle with Backup Reverse Camera

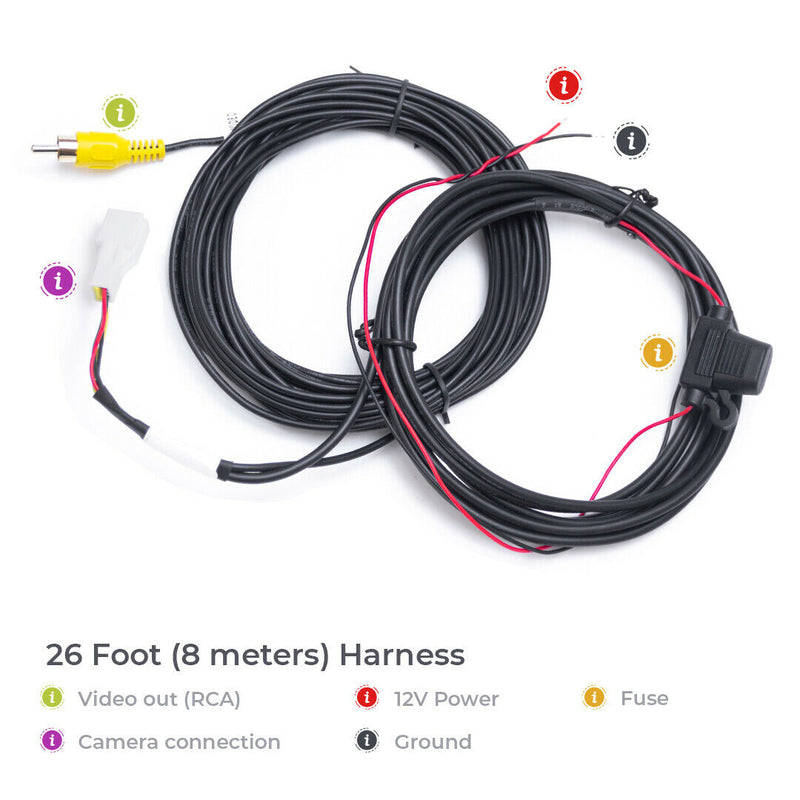

- 26 Foot Video and Power Cable
- Installation Instructions
- 2 YEAR NO QUESTIONS ASKED WARRANTY
This is an aftermarket tailgate and camera, not OEM. For the power supply, you can connect it to any 12V power source. For example, if you wanted the camera to always be on, you can connect it to a 12v source that is on all the time, or if you only want it when you reverse you can connect it to the reverse taillights. Includes video and power extension cable, 8 Meters(26 feet).
- Sensor: ¼” On-Semi (USA) CMOS Active Pixel Array, Lens: Nidec (Japan) (Glass + Plastic)
- Minimum Illumination : .1 Lux light sensitivity
- Signal System : NTSC/PAL
- Effective Pixel : NTSC: 728 x 582, PAL: 728 x 512
- Video Output : 1.1Vp-p 75 Ohm
- Electronic Shutter : 1/50 to 1/100,000 seconds
- Resolution : 600 TV lines

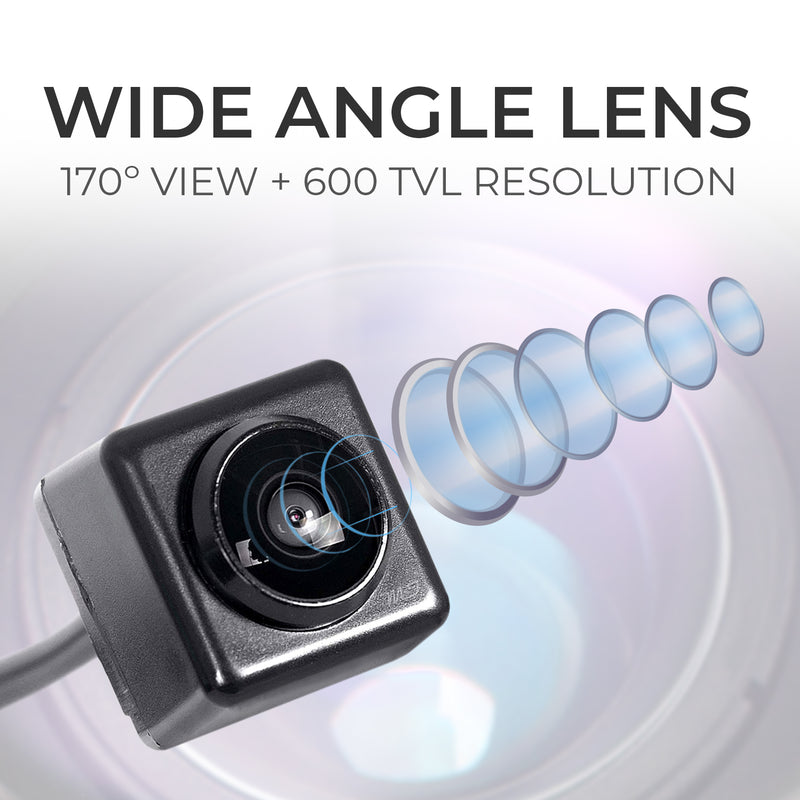

- Angle : 170 Degrees

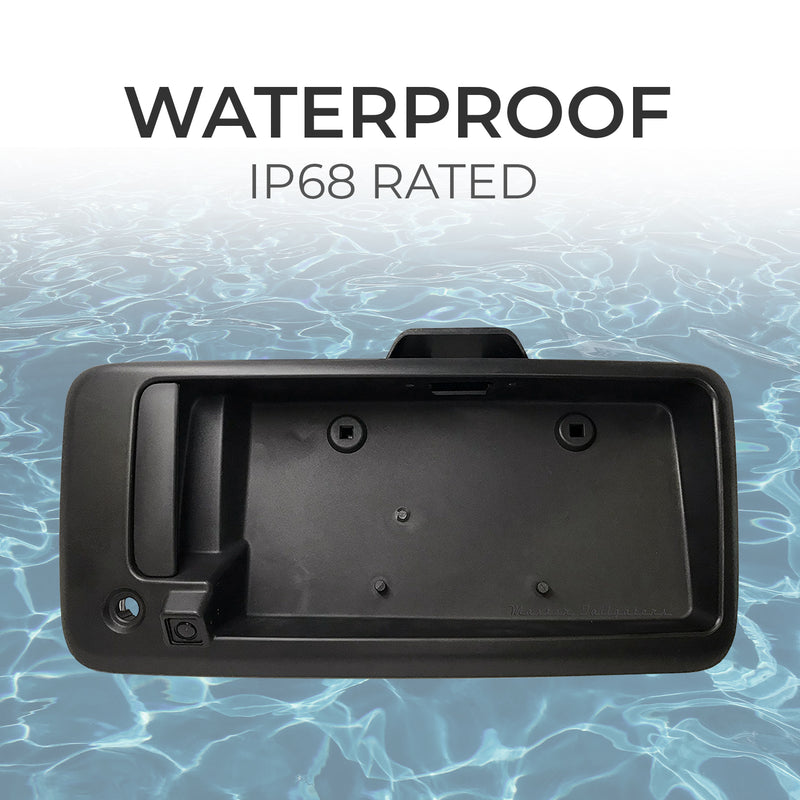

- Waterproof Rate : IP68
- Current Consumption : 120mA Max.
- Power : DC 12V
- Cable Length : Video Cable 26 Feet (8 Meters)

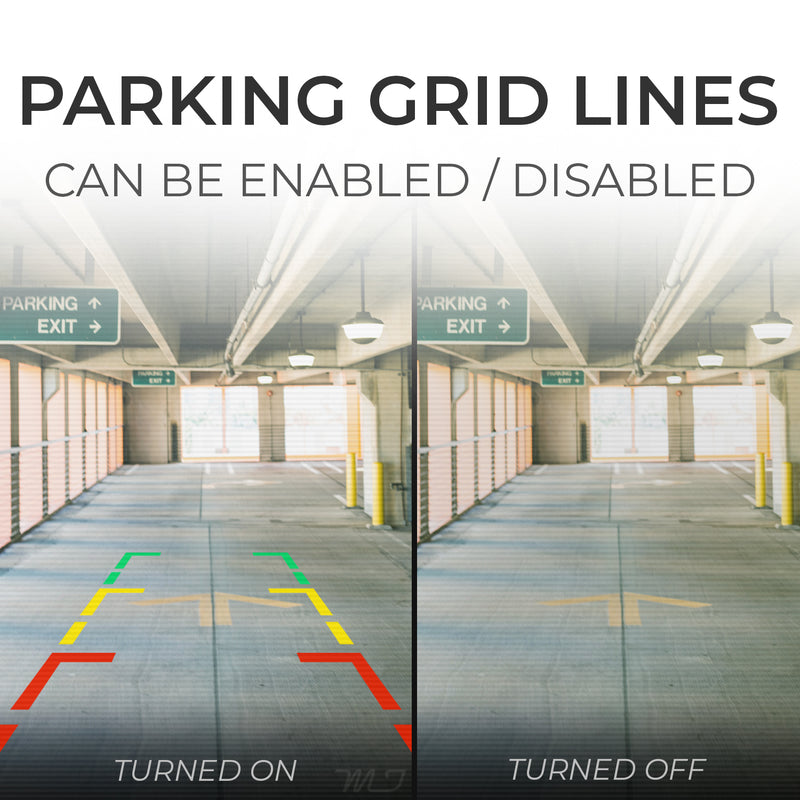

- Parking Grid Lines: Included with option to disable
-Before purchasing check the back of your Monitor/Screen that you have a Yellow RCA input for easy installation.
-Installation is still possible without the Yellow RCA, however it is much more difficult and will require a professional to splice in the Video In signal.
