Ford F150, F250, F350, F450, F550 (2004-2016) Replacement Ford Emblem with Backup Camera
local_shipping FREE SHIPPING verified_user 2 YEAR WARRANTY

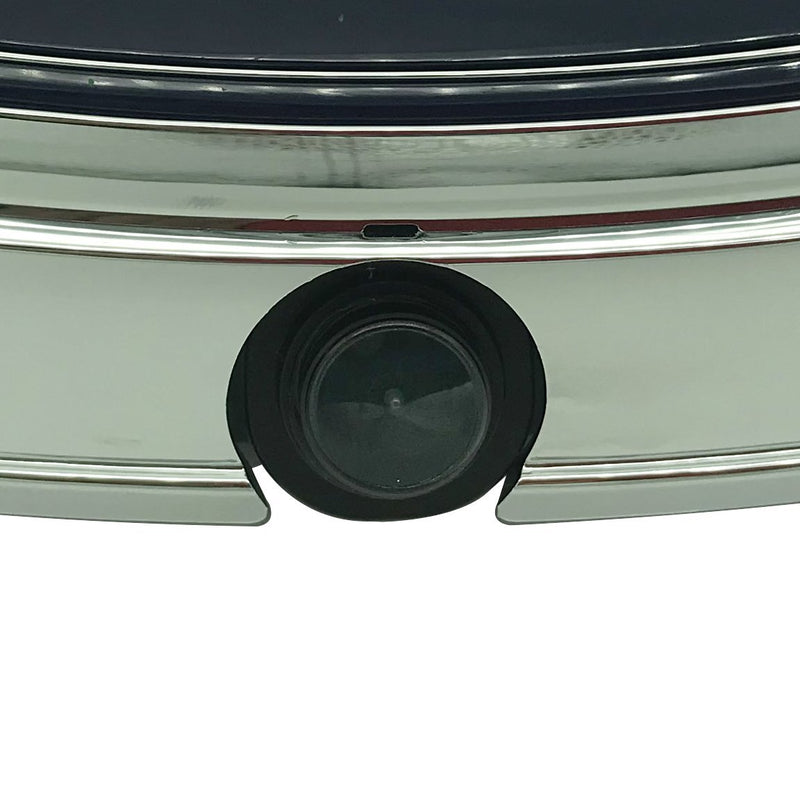

Master Tailgaters Ford F150, F250, F350, F450, F550 Ford Emblem WITH Backup Reverse Camera (Full Color Camera)
**Important- This will not work as a replacement for OEM systems! If your truck has an existing OEM Backup Camera and you are looking for a replacement, this will not work! This is for trucks that NEVER had a backup camera.
For use with:

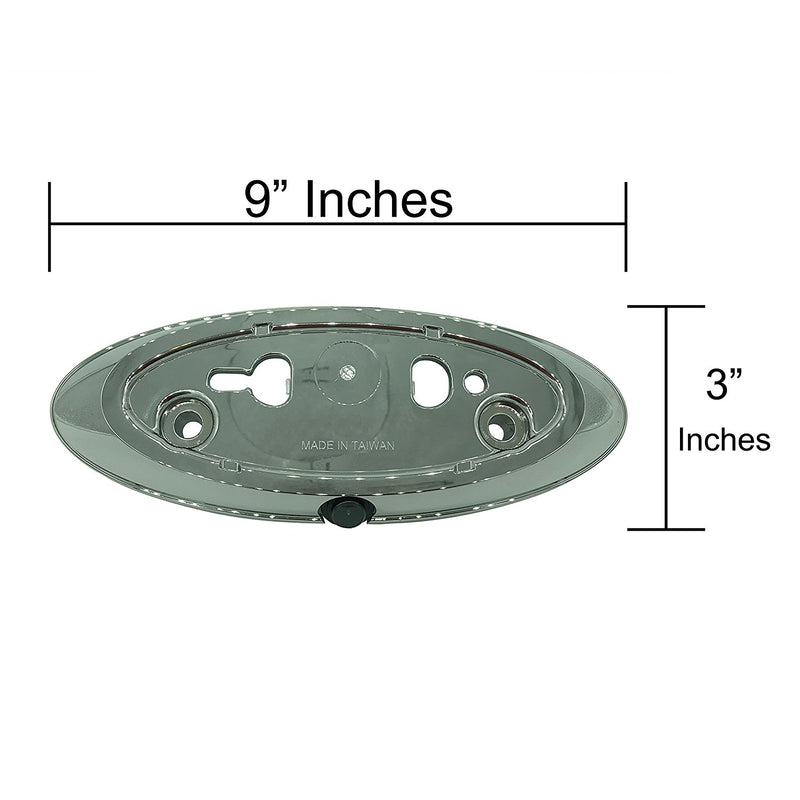

Ford Years 2004-2016 with 9 inch blue oval in the center of the tailgate (measure oval before purchasing)
*Note- Prior to ordering, measure your current emblem. This replaces all Ford large oval emblems located at the center of the tailgate.

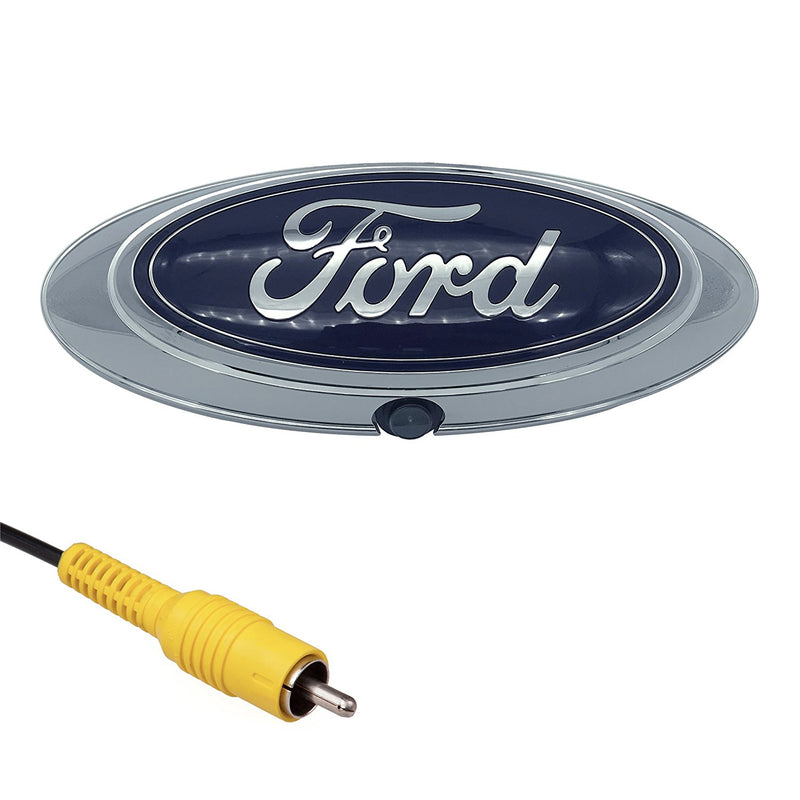

This backup camera can be connected to any aftermarket monitor with a Yellow RCA input. Typically the factory emblem is attached to your truck with double sided tape. Use a heat gun, at a low heat setting, and use a piece of floss between the emblem and tailgate to remove the old emblem. On some older models, you may need to drill a small hole in your tailgate to run the wiring through. Most 2006+ models come with the holes already drilled.
*Warning – the product may require modification to the tailgate. To check, remove the Ford Emblem and see if your tailgate has the cutouts for the mounting holes. If you do not see mounting holes behind the emblem, you will need to cut the tailgate to mount this backup camera.

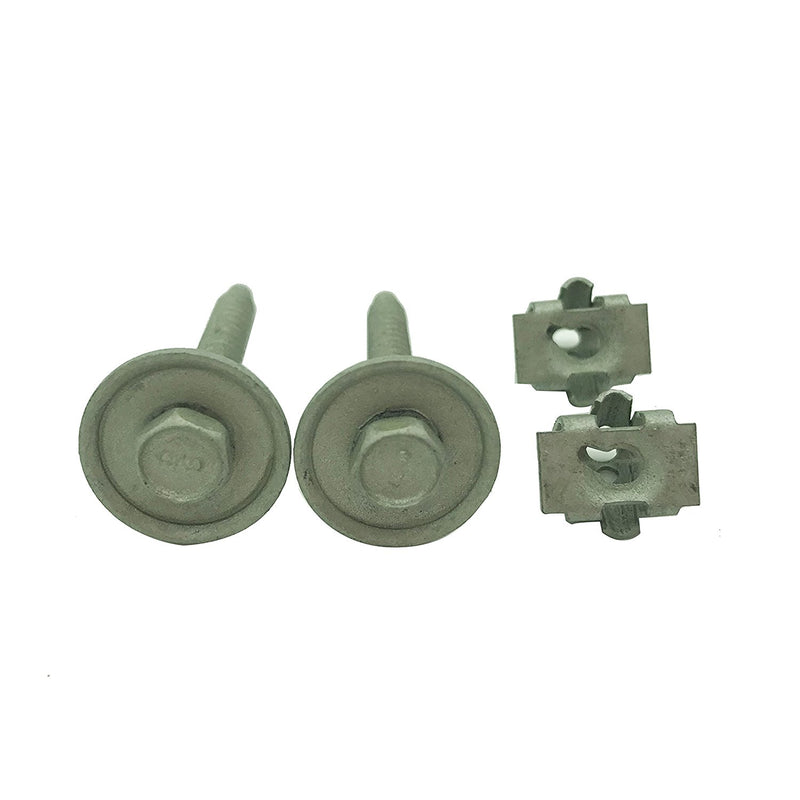

This is an aftermarket emblem and camera, not OEM. For the power supply, you can connect it to any 12V power source. For example, if you wanted the camera to always be on, you can connect it to a 12v source that is on all the time, or if you only want it when you reverse you can connect it to the reverse tail lights. Includes video cable 8 meters long to reach your monitor. Includes genuine Ford Mounting Screws and Clips.
- Sensor: ¼” On-Semi (USA) CMOS Active Pixel Array, Lens: Nidec (Japan) (Glass + Plastic)
- Minimum Illumination : .1 Lux light sensitivity
- Signal System : NTSC/PAL
- Effective Pixel : NTSC: 728 x 582, PAL: 728 x 512
- Video Output : 1.1Vp-p 75 Ohm
- Electronic Shutter : 1/50 to 1/100,000 seconds
- Resolution : 600 TV lines
- Angle : 170 Degree
- Waterproof Rate : IP68
- Current Consumption : 120mA Max.
- Power : DC 12V
- Cable Length : Video Cable: 8M

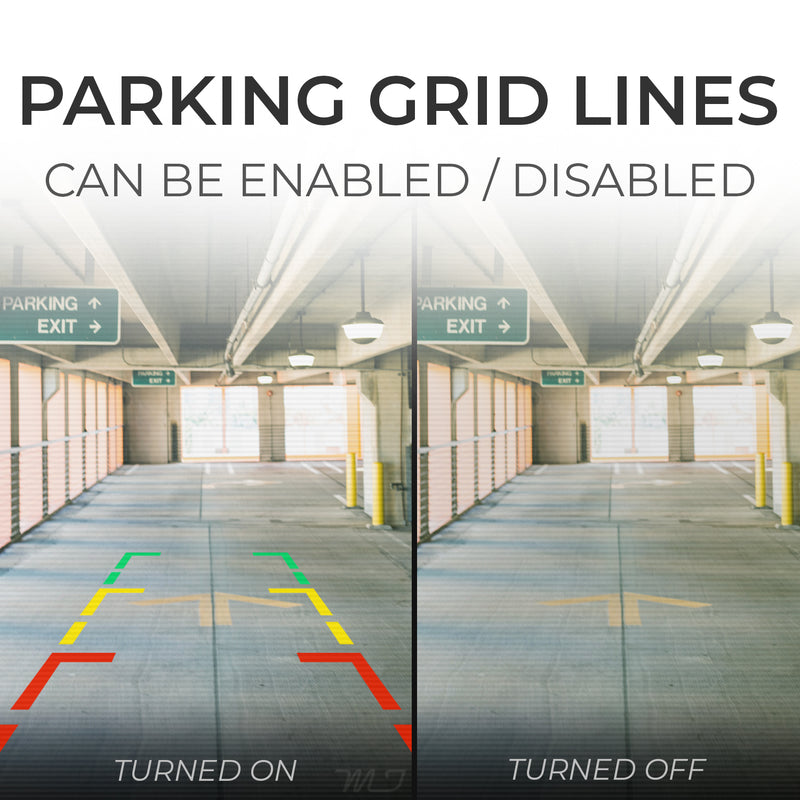

- Parking Grid Lines: Included with option to disable
-Before purchasing check the back of your Monitor/Screen that you have a Yellow RCA input for easy installation.
-This will not work as a replacement for OEM systems! If your truck has an existing OEM Backup Camera and you are looking for a replacement, this will not work!
This tailgate handle is not recommended to be installed with Factory Navigation/Monitor units. It is possible but requires professional installation.
BACKED BY A 2 YEAR NO QUESTIONS ASKED WARRANTY!!!
