2004-2016 Ford Emblem Backup Camera for F150 F250 F350 F450 F550

Product type: Rear View Monitors/Cams & Kits

SKU: MT-FE04C

Master Tailgaters Ford F150, F250, F350, F450, F550 Ford Emblem WITH Backup Reverse Camera (Full Color Camera)

COLOR: Chrome

For use with:

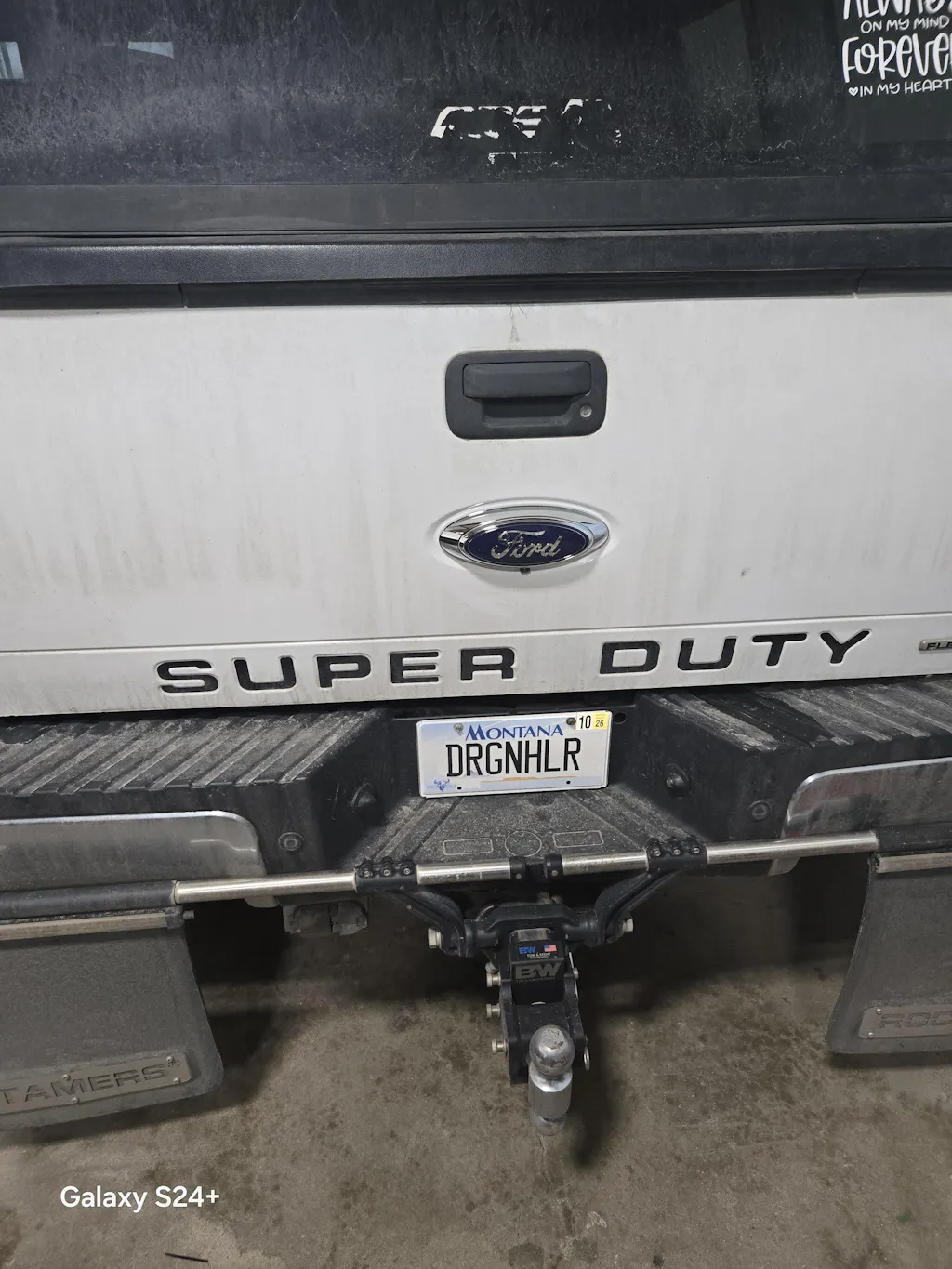

Ford Years 2004-2016 with 9 inch blue oval in the center of the tailgate (measure oval before purchasing)

Description:
This is an aftermarket emblem and camera, not OEM. For the power supply, you can connect it to any 12V power source. For example, if you wanted the camera to always be on, you can connect it to a 12v source that is on all the time, or if you only want it when you reverse you can connect it to the reverse taillights. Includes video and power extension cable, 8 Meters. Includes genuine Ford Mounting Screws and Clips.

Camera Specs:
Image sensor : 1/4" OV136 CCD Chip
Signal System : NTSC/PAL
Effective Pixel : NTSC: 728 x 582, PAL: 728 x 512
Minimum Illumination : 0.5 Lux
Video Output : 1.1Vp-p 75 Ohm
Electronic Shutter : 1/50 to 1/100,000 seconds
Resolution : 600 TV lines
Angle : 170 Degree
Waterproof Rate : IP68
Current Consumption : 120mA Max.
Power : DC 12V
Cable Length : Video Cable: 8M
Parking Grid Lines: Included with option to disable

Attention!!!:
-Before purchasing check the back of your Monitor/Screen that you have a Yellow RCA input for easy installation.


This tailgate handle is not recommended to be installed with Factory Navigation/Monitor units. It is possible but requires professional installation.



BACKED BY A 5 YEAR NO QUESTIONS ASKED WARRANTY!!!
