Jeep Wrangler Spare Tire Mount with Backup Camera


SALE $79.99 MSRP $120.99

local_shipping  FREE SHIPPING      verified_user 2 YEAR WARRANTY

Master Tailgaters Jeep Wrangler

Spare Tire Mount Backup Camera (Full Color Camera)

COLOR: Black

For use with:
Jeep Wrangler

This is an aftermarket Spare Tire Mount Backup Camera, not OEM. For the power supply, you can connect it to any 12V power source. For example, if you wanted the camera to always be on, you can connect it to a 12V source that is on all the time, or if you only want it when you reverse you can connect it to the reverse taillights. Includes video and power extension cable, 6 Meters.
Provides a clear view of nearby backup surroundings.

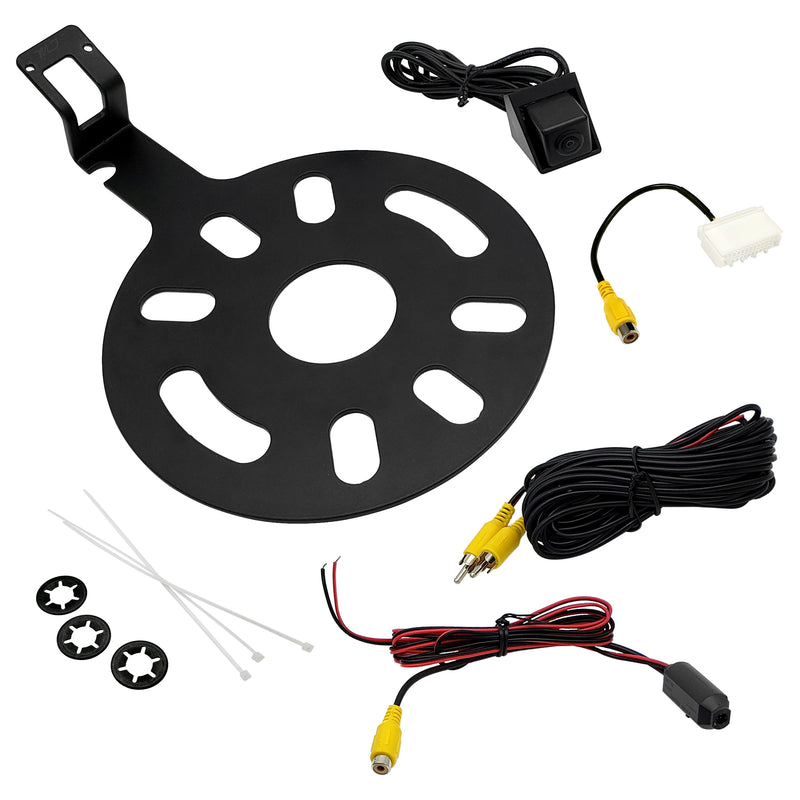

Product Accessories:
Our Spare Tire Mount Backup Camera comes with a 1M power line, 6M video and power extension cable, spare tire mount and backup camera.
Everything you'll need for installation!

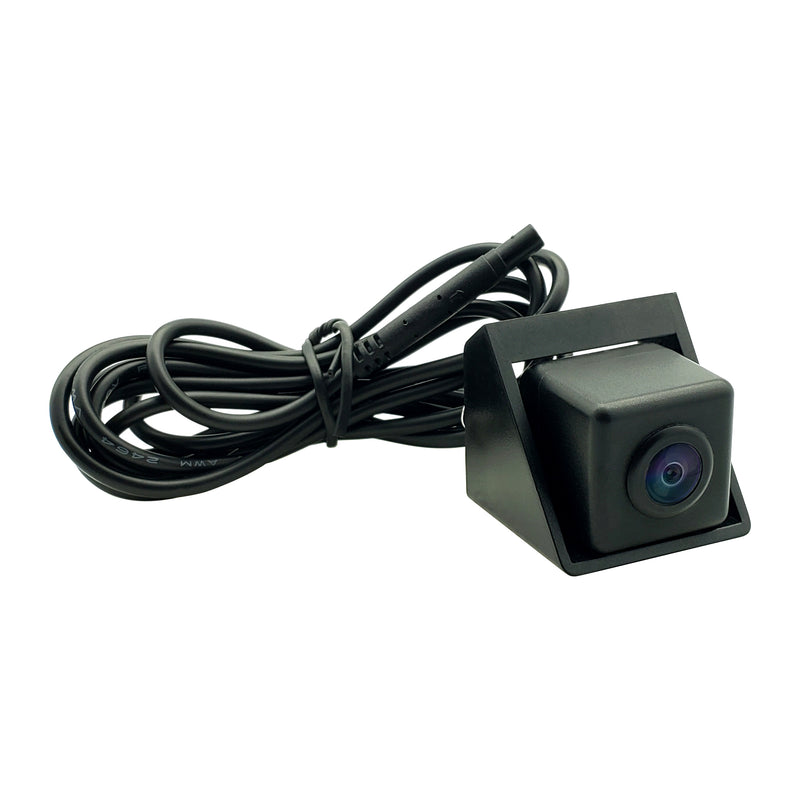

The Camera:
The most important feature of this Spare Tire Mount Backup Camera is the camera.
Master Tailgaters is dedicated to providing the best camera: clarity, dependability and longevity.
Each Camera is manufactured to provide a clear image. Not all cameras are made the same and we know that which is why Master Tailgaters never cuts any corners. In order to ensure a quality product, our cameras are double checked prior to shipping.
Our cameras are designed to work in low light settings. We know that backing up at night deserves a clear and safe picture of your surroundings.

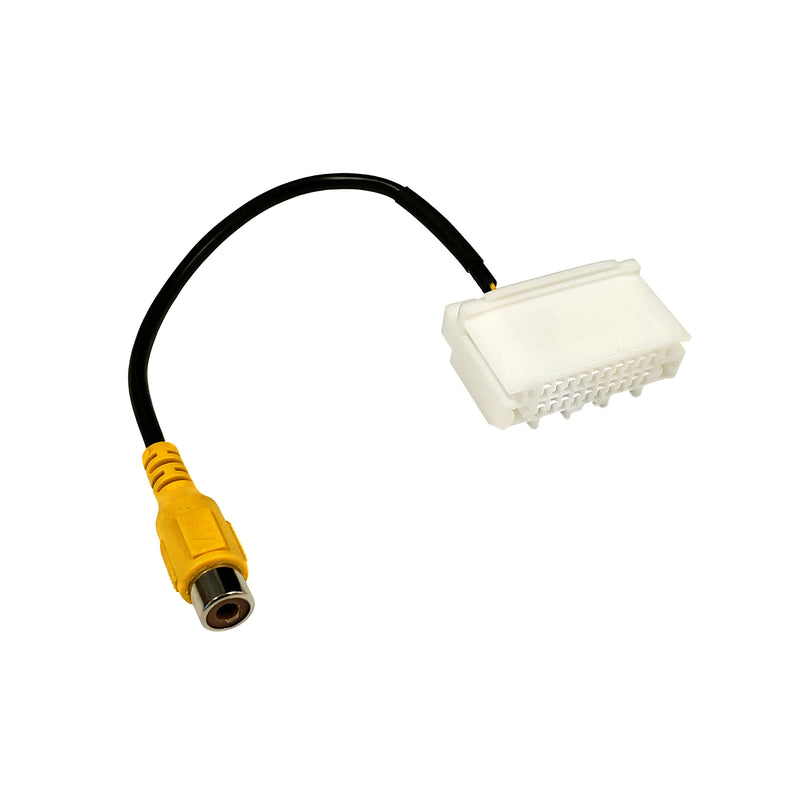

OEM Monitor Adapter:
Allows the use of our aftermarket camera on OEM monitor systems.

Works on:

  • JEEP Commander (2008-2010)
  • JEEP Compass (2009-UP)
  • JEEP Grand Cherokee (2008-2013)
  • JEEP Liberty (2008-2013)
  • JEEP Patriot (2009-2015)
  • JEEP Wrangler (2007-UP)


  • Requires CANBUS interface to operate, 22-pin GMLAN RSE harness
  • Retains factory backup camera when factory radio is replaced with an aftermarket radio


  • 1M Power Line, 6M Video and Power Extension Cable, Spare Tire Mount and Backup Camera
  • Before purchasing, check the back of your Monitor/Screen that you have a Yellow RCA input for easy installation.
  • Make sure to compare photos to your own spare tire mount, if it looks different then it will NOT fit.
  • This Spare Tire Mount Backup Camera is not recommended to be installed with Factory Navigation/Monitor units. It is possible but requires professional installation.
  • Prior to installing and running all wiring, double check to make sure everything is in proper working order.


  • Sensor: ¼” On-Semi (USA) CMOS Active Pixel Array, Lens: Nidec (Japan) (Glass + Plastic)
  • Minimum Illumination : .1 Lux light sensitivity
  • Effective Pixel: NTSC: 752×494 pixels
  • Resolution : 600 TV line
  • Angle: 170 Degrees
  • Waterproof Rate: IP68
  • Power Voltage: 12V
  • Cable Length: 6M
  • Shell Material: Metal


[FITS]: Jeep Wrangler (Years: 2007+)
[RESOLUTION]: 600 TV Lines, [ANGLE]: Wide View 170 Degrees
[OEM MONITOR ADAPTER]: Allows use of our aftermarket camera on OEM monitor systems (MyGig Radio)
[NOTE***]: There are many knock offs of this product that use inferior parts which we do not endorse. Although the handle, camera and images may look similar, they are not the same and not a Master Tailgaters product.
