Chevrolet Avalanche 2007-2013 / Cadillac Escalade 2007-2014 Black Tailgate Handle
local_shipping FREE SHIPPING
Master Tailgaters Black Tailgate Handle with Backup Camera Replacement for Chevrolet Avalanche 2007-2013 / Cadillac Escalade 2007-2014

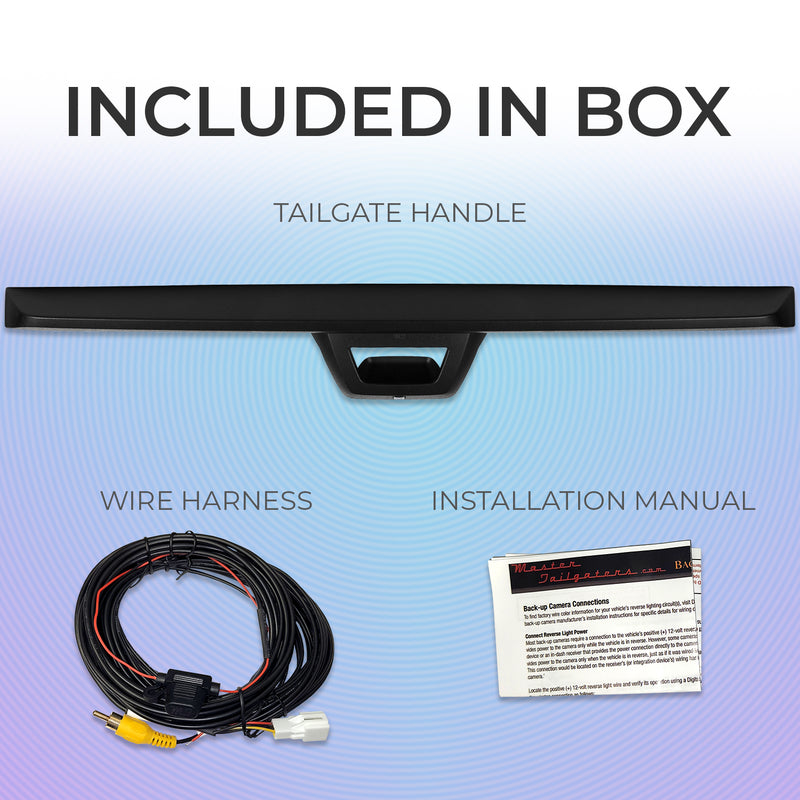

For use with:
- Chevrolet Avalanche 2007-2013
- Cadillac Escalade 2007-2014
- Tailgate Handle with Backup Reverse Camera
- 26 Foot Video and Power Cable
- Installation Instructions
- 2 YEAR NO QUESTIONS ASKED WARRANTY
This camera connects to any 12V power source. For example, if you wanted the camera to always be on, you can connect it to a 12V source that is on all the time, or if you only want it when you reverse you can connect it to the reverse tail lights.
This is an aftermarket tailgate and camera, not OEM. If you plan to install this in a factory radio you most likely will need another connector (not provided).Camera Specs:
- Image sensor: 1/3" Sony CCD Chip
- Signal System: NTSC/PAL
- Effective Pixels: 728 x 582
- Minimum Illumination: 0.5 Lux
- Electronic Shutter: 1/50 to 1/100,000 seconds
- Resolution: 600 TV lines
- Angle: 170 Degrees
- Waterproof Rating: IP68
- Power: DC 12V
- Video Cable: 26 Feet (8 Meters)
-Before purchasing check the back of your Monitor/Screen that you have a Yellow RCA input for easy installation.
-Installation is still possible without the Yellow RCA, however it is much more difficult and will require a professional to splice in the Video In signal.
