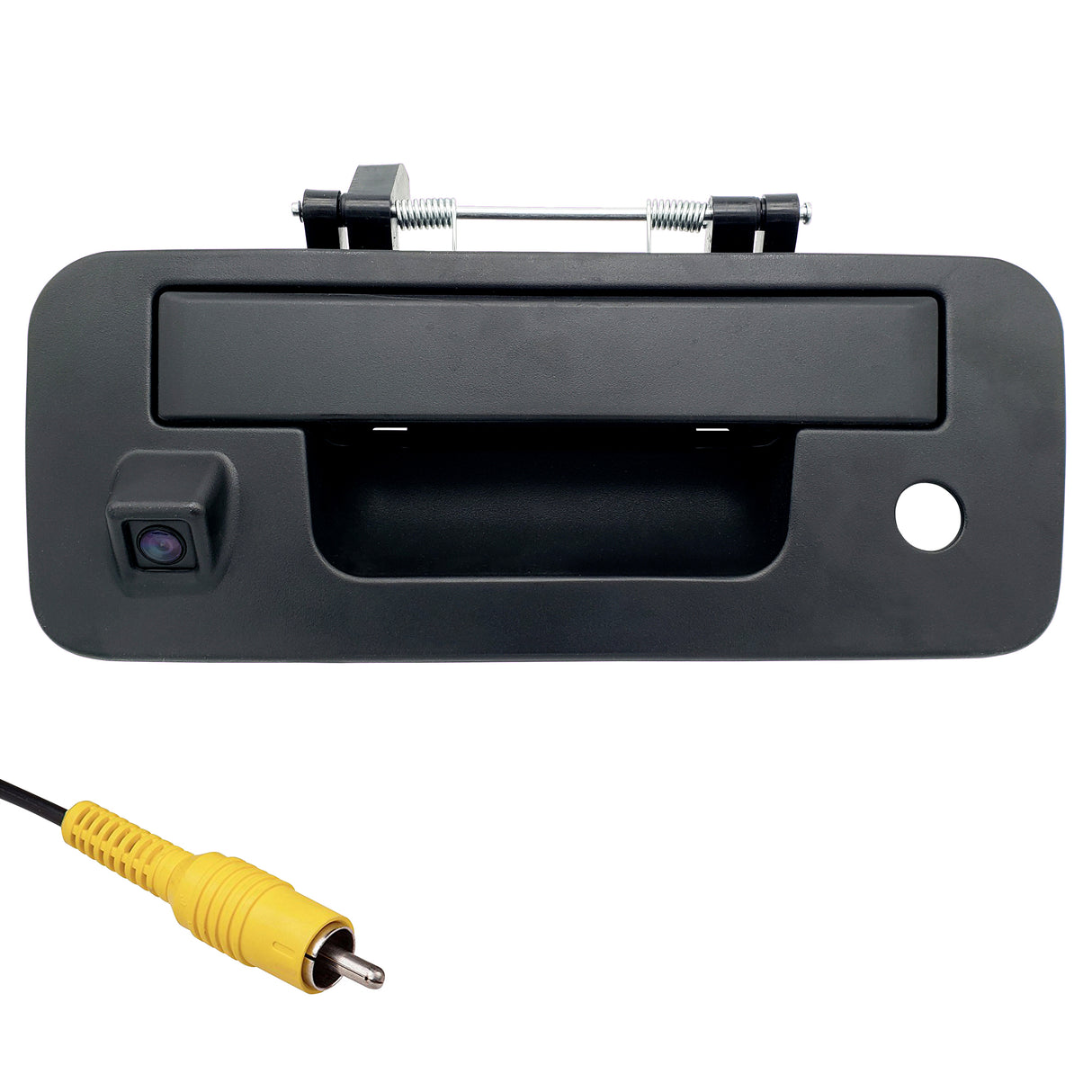

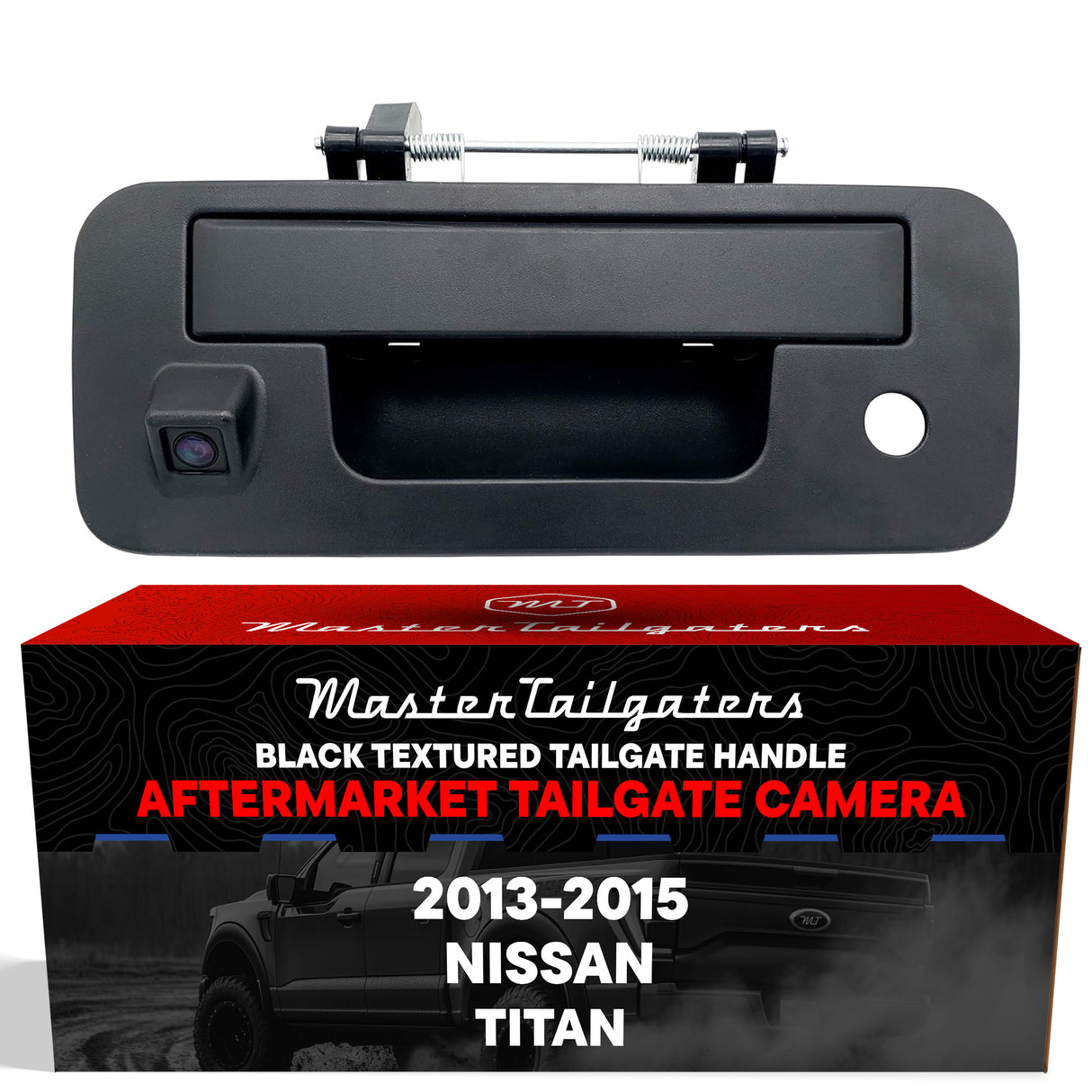

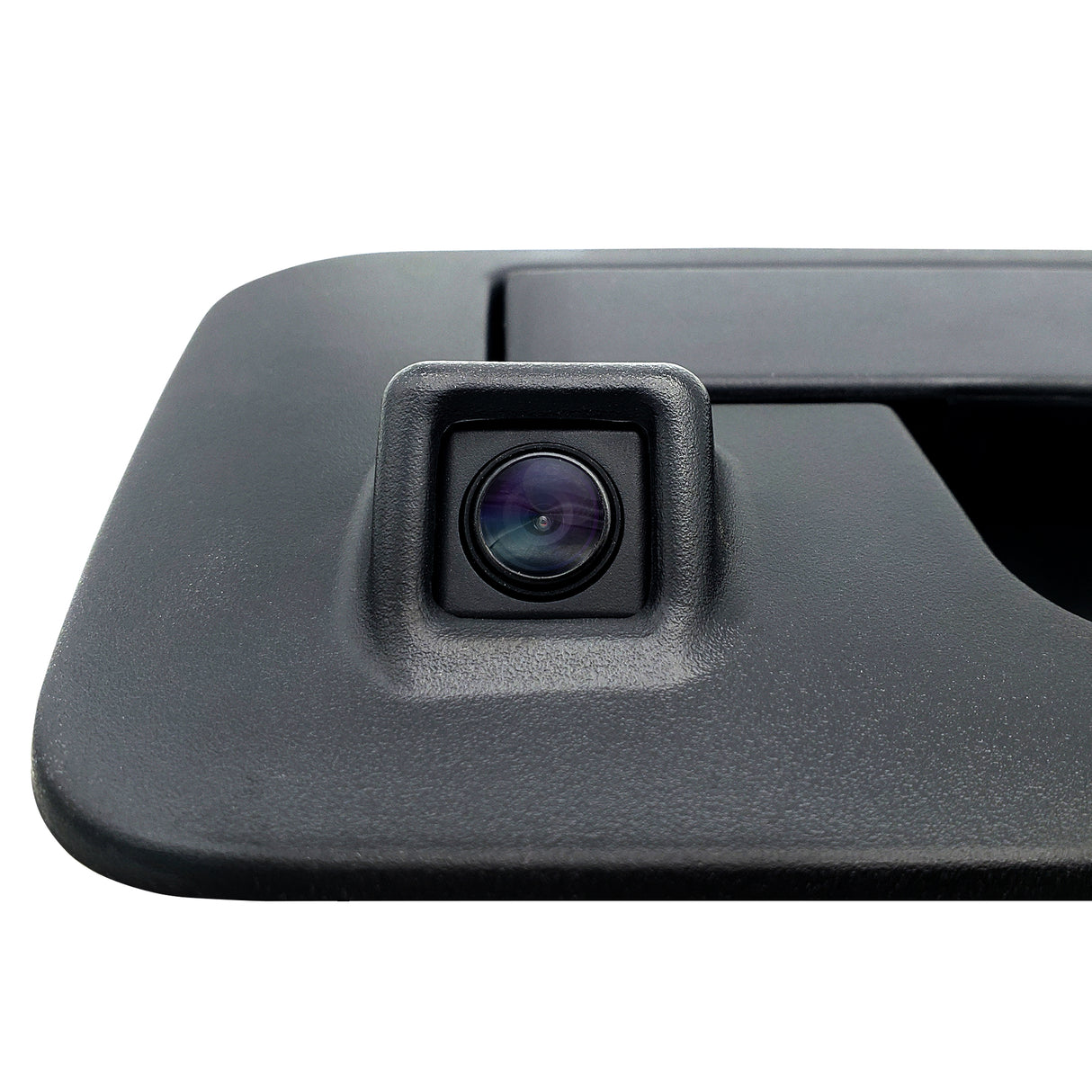

Tailgate WITH Backup Reverse Camera (Full Color Camera)
For use with: Nissan Titan 2013-2015

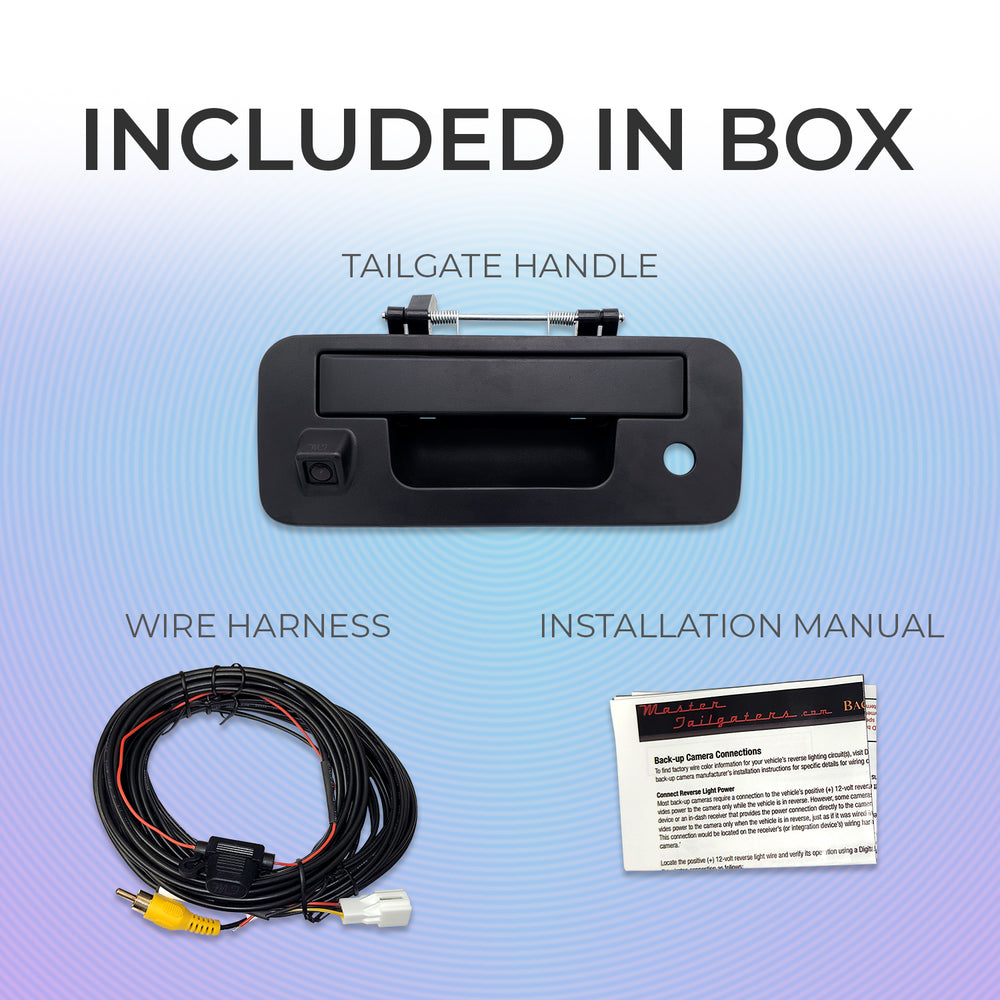

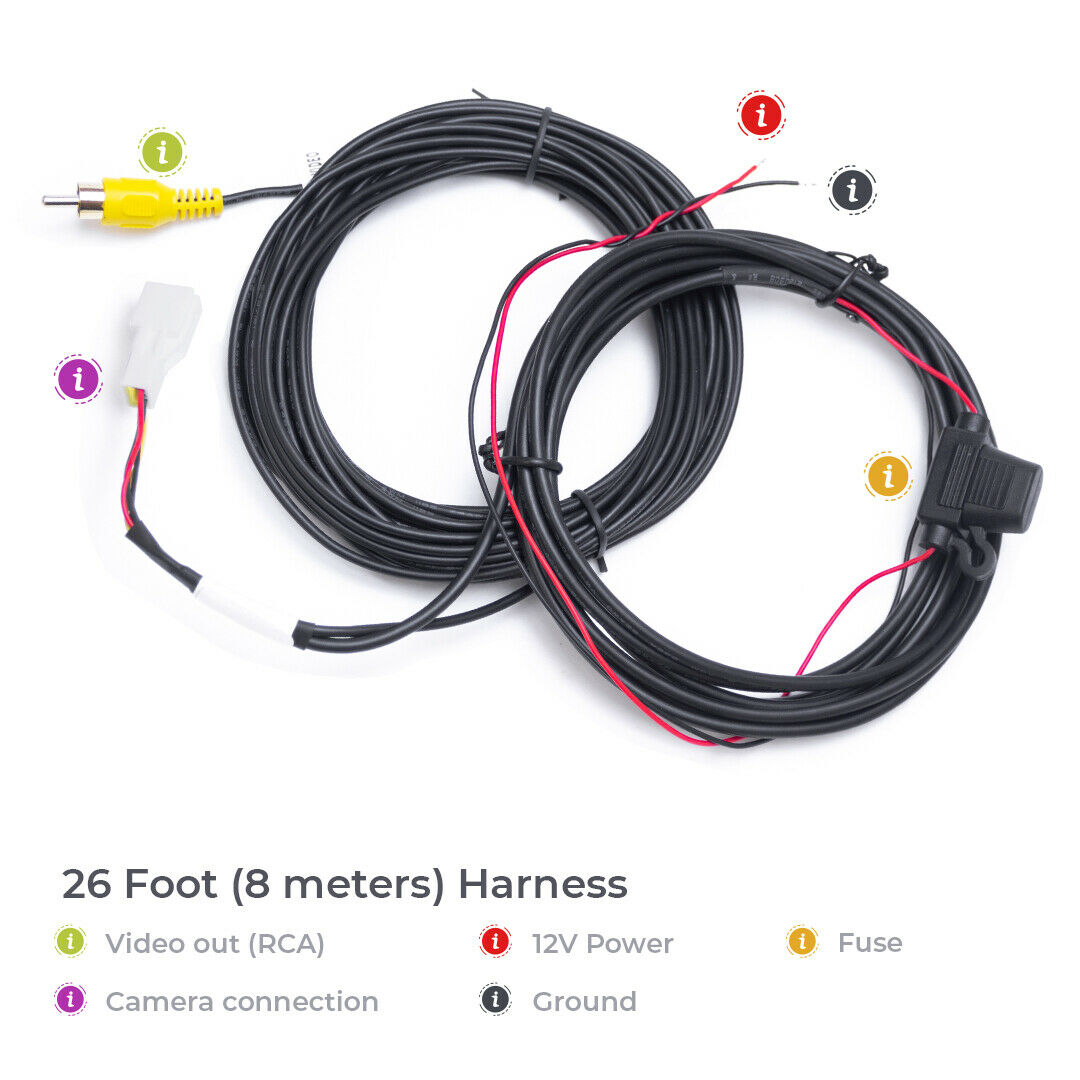

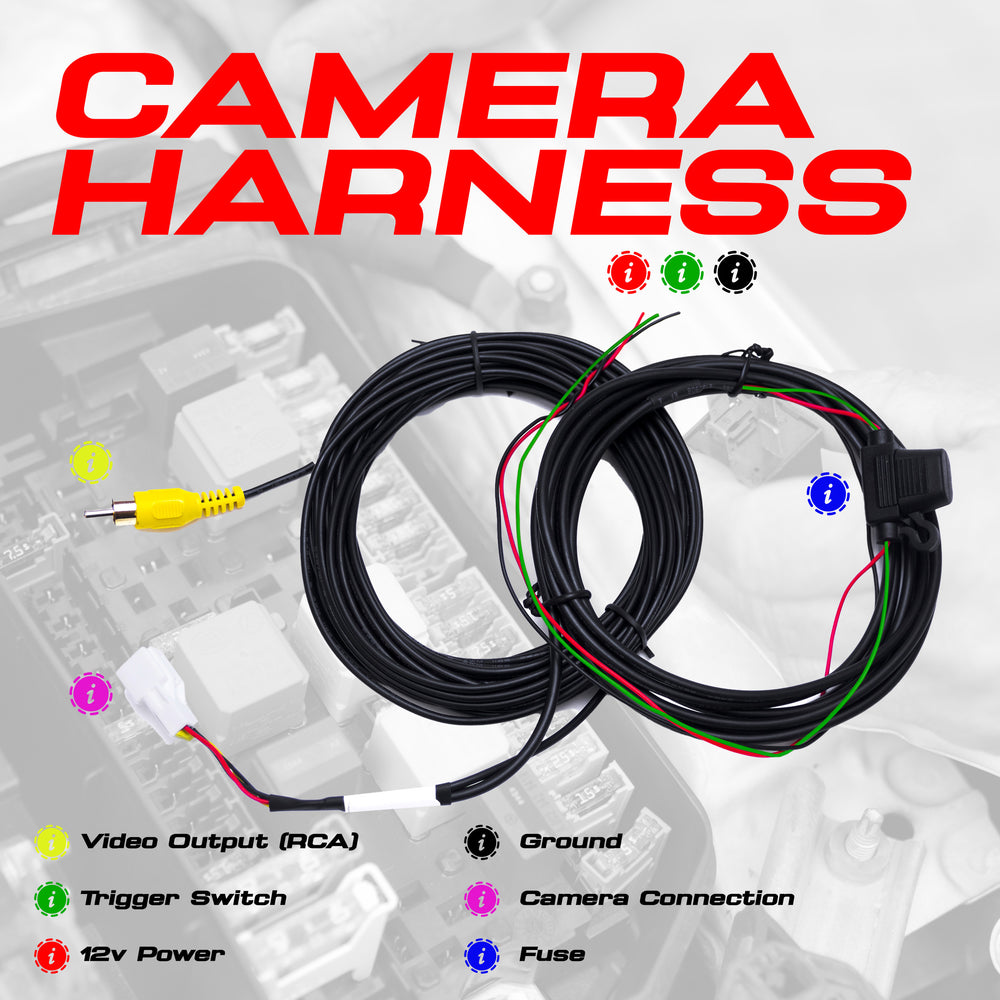

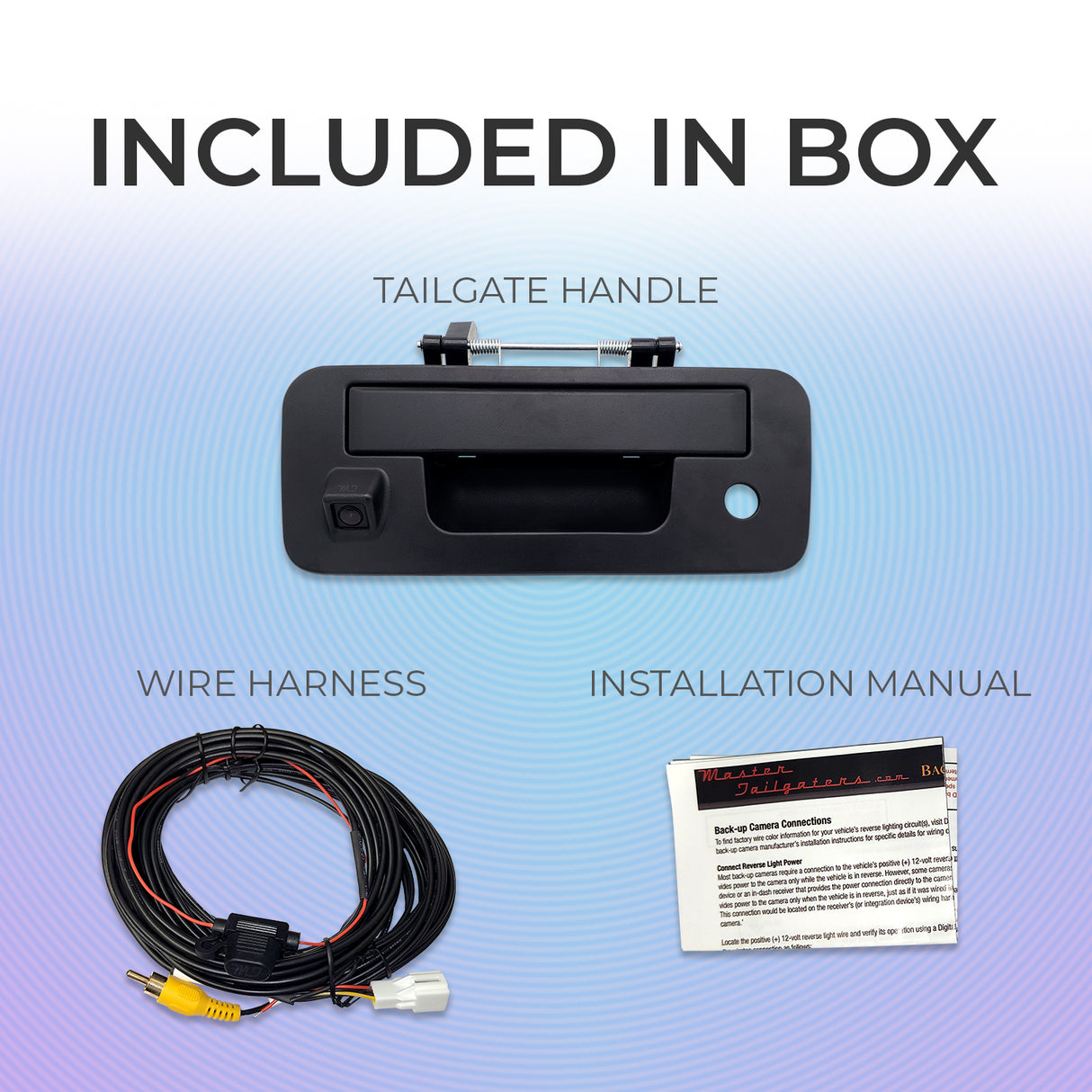

This is an aftermarket tailgate and camera, not OEM. For the power supply, you can connect it to any 12V power source. For example, if you wanted the camera to always be on, you can connect it to a 12v source that is on all the time, or if you only want it when you reverse you can connect it to the reverse taillights. Includes video and power extension cable, 8 Meters.

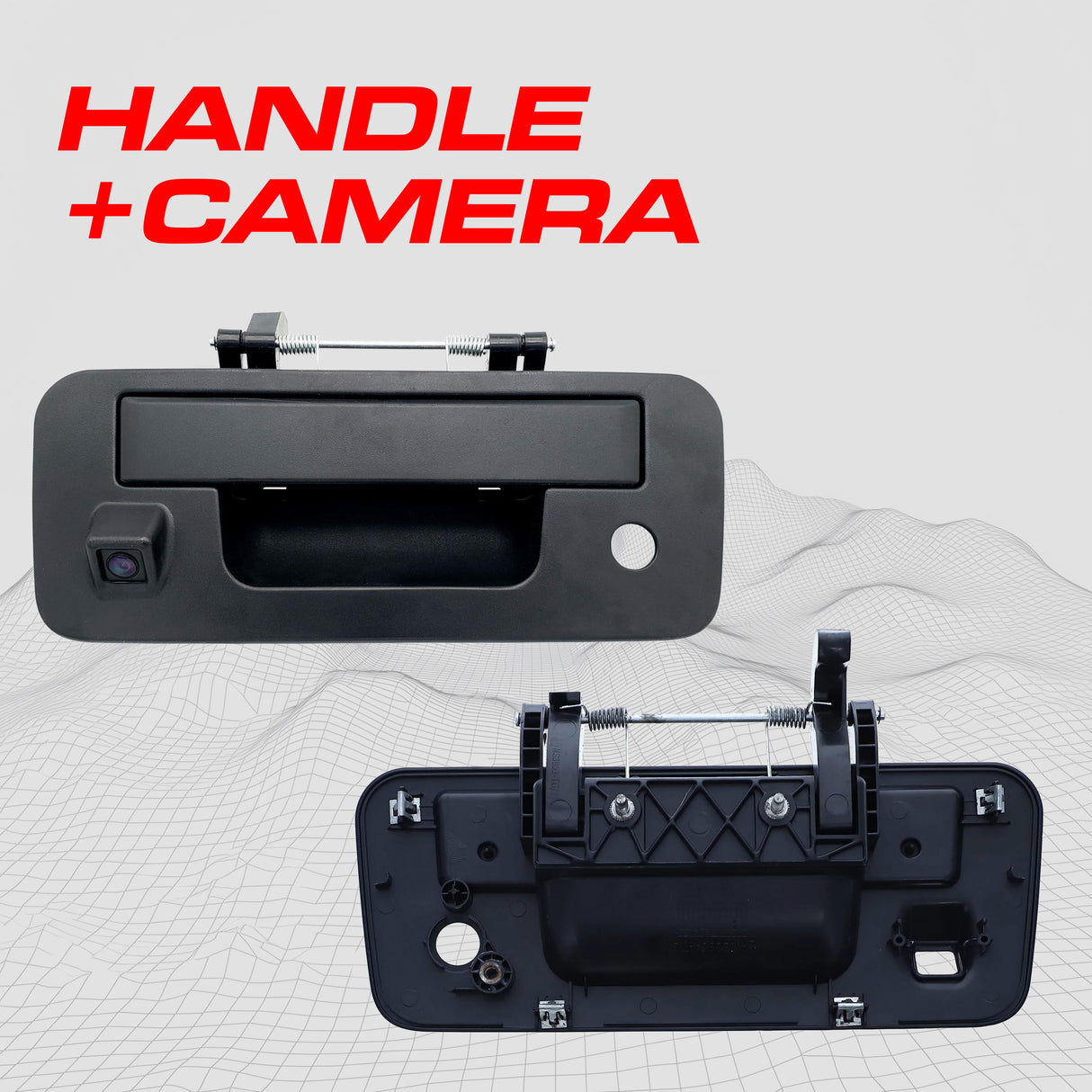

Each Tailgate Handle is manufactured to provide an OEM fit and finish. The camera plugs directly into your RCA input.
Note: not designed for OEM factory monitors/screens

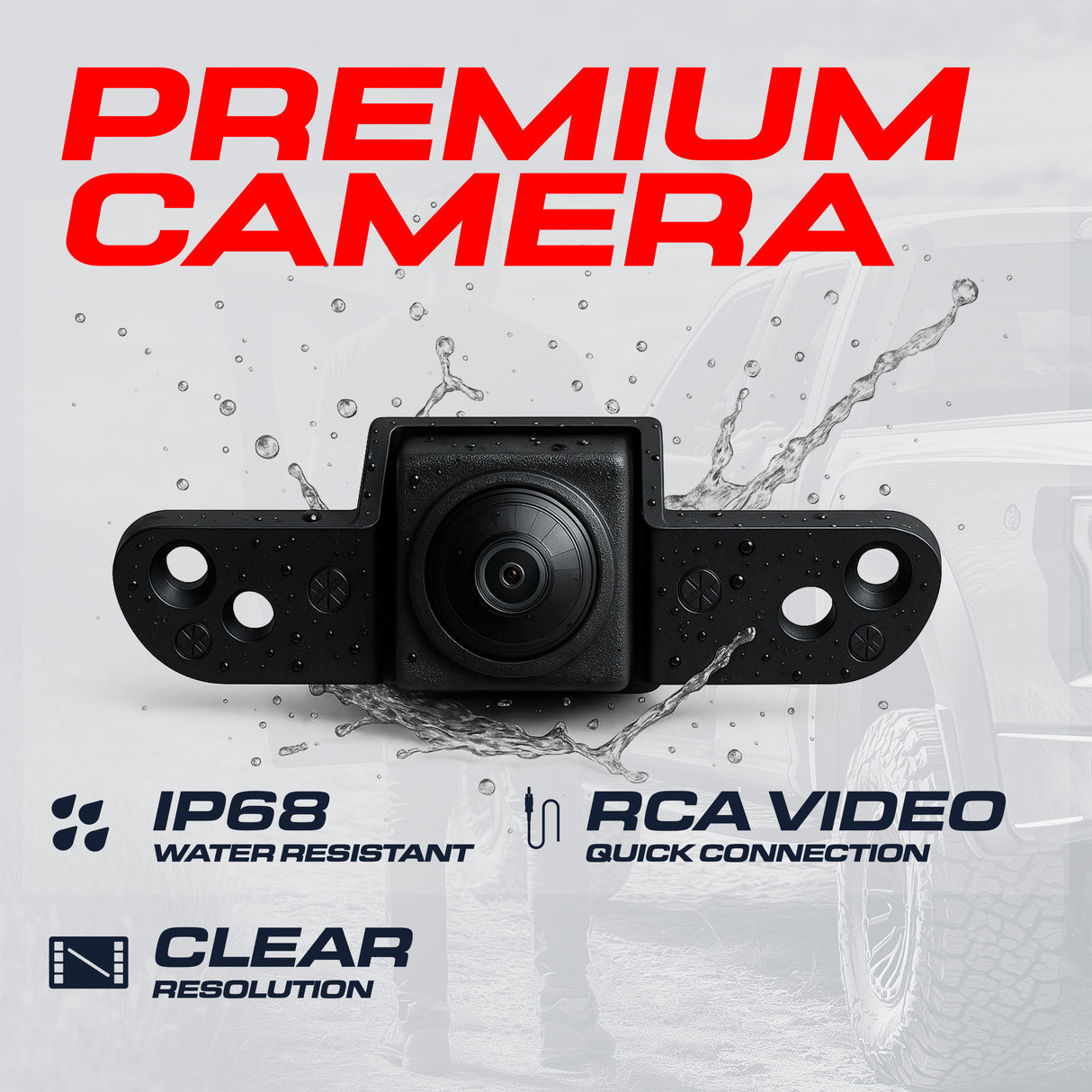

Image sensor : 1/4" OV136 CCD Chip;
Signal System : NTSC/PAL;
Effective Pixel : NTSC: 728 x 582, PAL: 728 x 512;
Minimum Illumination : 0.5 Lux
Video Output : 1.1Vp-p 75 Ohm;
Electronic Shutter : 1/50 to 1/100,000 seconds;
Resolution : 600 TV line;

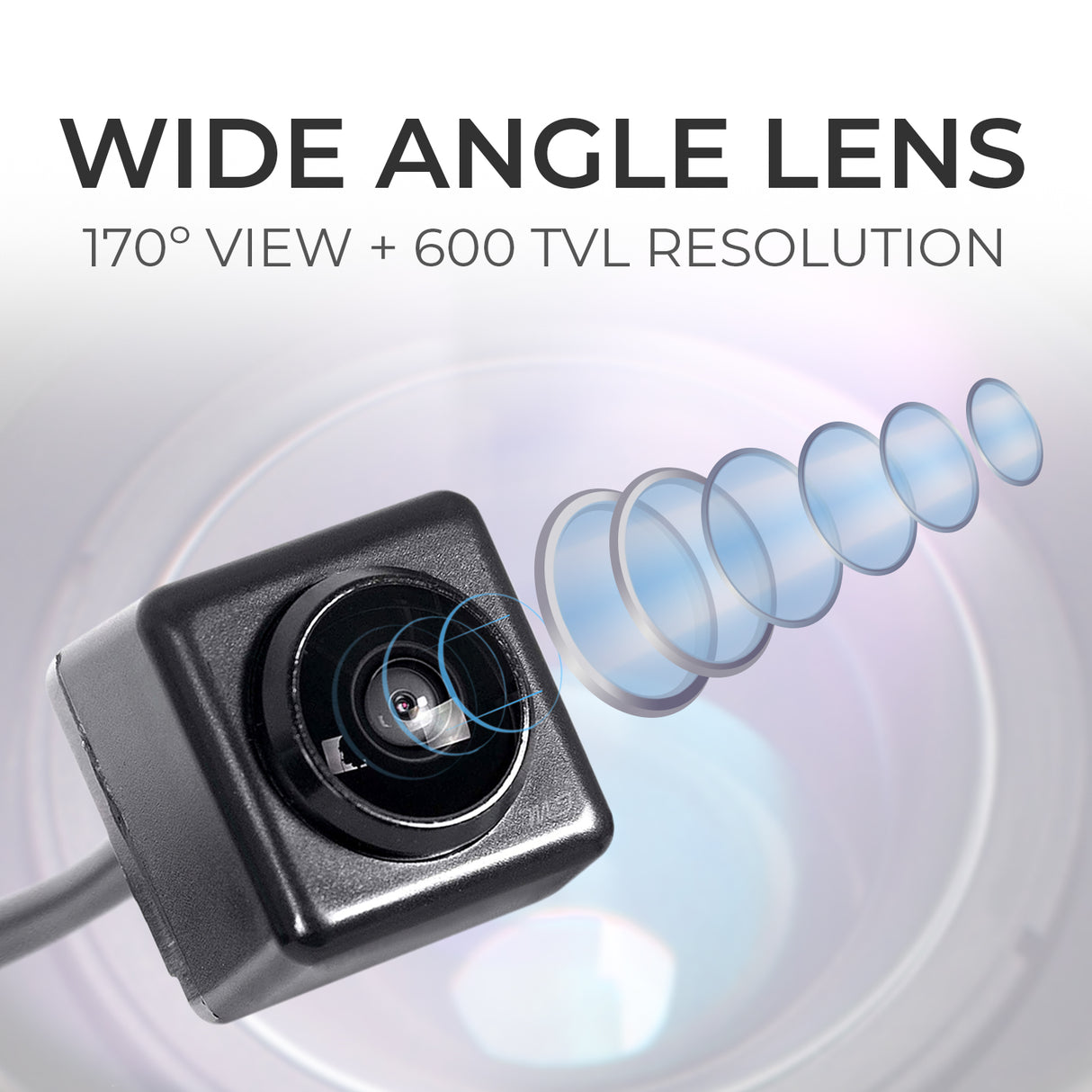

Angle : 170 Degree;

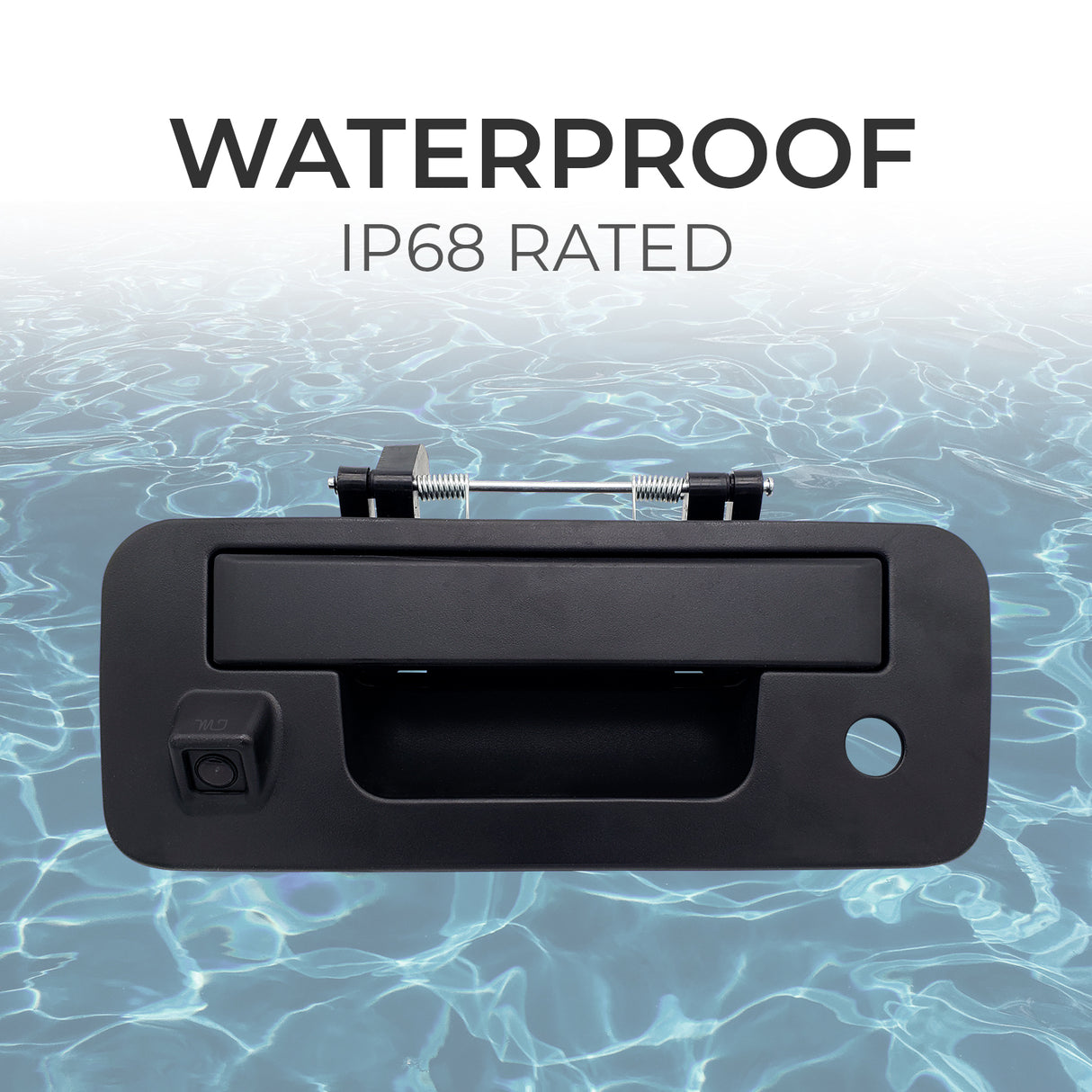

Waterproof Rate : IP68
Current Consumption : 120mA Max.;
Power : DC 12VÂ±10%;
Operating Temperature : -20-+75 Celsius Degree (RH95% Max);
Storage Temperature : -40-+85 Celsius Degree (RH95% Max);
Cable Length : Video Cable: 8M
-Before purchasing check the back of your Monitor/Screen that you have a Yellow RCA input for easy installation.
-Installation is still possible without the Yellow RCA, however it is much more difficult and will require a professional to splice in the Video In signal.
BACKED BY A 3 YEAR NO QUESTIONS ASKED WARRANTY!!!
