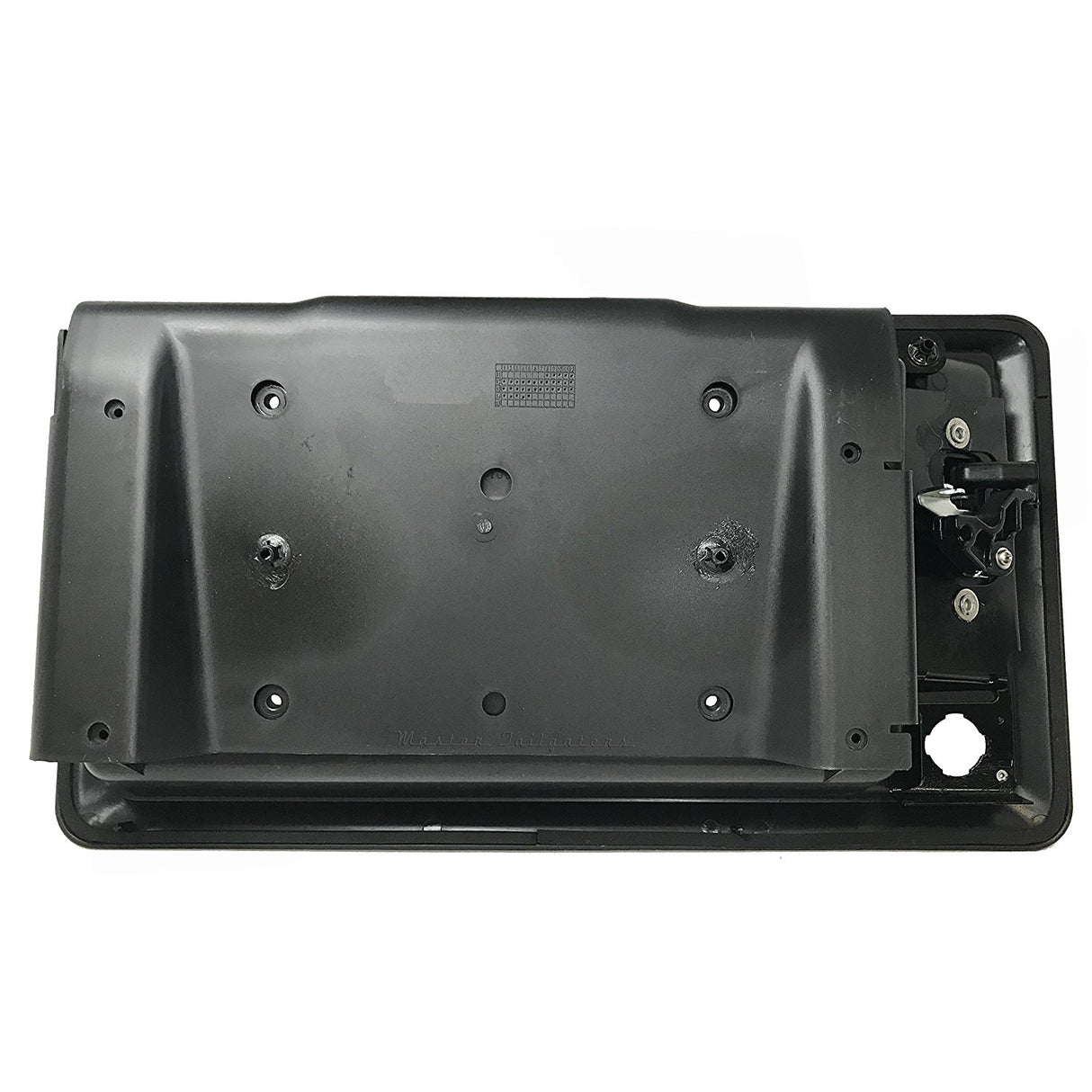

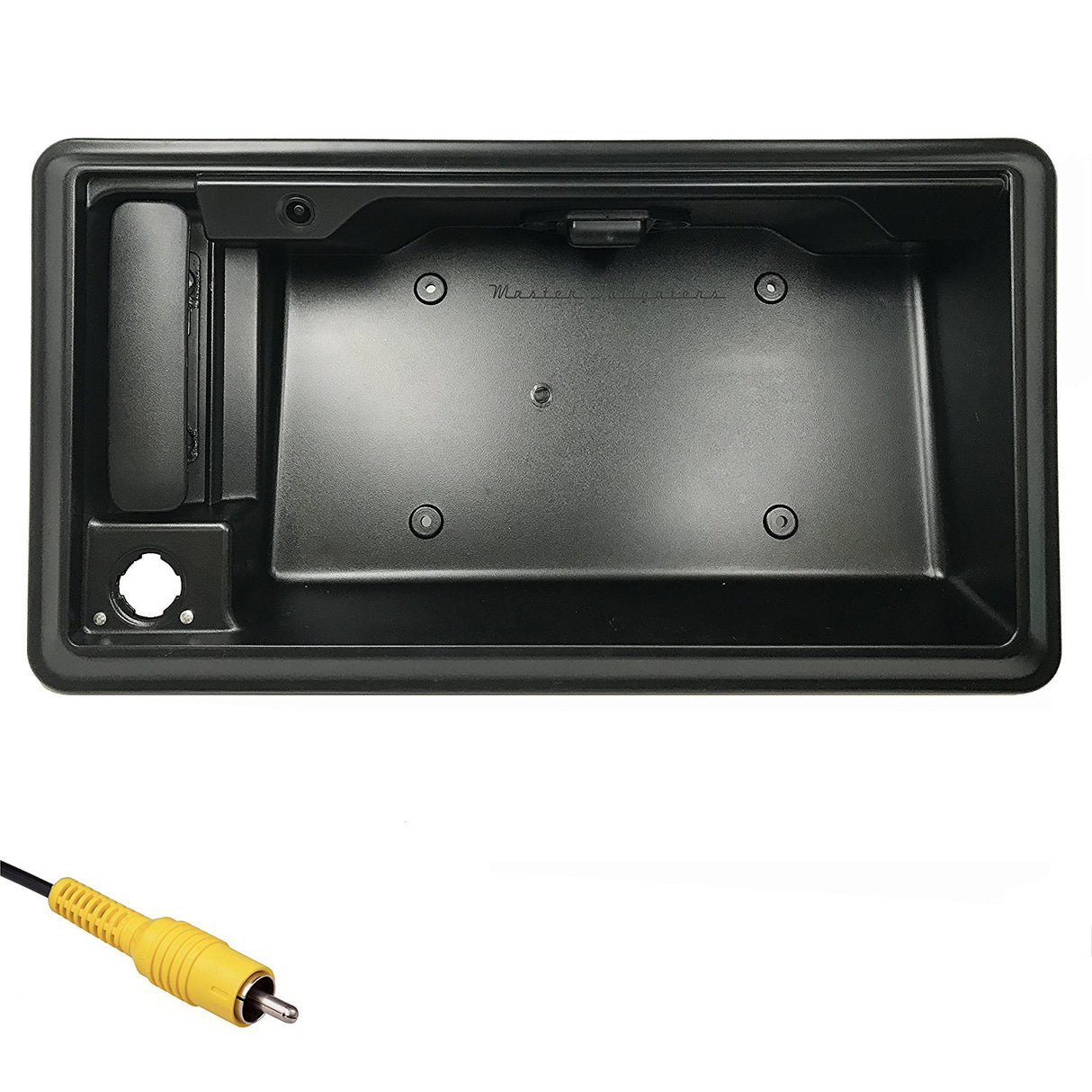

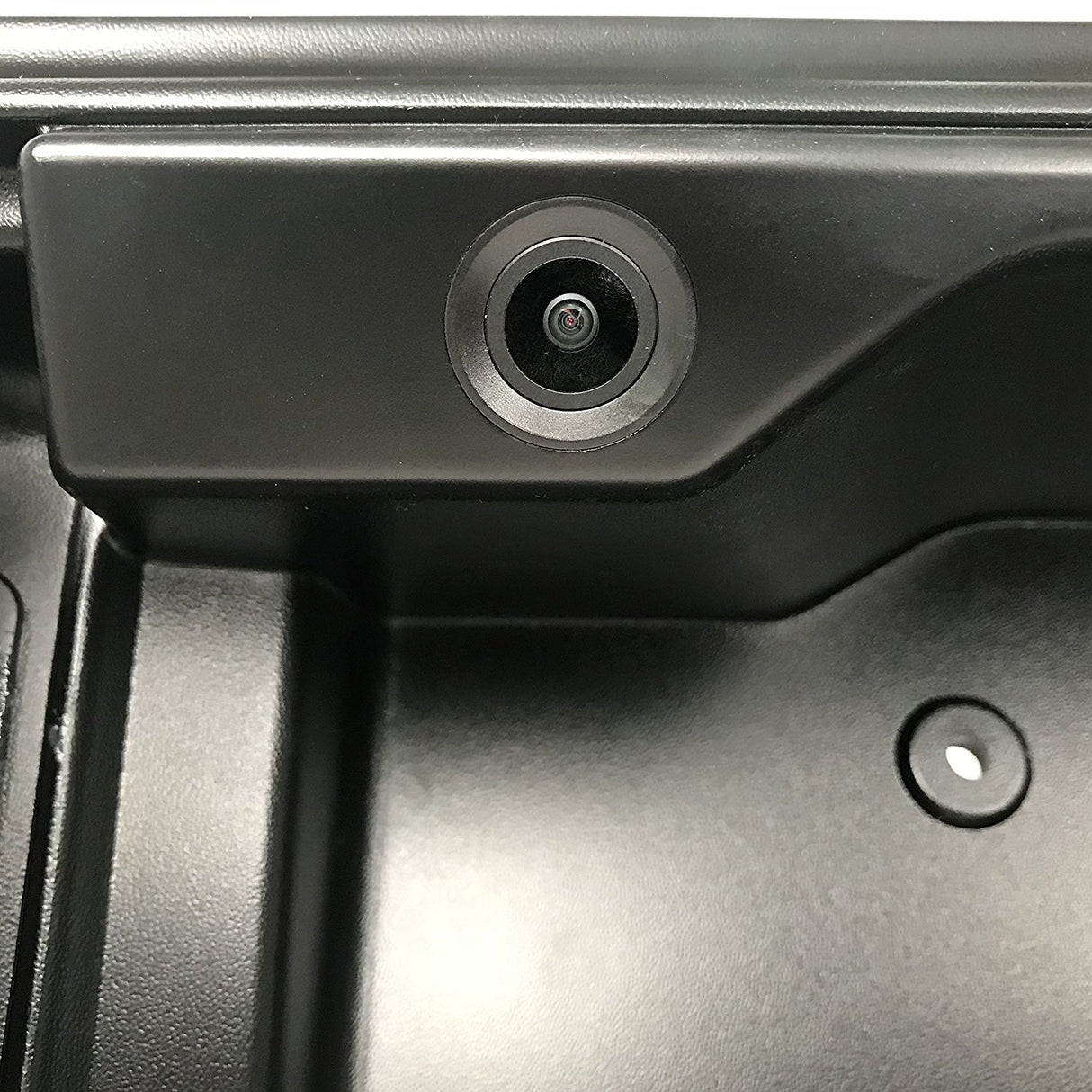

Cargo Door Van Handle WITH Backup Reverse Camera ( Full Color Camera)
For use with (Years):
Econoline E150, E250, E350, E450 (2008-Current)

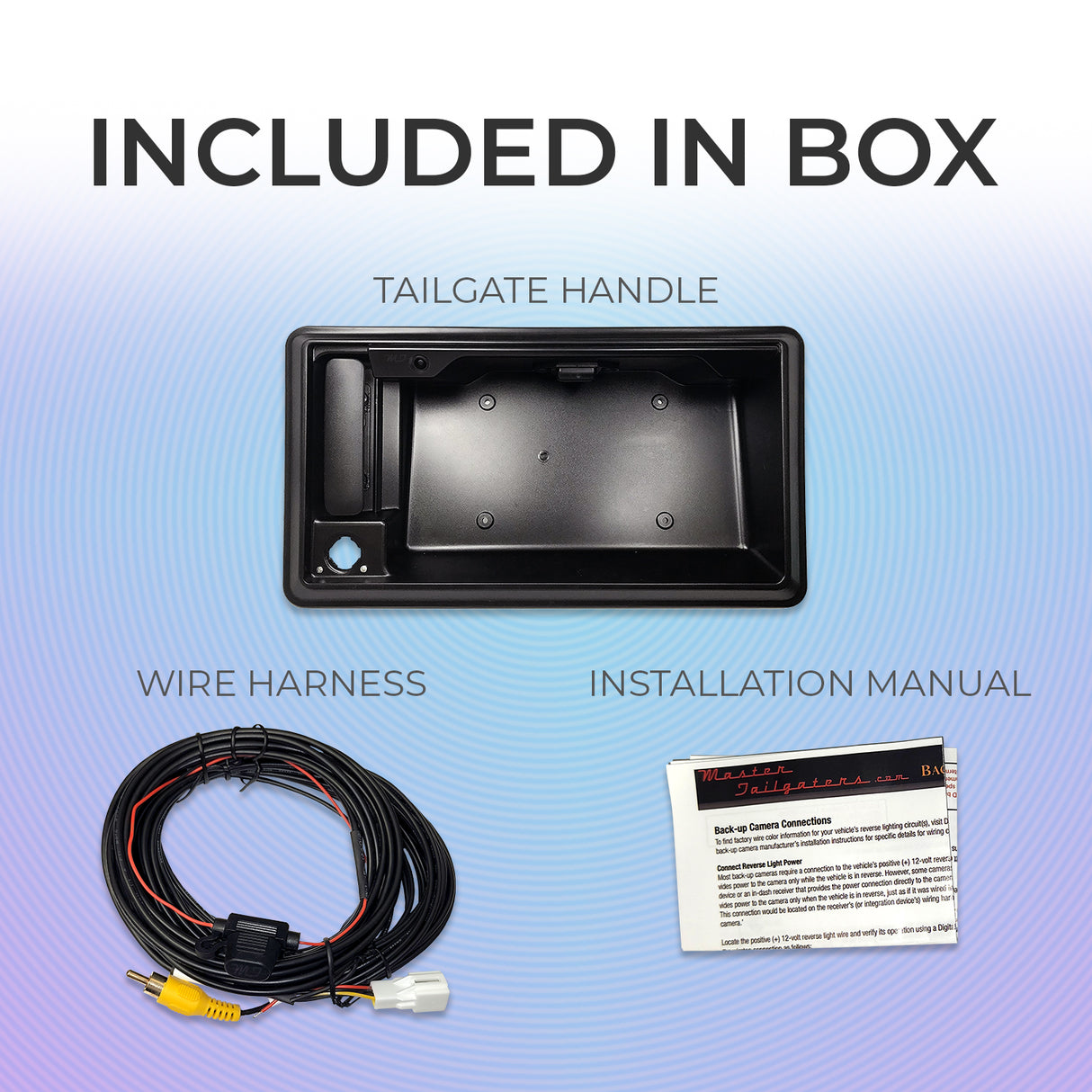

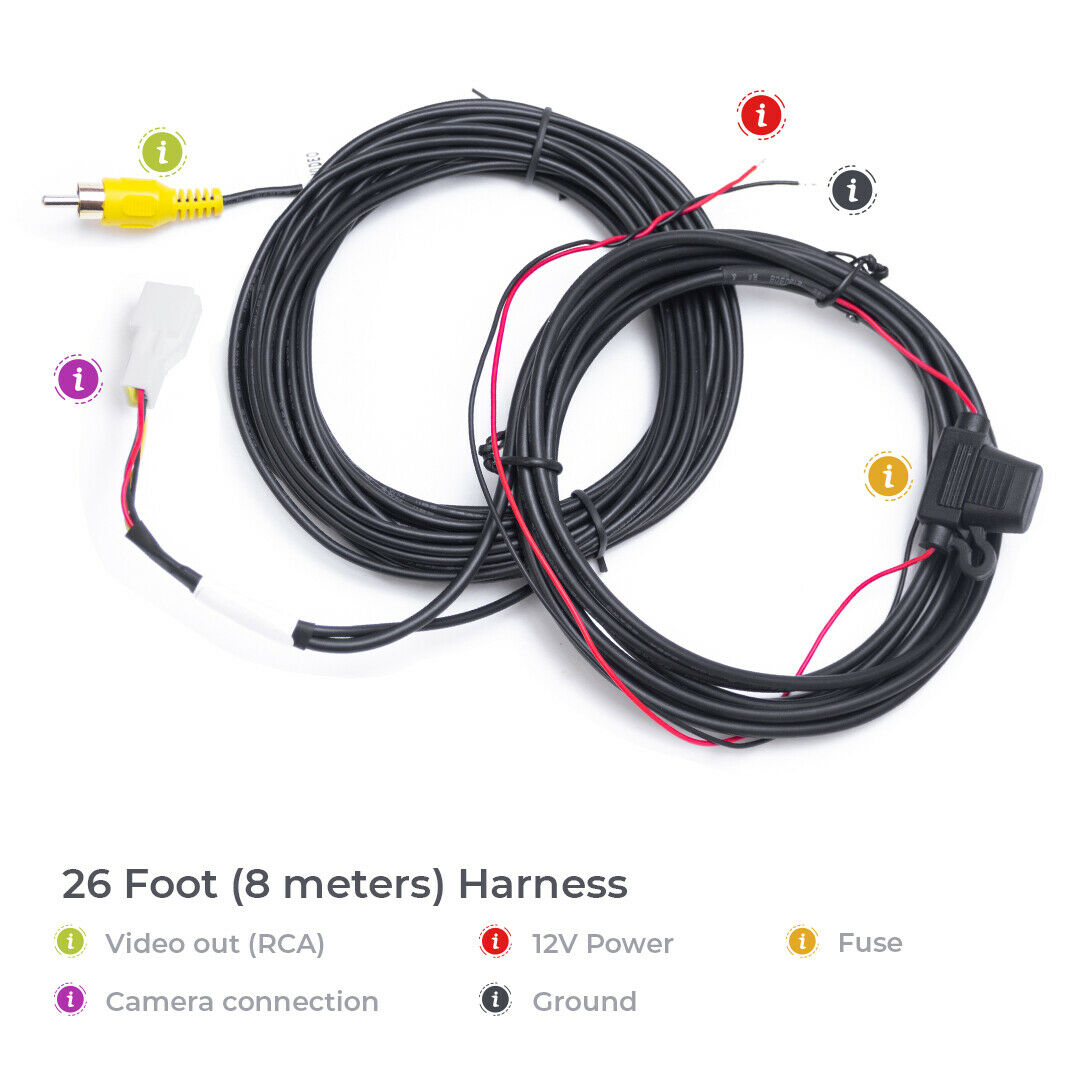

This is an aftermarket tailgate and camera, not OEM. For the power supply, you can connect it to any 12V power source. For example, if you wanted the camera to always be on, you can connect it to a 12v source that is on all the time, or if you only want it when you reverse you can connect it to the reverse taillights. Includes video and power extension cable, 8 Meters(26 feet).
Image sensor : 1/4" OV136 CCD Chip
Signal System : NTSC/PAL
Effective Pixel : NTSC: 728 x 582, PAL: 728 x 512
Minimum Illumination : 0.5 Lux
Video Output : 1.1Vp-p 75 Ohm
Electronic Shutter : 1/50 to 1/100,000 seconds
Resolution : 600 TV lines

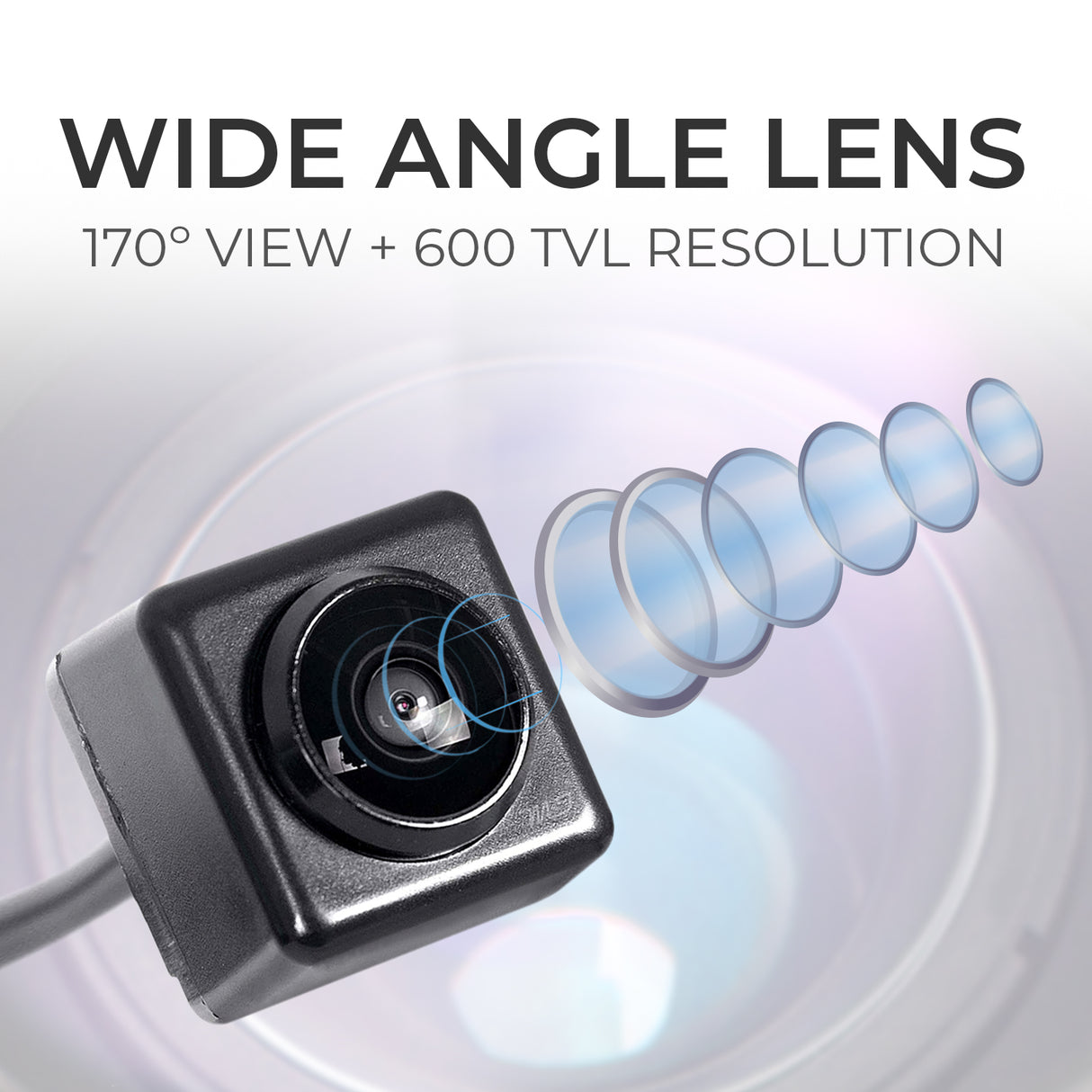

Angle : 170 Degree

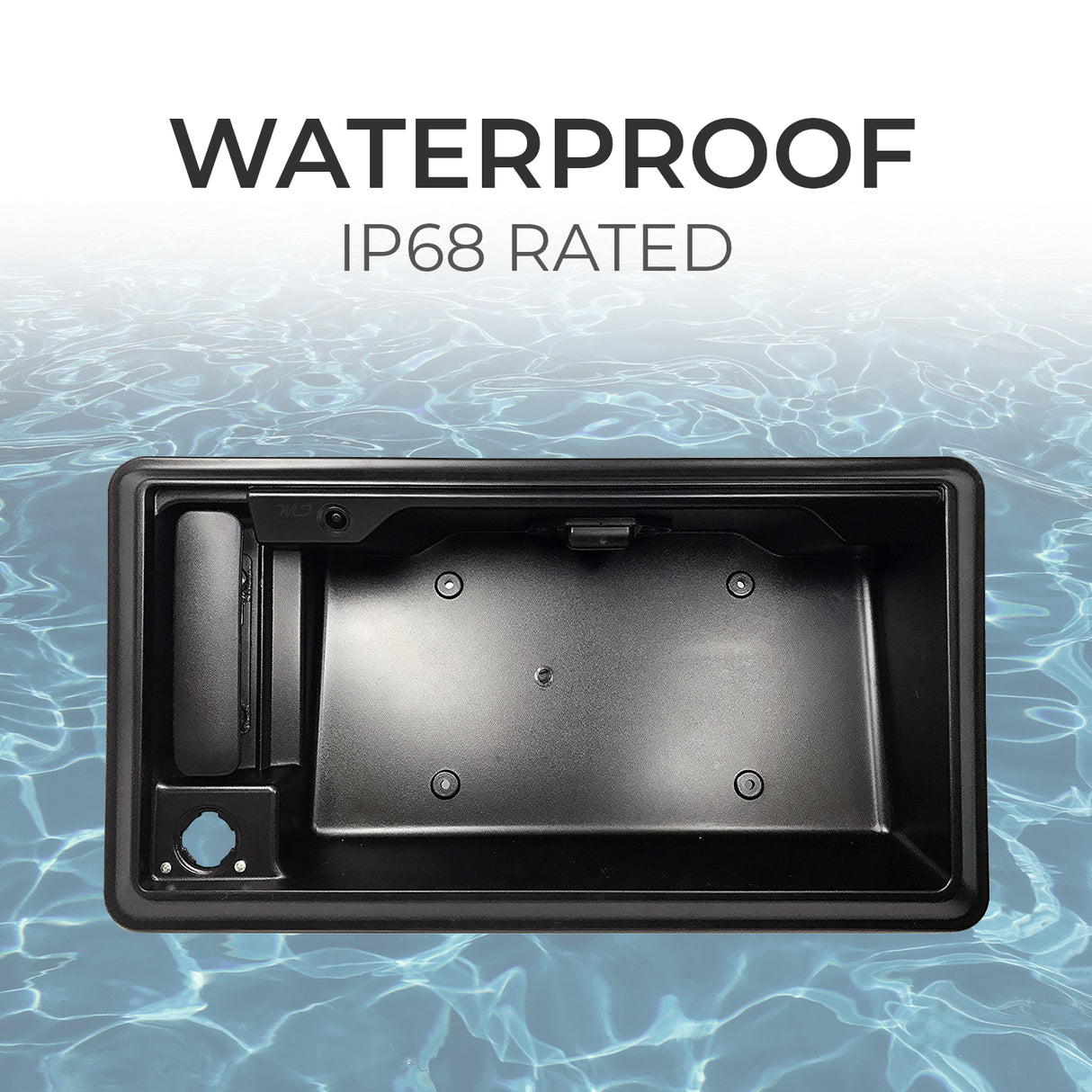

Waterproof Rate : IP68
Current Consumption : 120mA Max.
Power : DC 12V
Cable Length : Video Cable 8 Meters

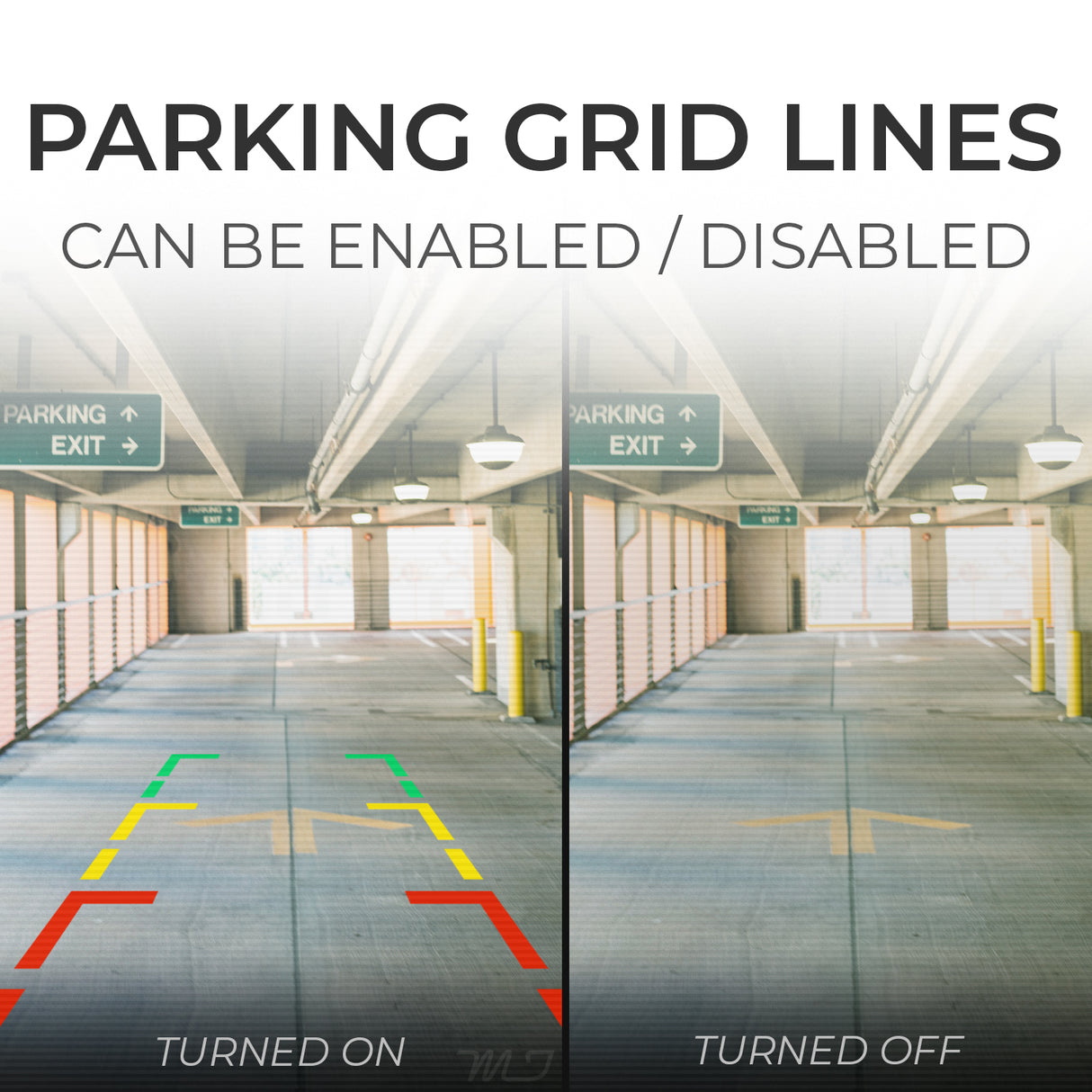

Parking Grid Lines: Included with option to disable
-Before purchasing check the back of your Monitor/Screen that you have a Yellow RCA input for easy installation.
-Installation is still possible without the Yellow RCA, however it is much more difficult and will require a professional to splice in the Video In signal.
BACKED BY A 3 YEAR NO QUESTIONS ASKED WARRANTY!!!
